Parameterizing the Mobile Panel
5.13 Configuring network operation
Mobile Panels 2nd Generation
Operating Instructions, 09/2018, A5E33876626-AC
135

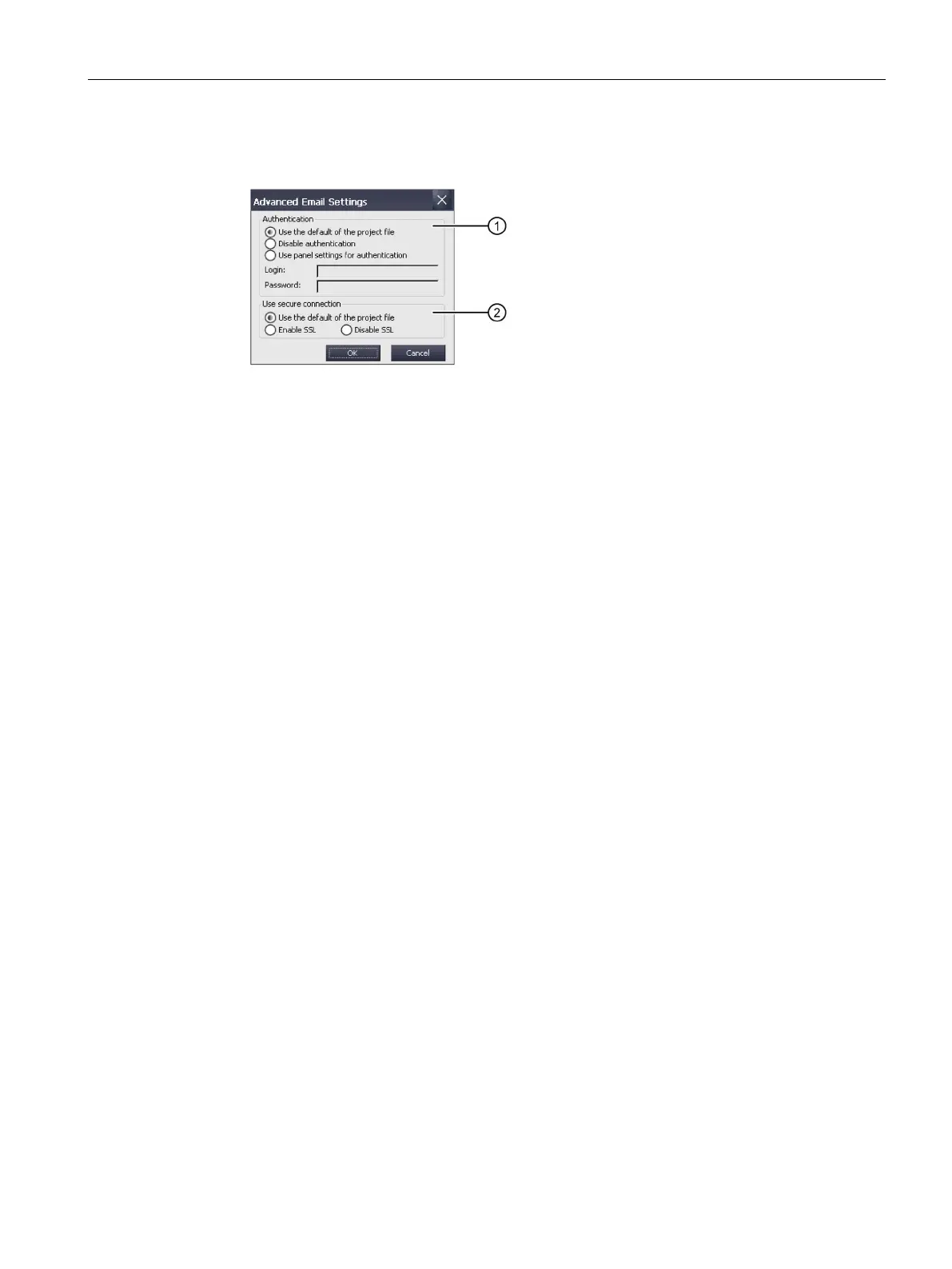

6. If you want to make further settings for sending e-mails over an SMTP server, press the
"Advanced" button. The following dialog appears:
①
Options for authentication on the SMTP server
②
Encryption options
7. Specify an option for authentication on the SMTP server.
– Select the "Use the default of …" option if you want to use authentication data
specified in the project.
– If you use an SMTP server that does not require authentication, select the
"Disable authentification" option.
– Select the "Use panel settings for authentification" option if you want to use the
authentication data specified in the settings of the HMI device instead of those in the
project. Enter the user name and password.
8. Enter a secure connection.
– Select the "Use the default of the project file" option if you want to use the secure
connection of the project.
– Select the "Enable SSL" option if you want to enable SSL.
– Select the "Disable SSL" option if you want to disable SSL.
9. Confirm your entries with "OK".
The dialog closes.
10. Close the "WinCC Internet Settings" dialog with "OK".
The e-mail settings have been changed.
