Parameterizing the Mobile Panel
5.15 Functions for service and commissioning
Mobile Panels 2nd Generation
148 Operating Instructions, 09/2018, A5E33876626-AC

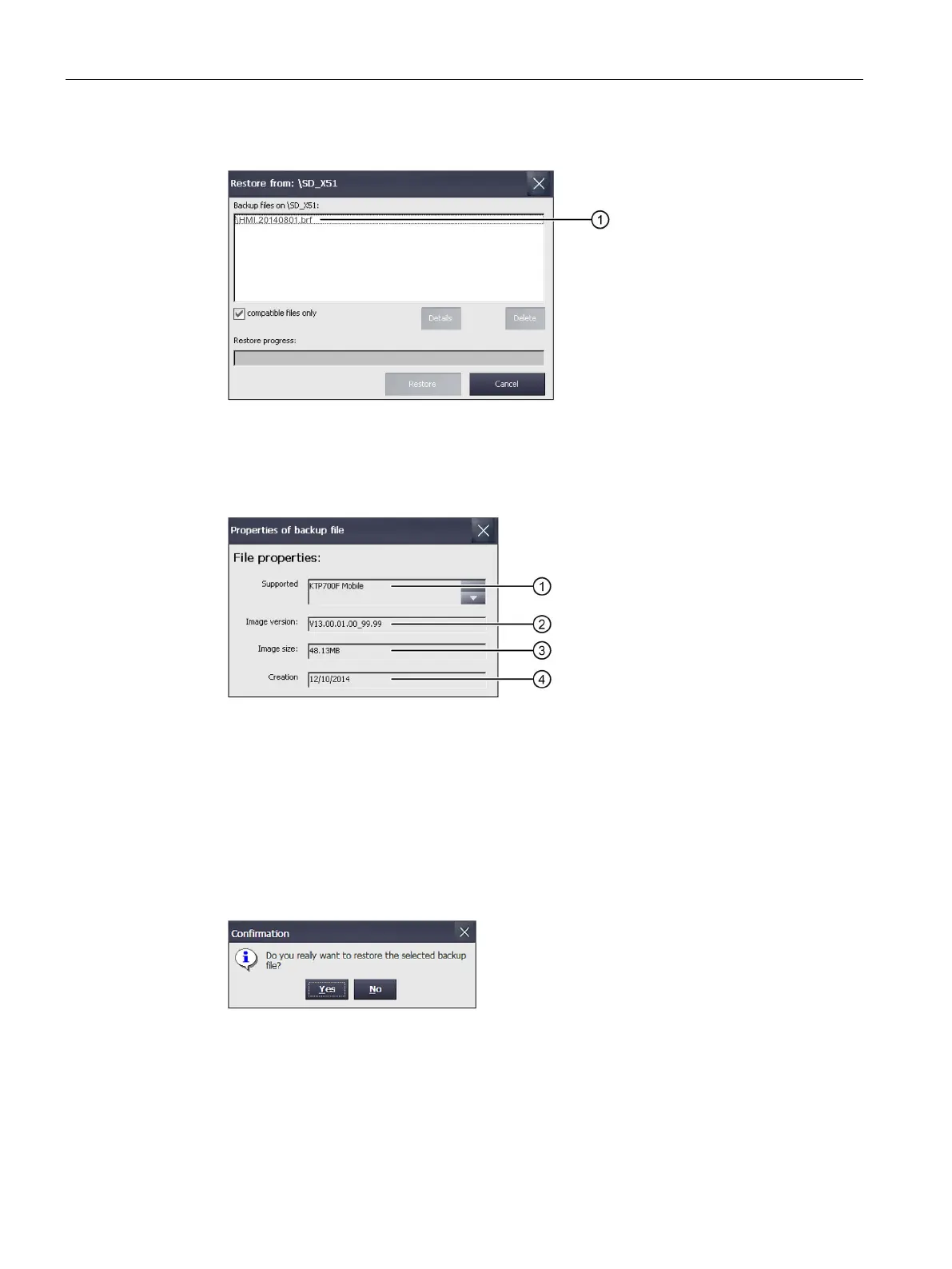

6. Press the "Next" button. The following dialog is displayed.
①
Backup file
7. Select the required file in the "Backup files on" group.
8. If you need information about the selected file, press the "Details" button. The following
dialog appears:
①
Supported HMI devices
②
Image of the HMI device
③
Size of the selected file
④
Creation date of the backup file
9. If you want to delete the selected file, press the "Delete" button. The "Delete confirmation"
dialog is displayed.
The file is deleted when you press the "OK" button.
10. To restore the data from the selected file, press the "Restore" button. The following dialog
appears:
11. Press the "Yes" button to restore the data.
The "Transfer" dialog appears. A progress bar shows the status of the restore process.
When the restore operation is complete, the "Restore operation successfully completed."
message is displayed. The HMI device then restarts and remains in transfer mode.
12. Remove the storage medium, if necessary.
