3.4 Attaching the KTP Mobile wall-mounting bracket
Mobile Panels 2nd Generation
Operating Instructions, 09/2018, A5E33876626-AC
49
Clearance
Consider the space required for the connecting cable used and the height that the HMI
device extends up and over the wall-mounting bracket.

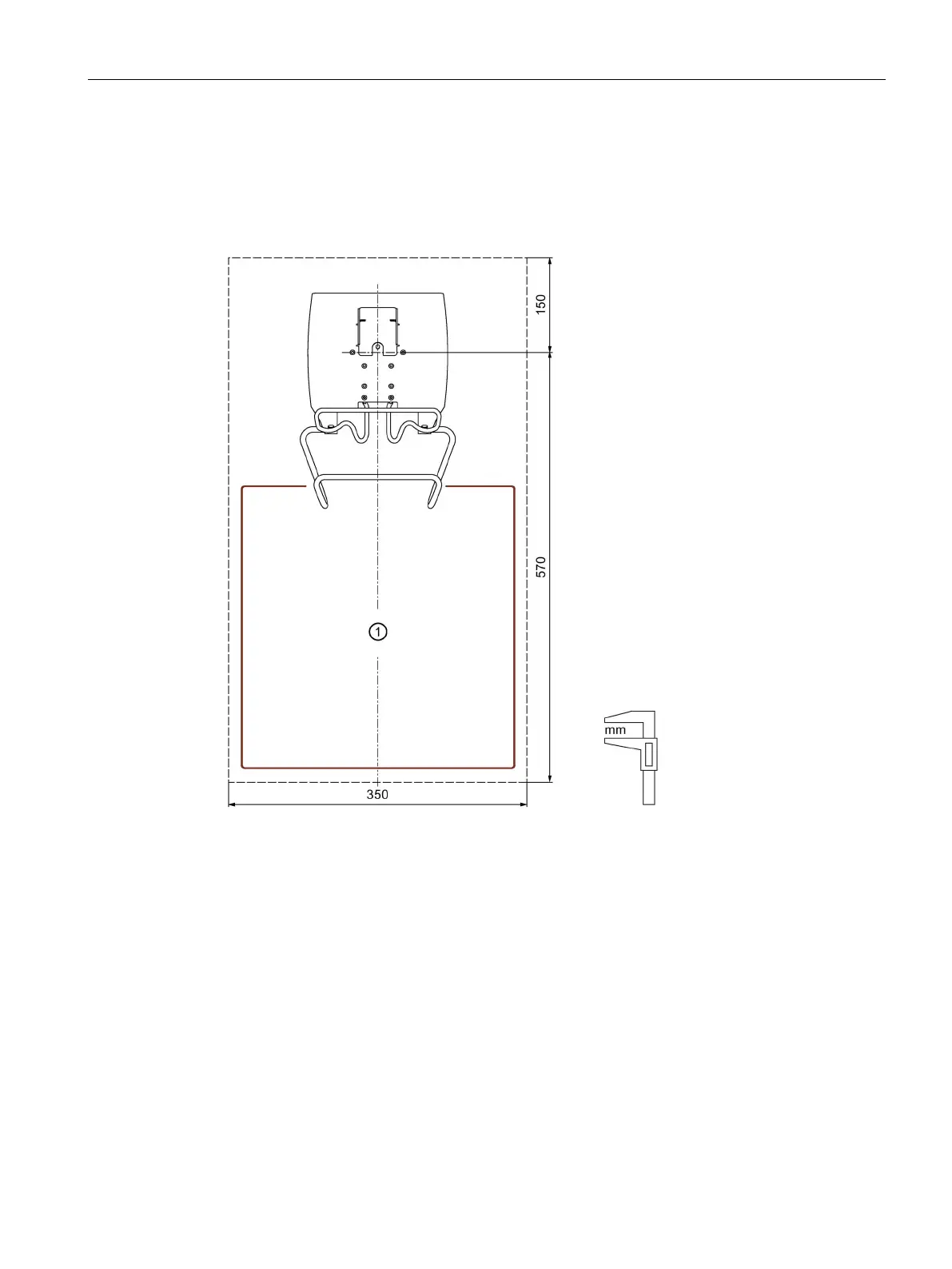

The figure below shows the minimum clearance required around the wall bracket.
①
Space requirements for connecting cable
