Installing system components
3.5 Connecting the Mobile Panel
Mobile Panels 2nd Generation
52 Operating Instructions, 09/2018, A5E33876626-AC
Note
Use only a SIMATIC HMI Memory Card
Use only a SIMATIC HMI Memory Card with the Mobile Panel.
Unsuitable tools may damage the Mobile Panel
To avoid damaging the motherboard of the Mobile Panel, insert or remove the SD memory
card with an appropriate tool made of plastic.
● The Mobile Panel is deenergized.
● The terminal compartment is open.
● The connection cable is not attached.
● You have taken precautions to protect your device, see section
"Connection information (Page 51)".
● A suitable tool made of plastic

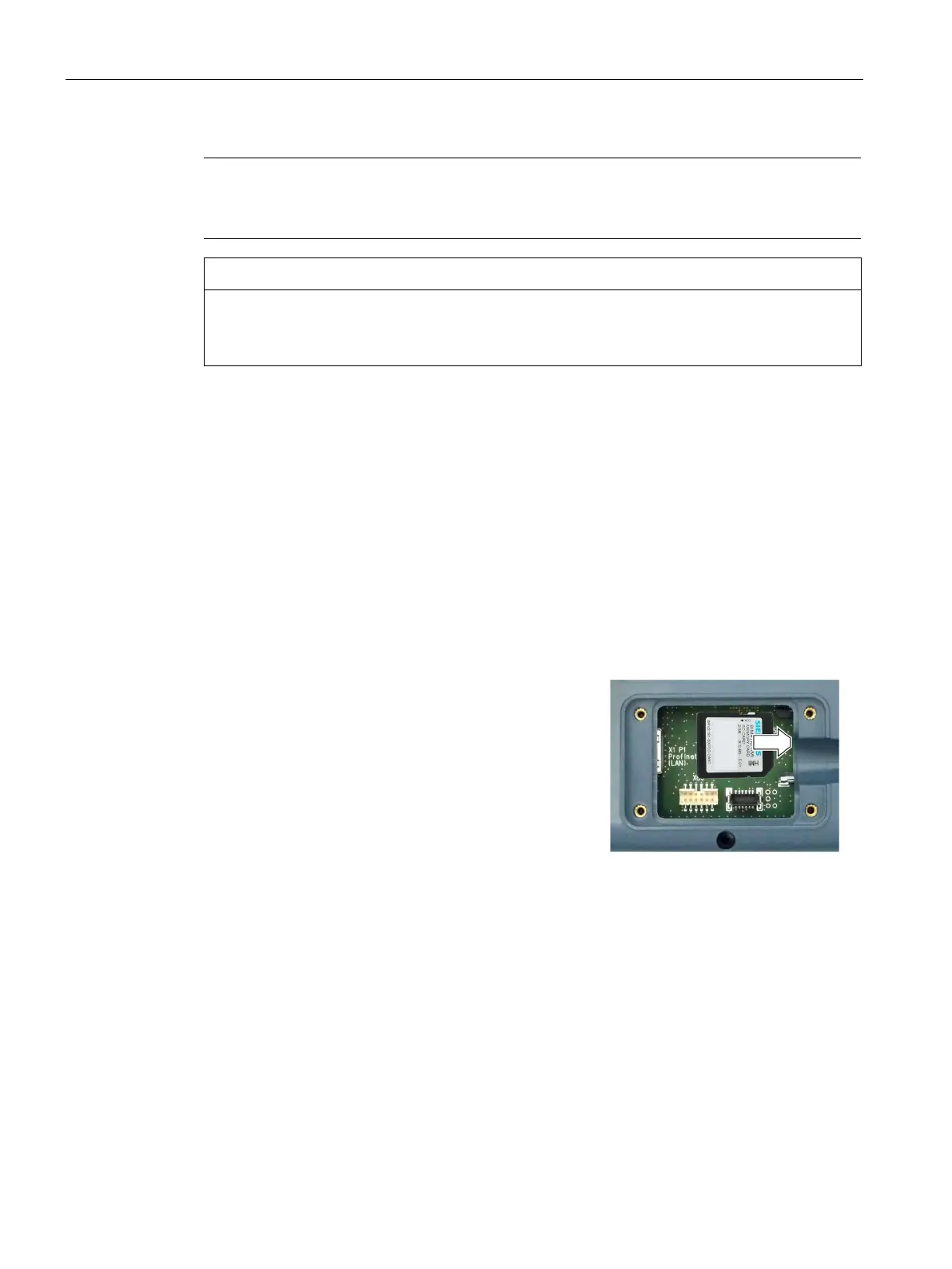

Turn the storage medium so that the contacts are
pointing towards the motherboard.
Push the storage medium into the slot with the
suitable tool.
Replacing the Mobile Panel (Page 215)
