Installing system components
3.6 Connecting the connection box
Mobile Panels 2nd Generation
Operating Instructions, 09/2018, A5E33876626-AC
69

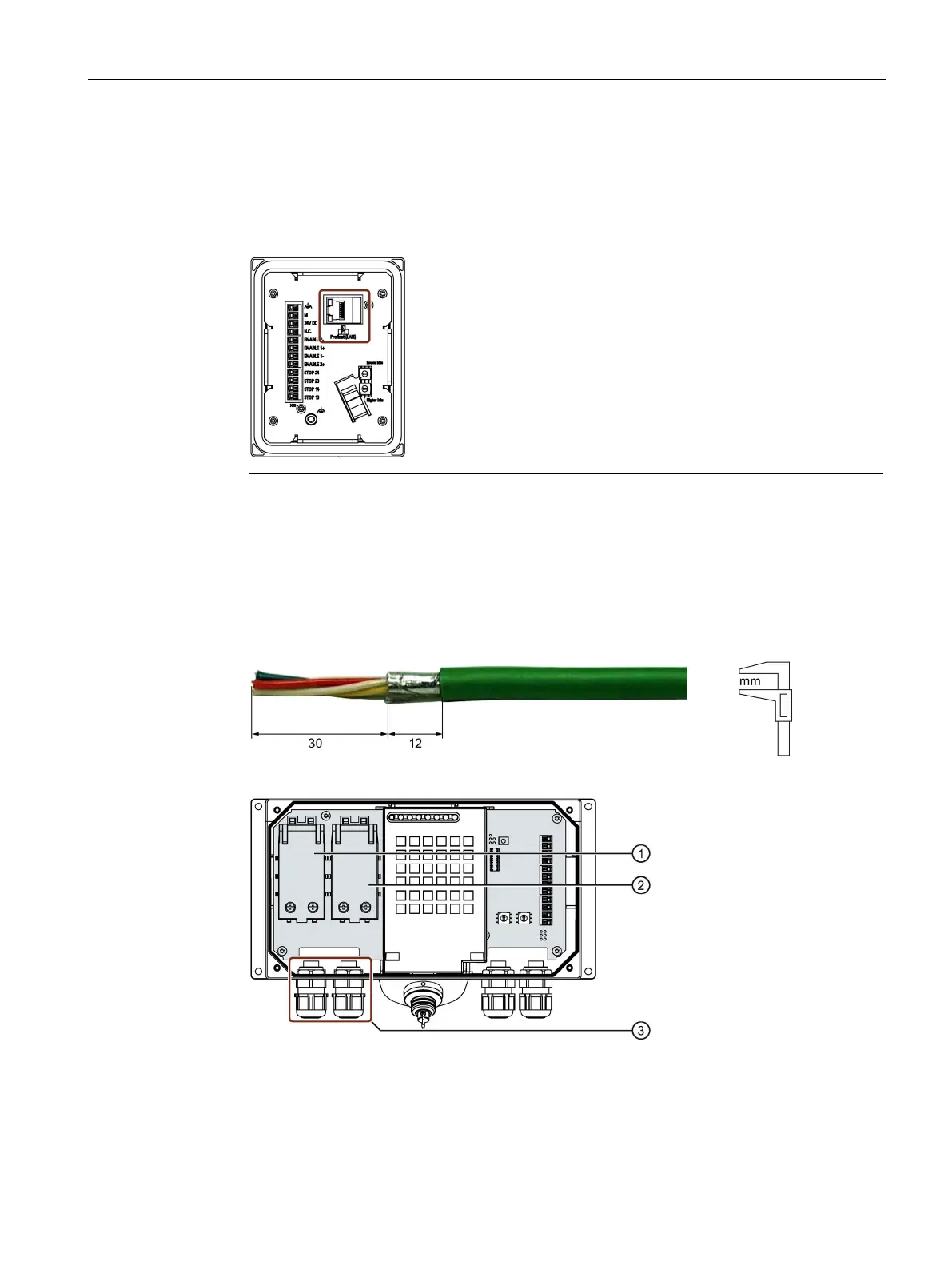

Procedure
Connection box compact
1. Connect the RJ45 connector of the Ethernet cable with the RJ45 socket marked in the
figure below.
Note
LEDs on the RJ45 socket not active
The two LEDs at the RJ45 socket of the connection box compact are not supported by
the hardware and do
not light up during operation.
Connection boxes standard and advanced
1. Strip the insulation on the Ethernet cable as shown in the figure below.
2. Open fast connector 1.
①
Fast connector 1
②
Fast connector 2
③
Screw gland
