Parameterizing the Mobile Panel
5.6 Control Panel
Mobile Panels 2nd Generation
94 Operating Instructions, 09/2018, A5E33876626-AC
Alphanumerical screen keyboard

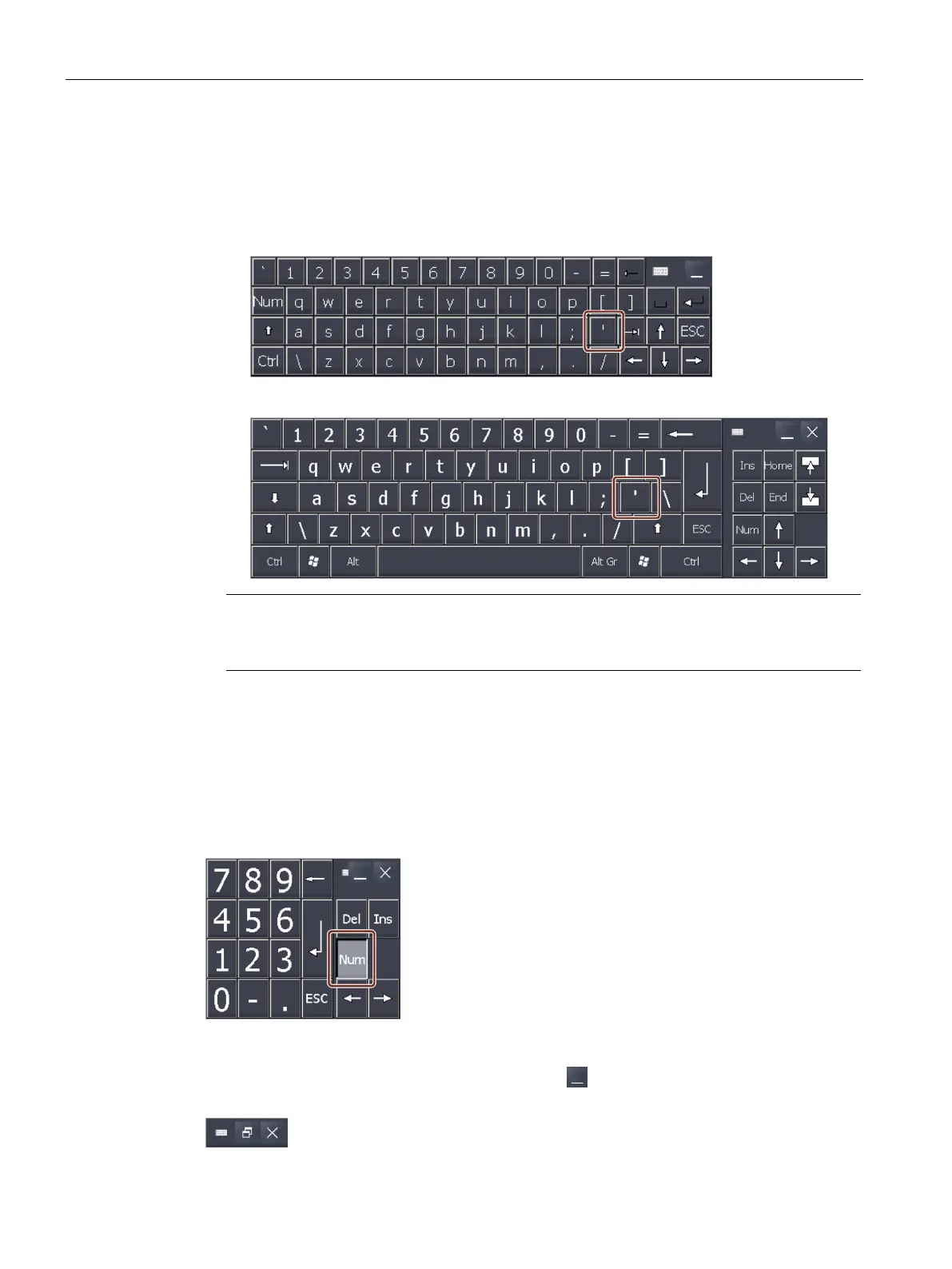

The alphanumerical screen keyboard has the following levels.
● Normal level
– HMI device with 4" display
– HMI device with 7" display diagonal or larger
Note
The ' character on the keyboard is only displayed when followed by a space. If the '
cha
racter is followed by a letter, then the result will be an accent, such as "á".
● Shift level
The shift level has uppercase letters and other special characters.
The alphanumeric keyboard is always displayed after a restart.
Numerical screen keyboard
By pressing the "Num" button, you can switch between the numerical and alphanumerical
screen keyboard.
Reduced screen keyboard
You activate the reduced screen keyboard with the key. The minimized screen keyboard
is displayed as follows:

Siemens SIMATIC HMI series Specifications

General

Series	SIMATIC HMI
Category	Control Panel
Display Type	TFT LCD
Touch Screen	Yes (resistive or capacitive, depending on model)
Processor	Varies by model (e.g., ARM-based processors)
Storage	Varies by model (e.g., Flash memory, microSD card slot)
Communication Interfaces	Ethernet, USB
Protection Class	IP65 (front panel), depending on model
Operating Temperature	0 to 50°C, -20 to 60°C
Power Supply	24 V DC
Memory	128 MB, 256 MB
