Parameterizing the Mobile Panel
5.11 Configuring network operation
TP1000F Mobile RO
114 Operating Instructions, 08/2017, A5E39831415-AA

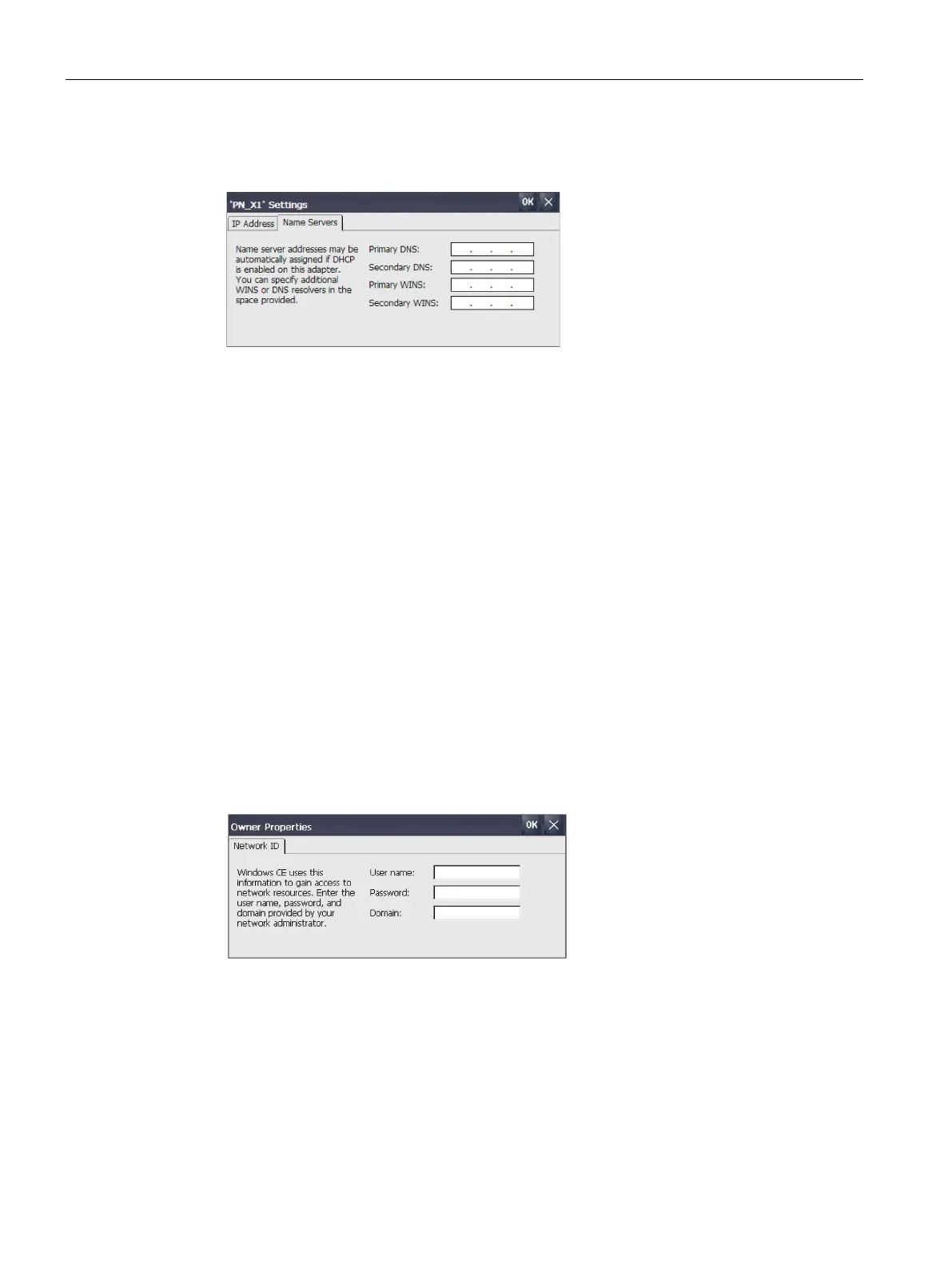

5. If a name server is used in the local network, open the "Name Servers" tab.
The following dialog appears:
6. Enter the respective addresses in the text boxes.
7. Confirm your entries.
The dialog closes.
8. Close the "Network&Dial-Up Connections" window.
The Control Panel is displayed.
The HMI device is addressed in the local network.
Specifying the logon data
Use this function to enter the information for logging onto local networks.
● The Control Panel is open.
● Your system administrator has provided you with the necessary information.
1. Open the "Network ID" dialog using the "Network ID" icon.
2. Enter your user name in the "User name" text box.
3. Enter your password in the "Password" text box.
4. Enter the name of your assigned domain in the "Domain" text box.
5. Confirm your entries with "OK".
The dialog closes.
The logon data has now been set.
