Siemens SIMATIC HMI TP1000F Mobile RO - Wiring of Safety-Related Operator Controls

Technical specifications
9.10 Interfaces of the connection box standard and connection box advanced
TP1000F Mobile RO
180 Operating Instructions, 08/2017, A5E39831415-AA
9.10.4
Wiring of safety-related operator controls
Emergency stop/stop button
Connection box standard

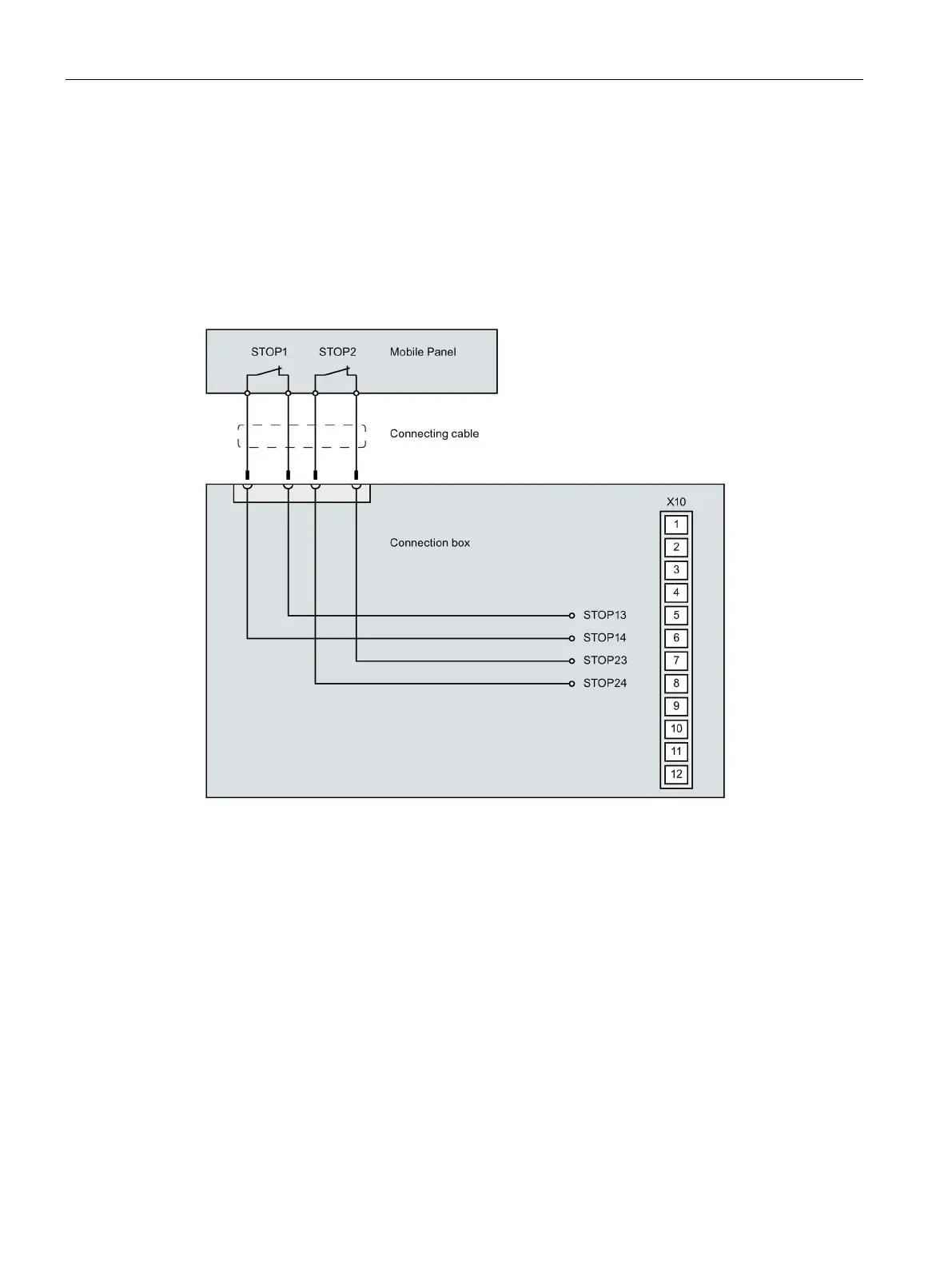

The figure below shows the wiring of the emergency stop/stop button in the connection box
standard.
