Siemens SIMATIC HMI TP1000F Mobile RO - Page 181

Technical specifications
9.10 Interfaces of the connection box standard and connection box advanced
TP1000F Mobile RO
Operating Instructions, 08/2017, A5E39831415-AA
181
Connection box advanced

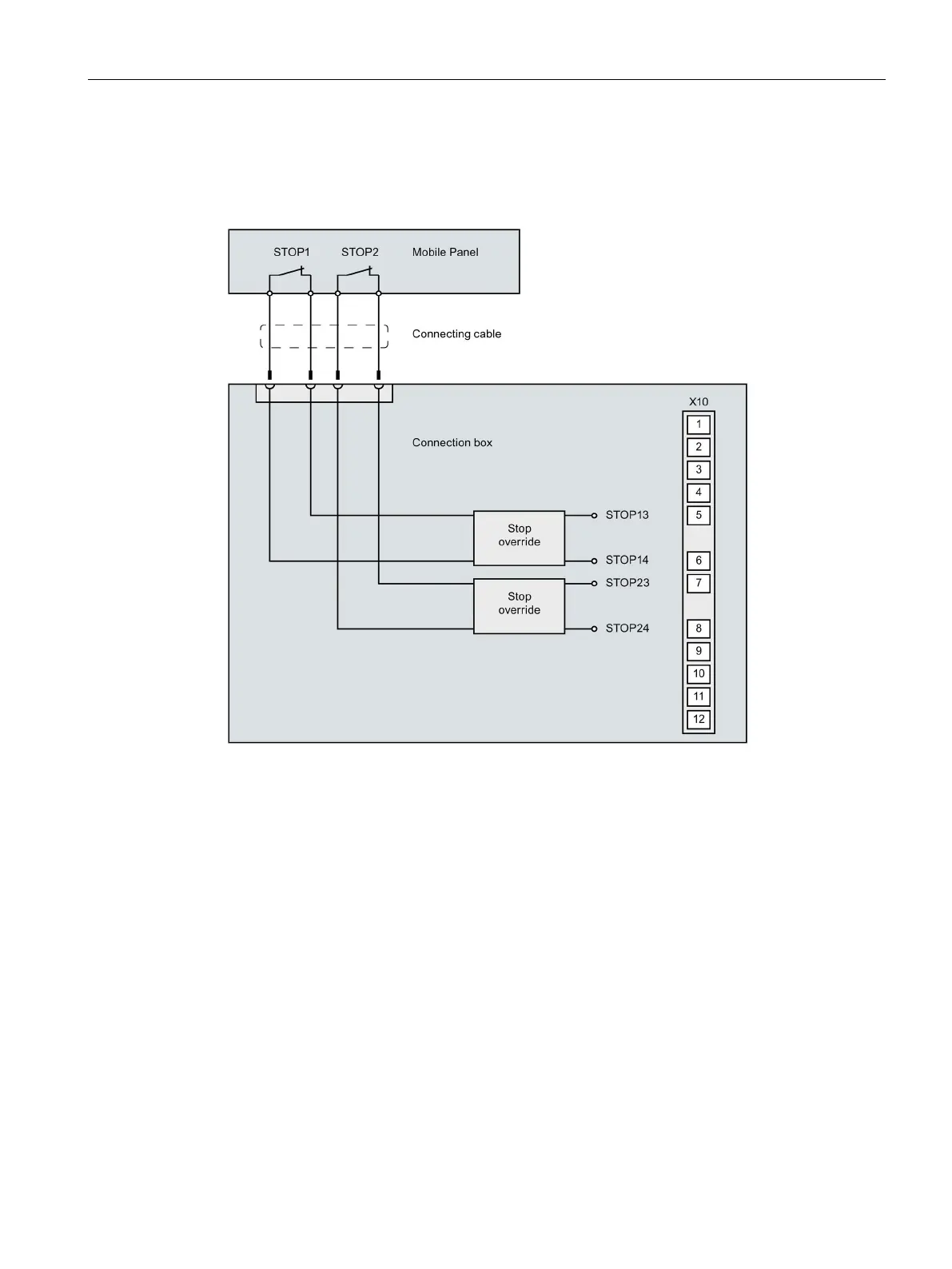

The figure below shows the wiring of the emergency stop/stop button in the connection box
advanced.
The stop bypass only works if the connection box is supplied with power.
