Technical specifications

9.9 Connection box compact interfaces

TP1000F Mobile RO

Operating Instructions, 08/2017, A5E39831415-AA

177

Enabling button

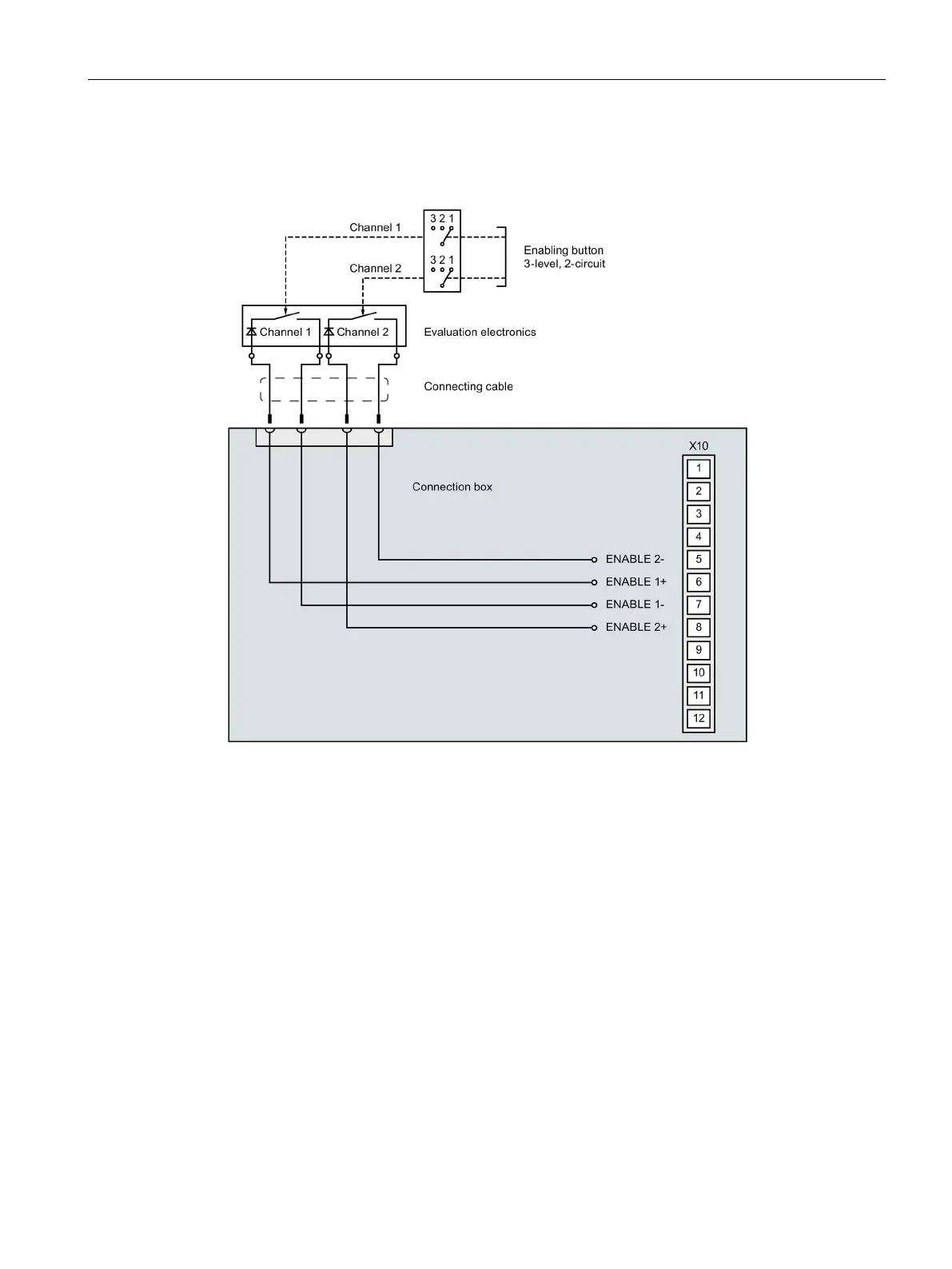

The figure below shows the wiring of the enabling button in the connection box compact.
