Technical specifications
9.9 Connection box compact interfaces
TP1000F Mobile RO
Operating Instructions, 08/2017, A5E39831415-AA
175
9.9
Connection box compact interfaces
9.9.1
Position of the interfaces

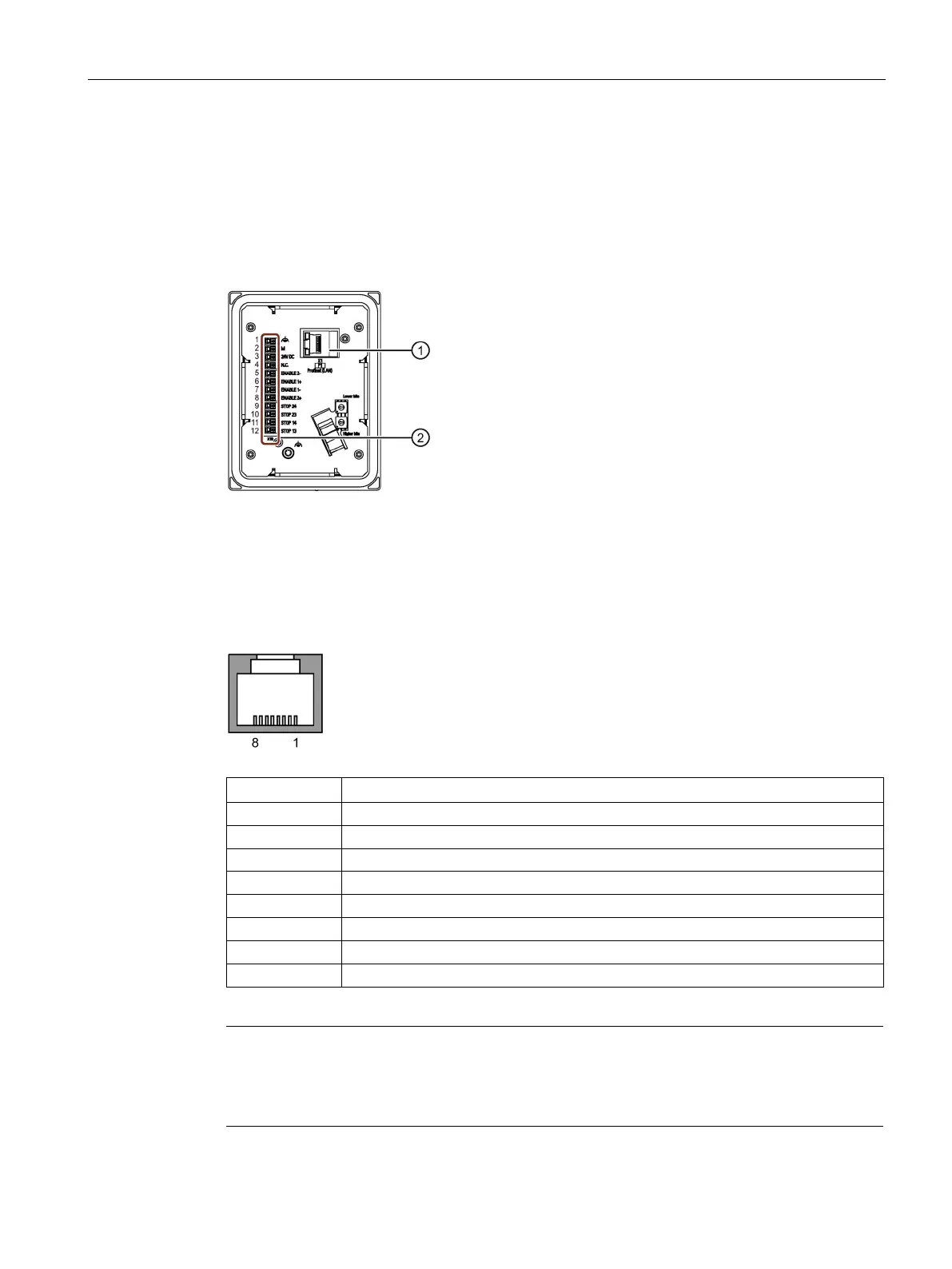

The figure below shows the interfaces of the connection box compact with relevance for
commissioning.
①
Interface X1
②
Interface X10
9.9.2
Interface X1
RJ45 socket, 8-pin
Contact
Assignment
1
TD+
2
TD–
3
RD+
4
Not connected
5 Not connected
6
RD–
7
Not connected
8
Not connected
Note
LEDs on the RJ45 socket not active
The two LEDs at the RJ45 socket of the connection box compact are not supported by the
hardware and do not light up during operation.
