9.9 Connection box compact interfaces
TP1000F Mobile RO
176 Operating Instructions, 08/2017, A5E39831415-AA
9.9.3
Plug-in terminal strip X10
Plug-in terminal strip, 12-pin
Contact
Assignment
Associated circuits and reference information
1
Functional grounding
Ground and power supply
See "Connecting the functional grounding and power supply
to the connection box (Page 55)."
2 M
3
P24
4 Not connected
5
ENABLE2–
Enabling button
See section "Operating the enabling button (Page 67)" and
wiring information in the following section
6
ENABLE1+
7
ENABLE1–
8
ENABLE2+
9
STOP 24
Emergency stop / stop button
See section "Pressing the emergency stop / stop button
(Page 68)" and wiring information in the following section
10
STOP 23
11
STOP 14
12
STOP 13
9.9.4
Wiring of safety-related operator controls
Emergency stop/stop button

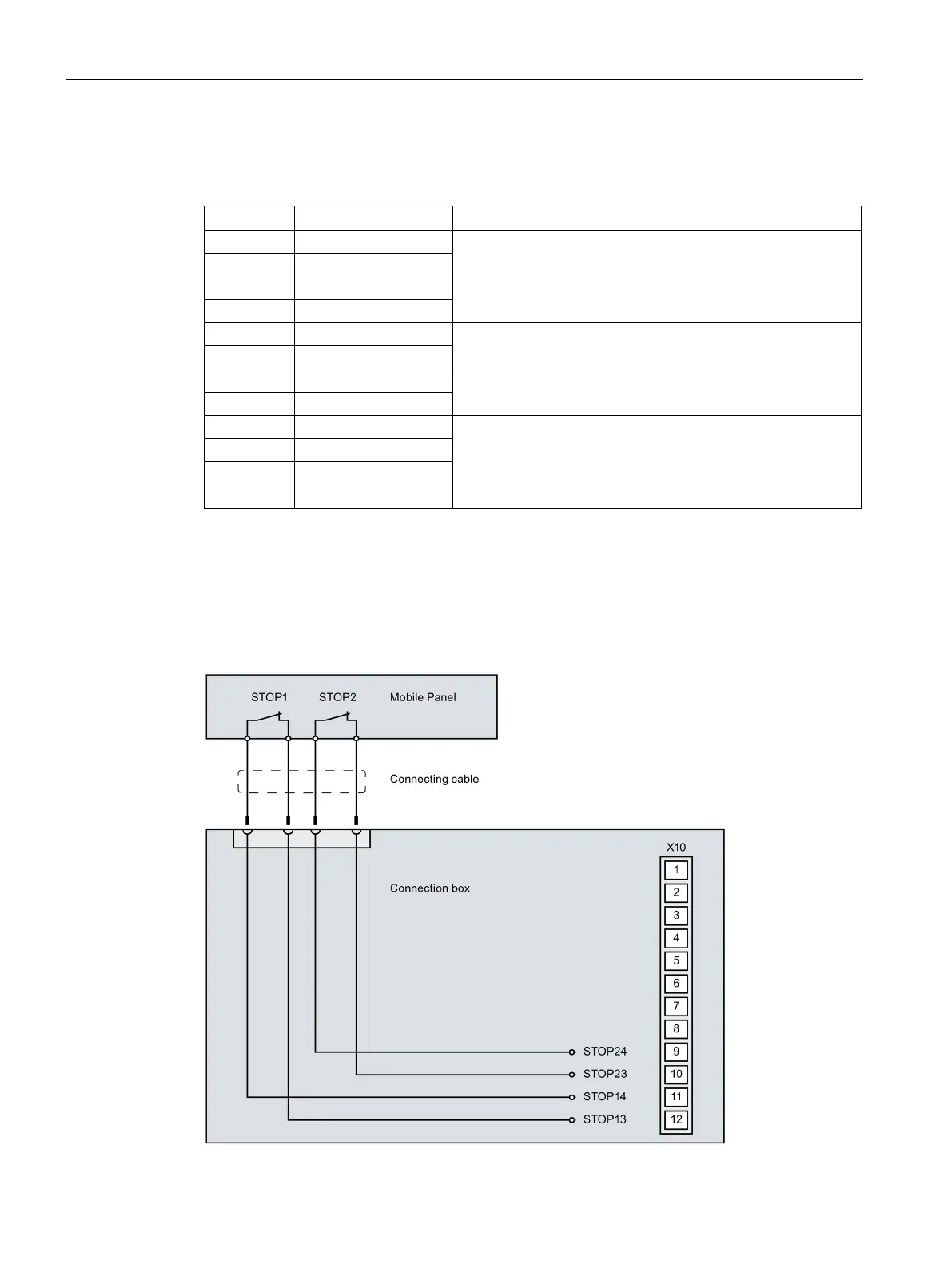

The figure below shows the wiring of the emergency stop/stop button in the connection box
compact.
