3.4 Attaching the KTP Mobile wall-mounting bracket
TP1000F Mobile RO
Operating Instructions, 08/2017, A5E39831415-AA
39
3.4
Attaching the KTP Mobile wall-mounting bracket
3.4.1
Assembling the KTP Mobile wall-mounting bracket
The scope of supply for the wall-mounting bracket includes the following components:
● Wall-mounting bracket
● Safety bar for the HMI device
● 2 screws for fastening the safety bar
● Holding bracket for the connecting cable
Requirement
● 1 T10 screwdriver
Procedure
1.

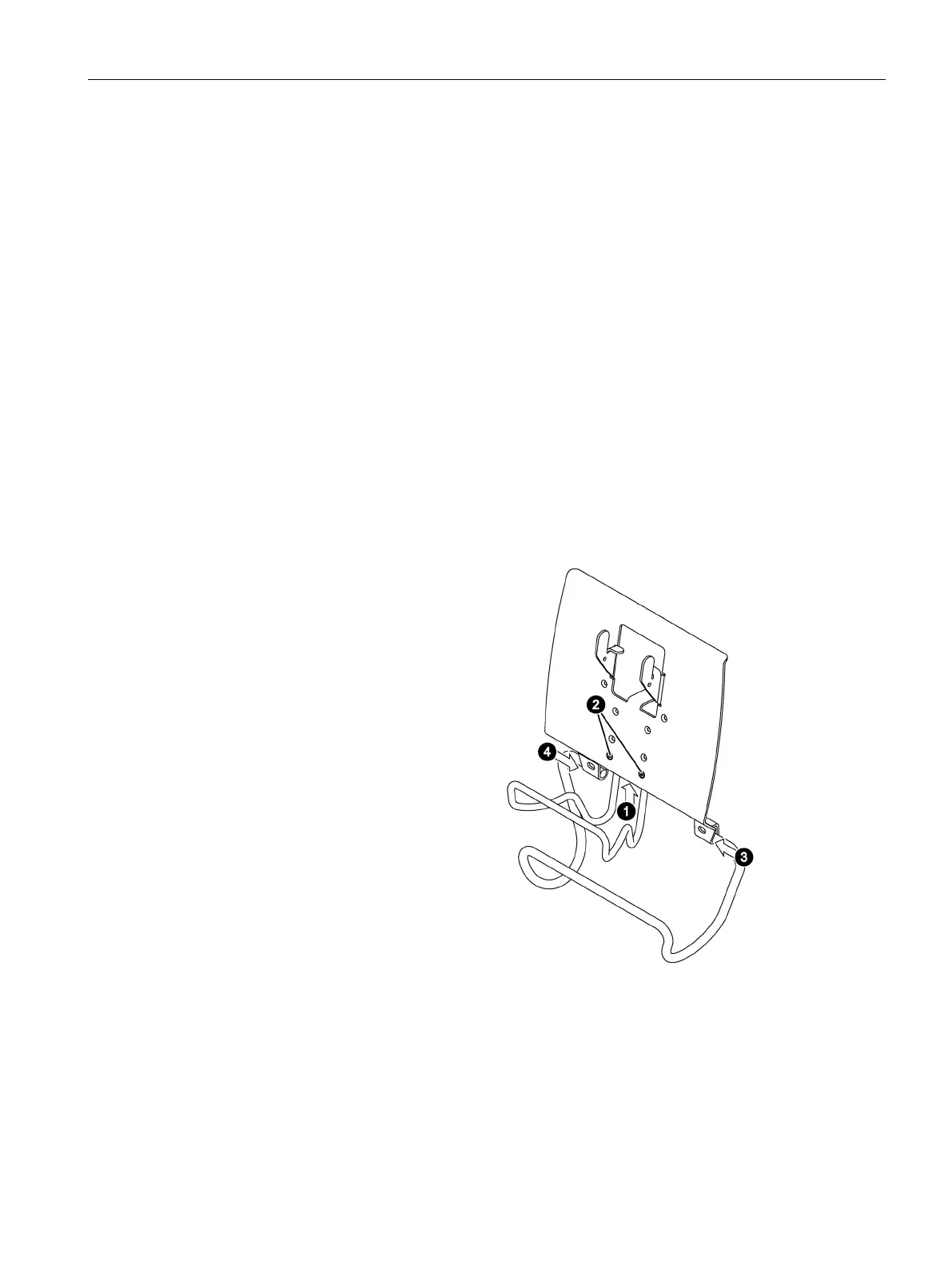

Position the safety bar as shown
in
the figure.
2.
Fasten the safety bar screws with
the T10 screwdriver. The permitted
torque is 0.8 Nm.
3.
Slide the holding bracket for the
connecting cable from one side
into the mounting flange.
4.
Slide the holding bracket for the
connecting c
able from the other
side into the mounting flange until
the holding bracket is aligned with
the center of the wall
-mounting
bracket.
If you fasten the wall-mounting bracket to the mounting surface as described in the following
section, the holding bracket is secured against lateral movement.
