9.8 Interface description for Mobile Panel
TP1000F Mobile RO
174 Operating Instructions, 08/2017, A5E39831415-AA
9.8
Interface description for Mobile Panel
9.8.1

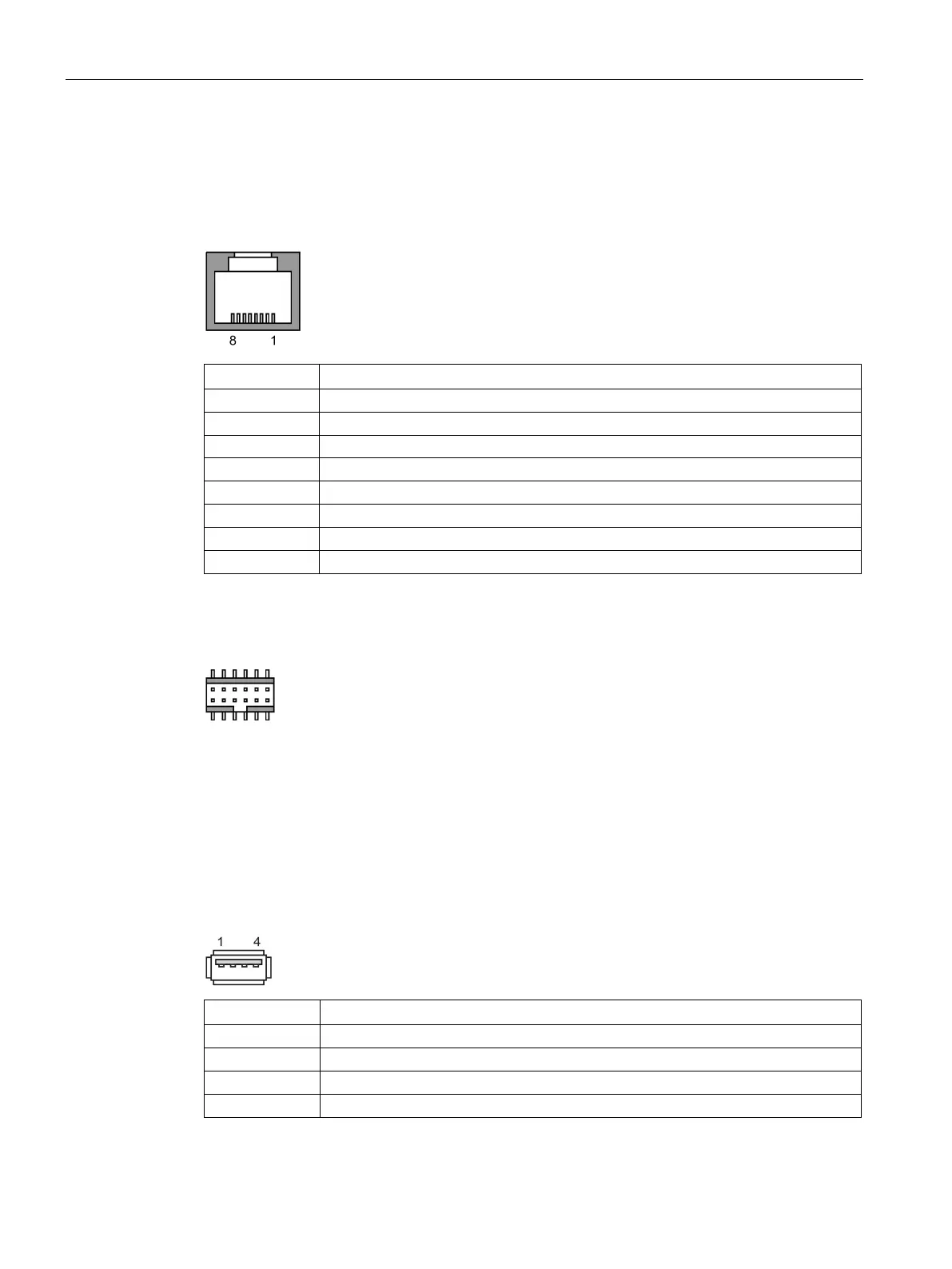

Internal interface X1 P1
RJ45 plug connector, socket, 8-pin
Contact
Assignment
1
TD+
2 TD–
3
RD+
4 Not connected
5
Not connected
6
RD–
7
Not connected
8
Not connected
9.8.2
Internal interface X80
Pin connector, 12-pole
The pin connector has connections for:
● Power supply
● STOP circle
● Enable circuit
● Signals for transmitting the box ID
9.8.3
External interface X61
USB, type A, socket
Contact
Assignment
1
+5 V DC, out, max. 500 mA
2
USB-DN
3
USB-DP
4
GND
