Parameterizing the Mobile Panel
5.6 Configuring operation
TP1000F Mobile RO
Operating Instructions, 08/2017, A5E39831415-AA
85
5.6.5
Calibrating the touch screen
Parallax may occur on the touch screen depending on the mounting position and
perspective. To prevent any resulting operating errors, you may need to calibrate the touch
screen.
Requirement
● A touch pen
● The Control Panel is open.
Procedure

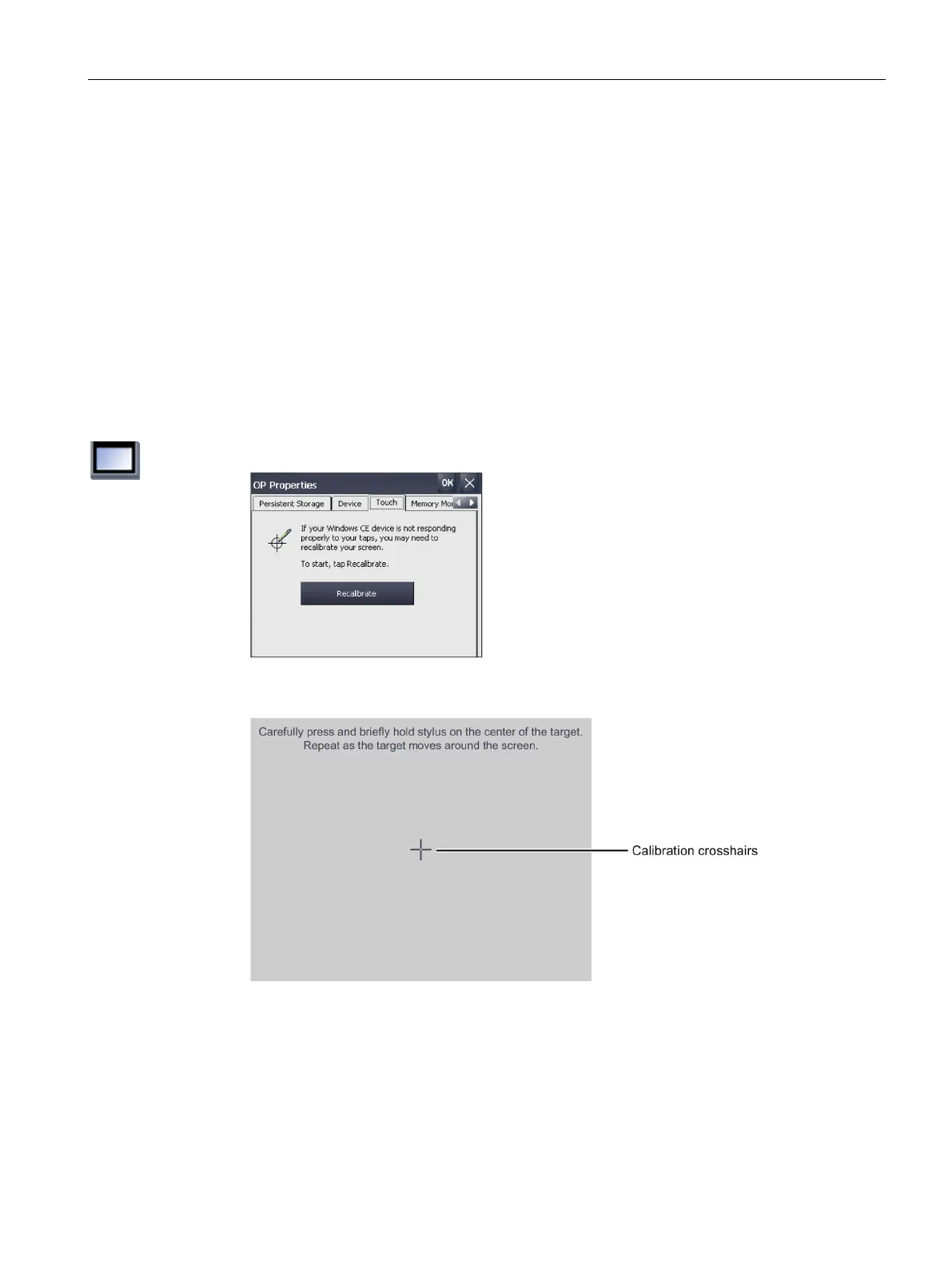

1. Open the ""OP Properties"" dialog using the ""OP"" icon.
2. Change to the "Touch" tab.
3. Press the "Recalibrate" button.
The following dialog is displayed:
