Siemens SIMATIC HMI TP1000F Mobile RO User Manual

Installing system components
3.6 Connecting the connection box
TP1000F Mobile RO
Operating Instructions, 08/2017, A5E39831415-AA
63
3.6.8
Secure cables and seal screw glands
Once all cables are connected to the connection box, the following final steps should be
carried out:
● Connection box compact: Strain relief for cables on the back of the connection box
● Connection box standard and connection box advanced: Seal and secure screw glands
Requirement
For the connection box compact:
● 1 cable tie
● 1 diagonal cutter
For connection box standard and connection box advanced:
● The connection box is closed.
Procedure
Connection box compact
•

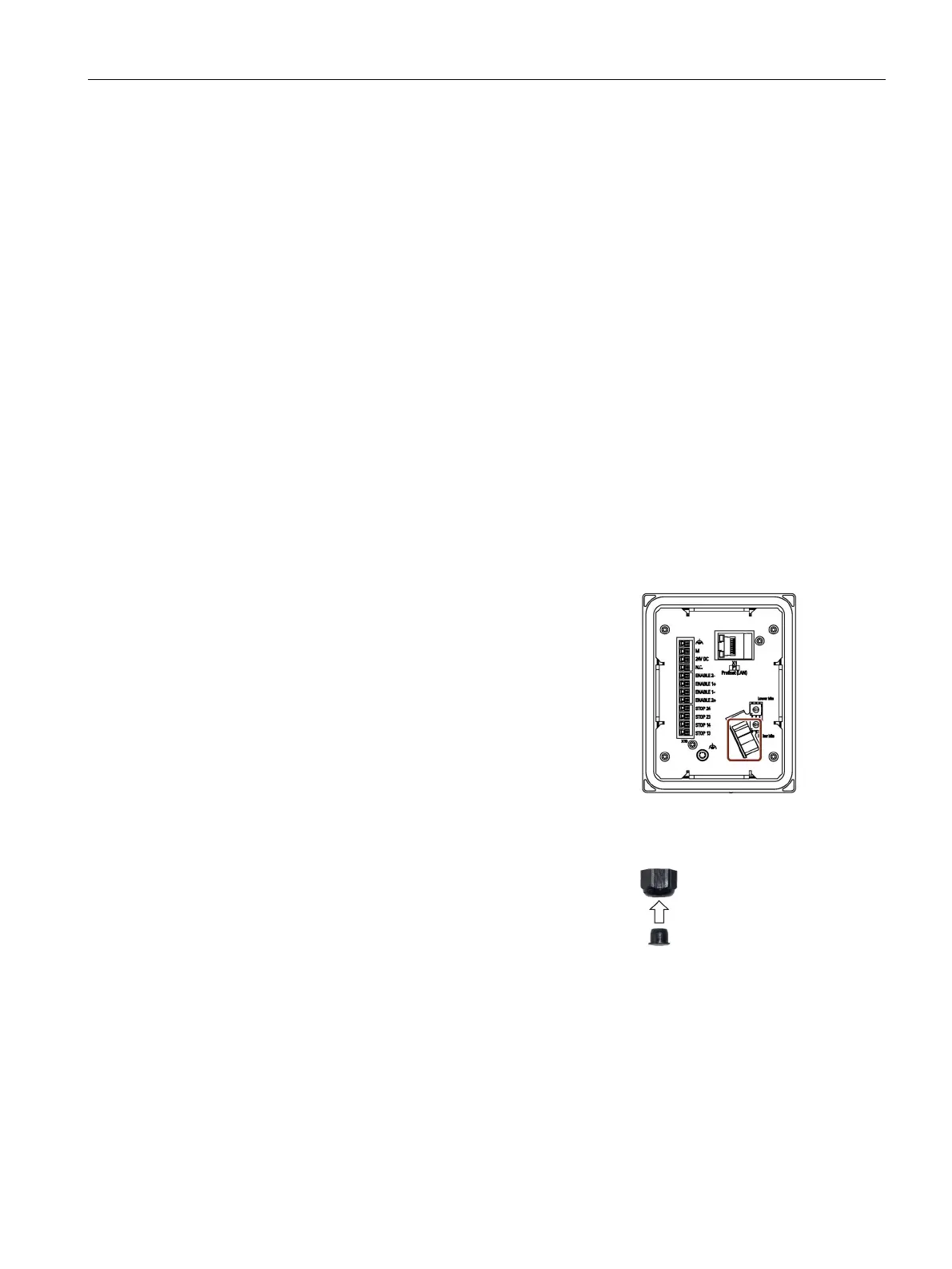

Secure all connected cables with a cable
tie on the fastening element, which is
labeled in the figure on the right.
Connection box standard and connection box advanced
1.
Check that caps are covering the screw glands not in
use.
2.
If a cap is missing, replace it.
3.
Tighten the screw cap.
This will ensure IP65 degree of protection for the connection box standard or the connection
box advanced.
