Parameterizing the Mobile Panel
5.7 General settings
TP1000F Mobile RO
Operating Instructions, 08/2017, A5E39831415-AA
95
3. Select the required data channel in the "Transfer channel" group.
– PN/IE
Transfer is over PROFINET or Industrial Ethernet. This means an HMI device can
communicate over a switch or over a router in the local network.
– Ethernet
4. To call up the addressing of the HMI device, press "Properties".
You can find the necessary information in "Specifying the IP address and name server
(Page 113)".
5. Confirm your entries.
The dialog closes.
The data channel for transfer is configured.
Storage management
5.7.6.1
Displaying memory distribution
This function displays the size of the flash memory and its archived data and program data
allocation.
The Control Panel is open.
1. Open the "System Properties" dialog using the "System" icon.
2. Change to the "Memory" tab.

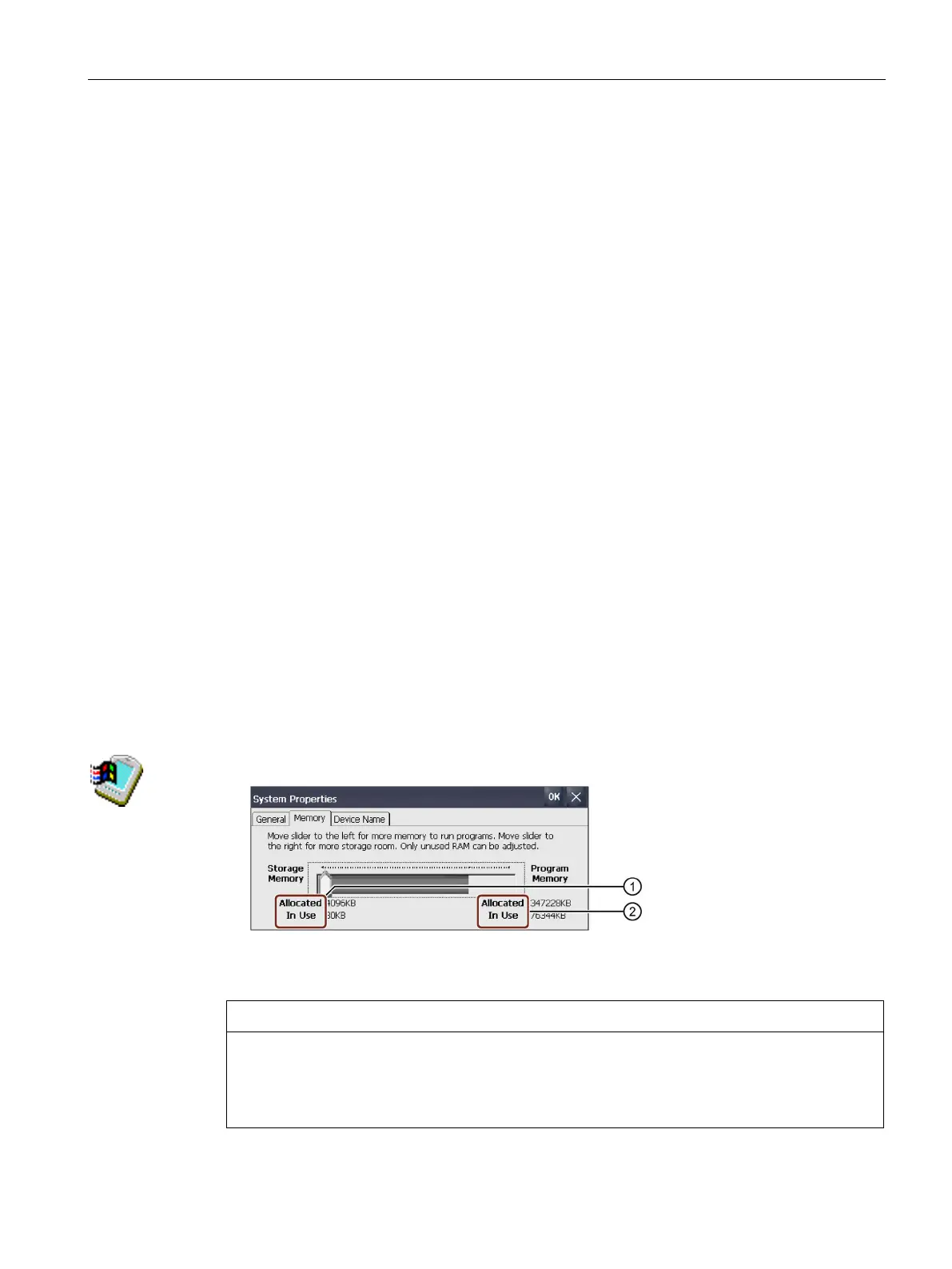

Cache memory, available and used
If you change the allocation of the memory, malfunctions may occur.
Do not change the memory allocation in the "Memory" tab unless the message "Insufficient
memory" is displayed.
