TP1000F Mobile RO
Operating Instructions, 08/2017, A5E39831415-AA
65
Handling the Mobile Panel
Holding the Mobile Panel and attaching it to the wall-mounting
bracket
Holding the HMI device

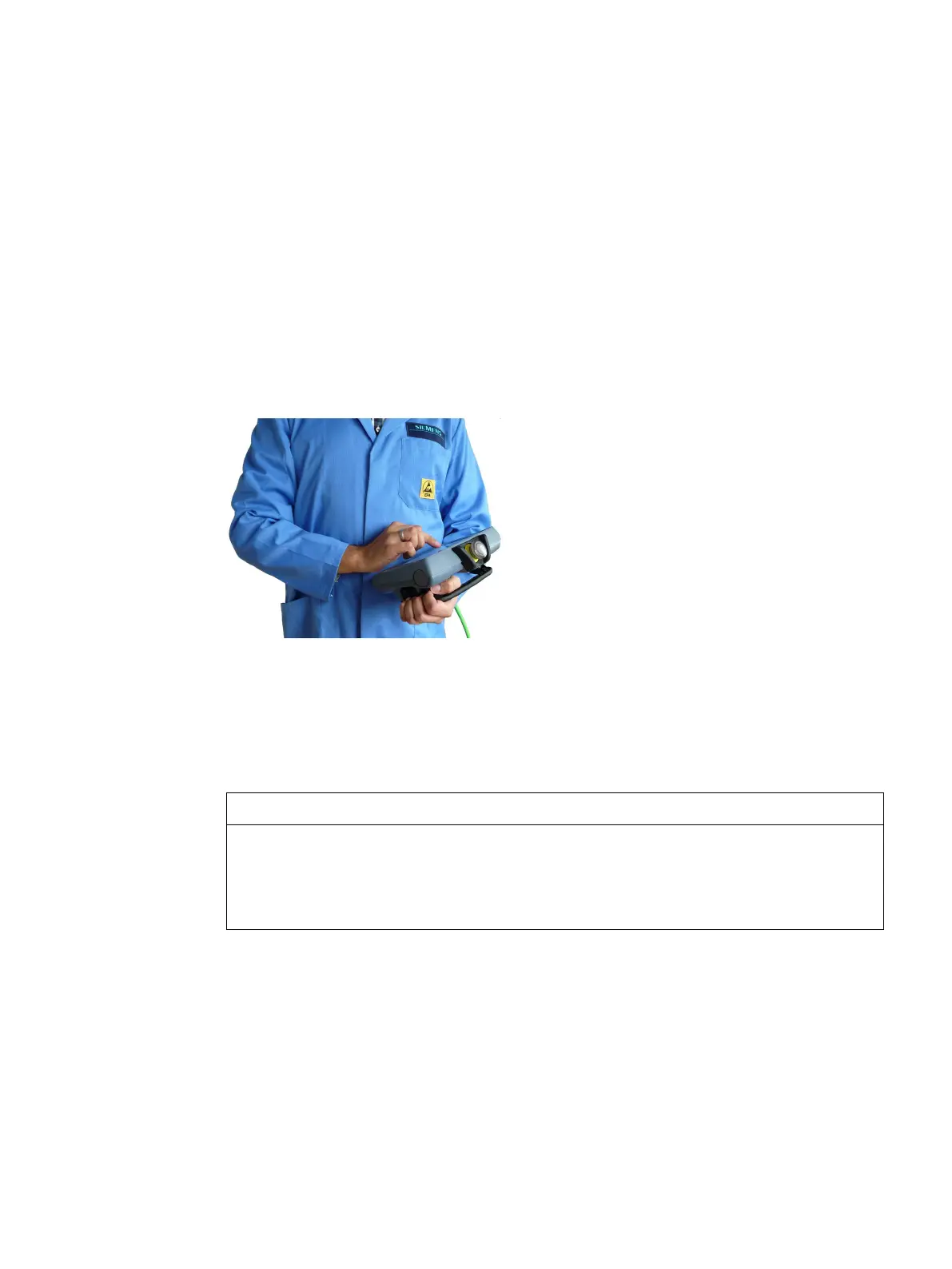

The figure below shows the device being held on the forearm.
When holding the Mobile Panel as shown, you can, for example, perform movements in the
fail-safe automation system during setup mode.
The HMI device is easy to operate when held on the forearm as shown. With your free hand,
you can reach the front of the device and the emergency stop / stop button. You can activate
the enabling button with the hand holding the HMI device. The enabling button is optimally
accessible.
Holding the HMI device during setup mode
Potentially dangerous movements can be controlled manually if setup mode is activated.
To ensure that the emergency stop / stop button and enabling button can be operated
quickly in a dangerous situation, the HMI device must be held on your forearm as shown.
If you are only entering data and are not controlling potentially dangerous movements, you
can hold the HMI device with both hands on the left and right instead of on your forearm.
