Parameterizing the Mobile Panel
5.12 Assigning a safety-related operating mode
TP1000F Mobile RO
116 Operating Instructions, 08/2017, A5E39831415-AA
● The HMI device is connected to the connection box.
● The box ID has been set as described in "Setting the box ID of the connection box
(Page 61)".

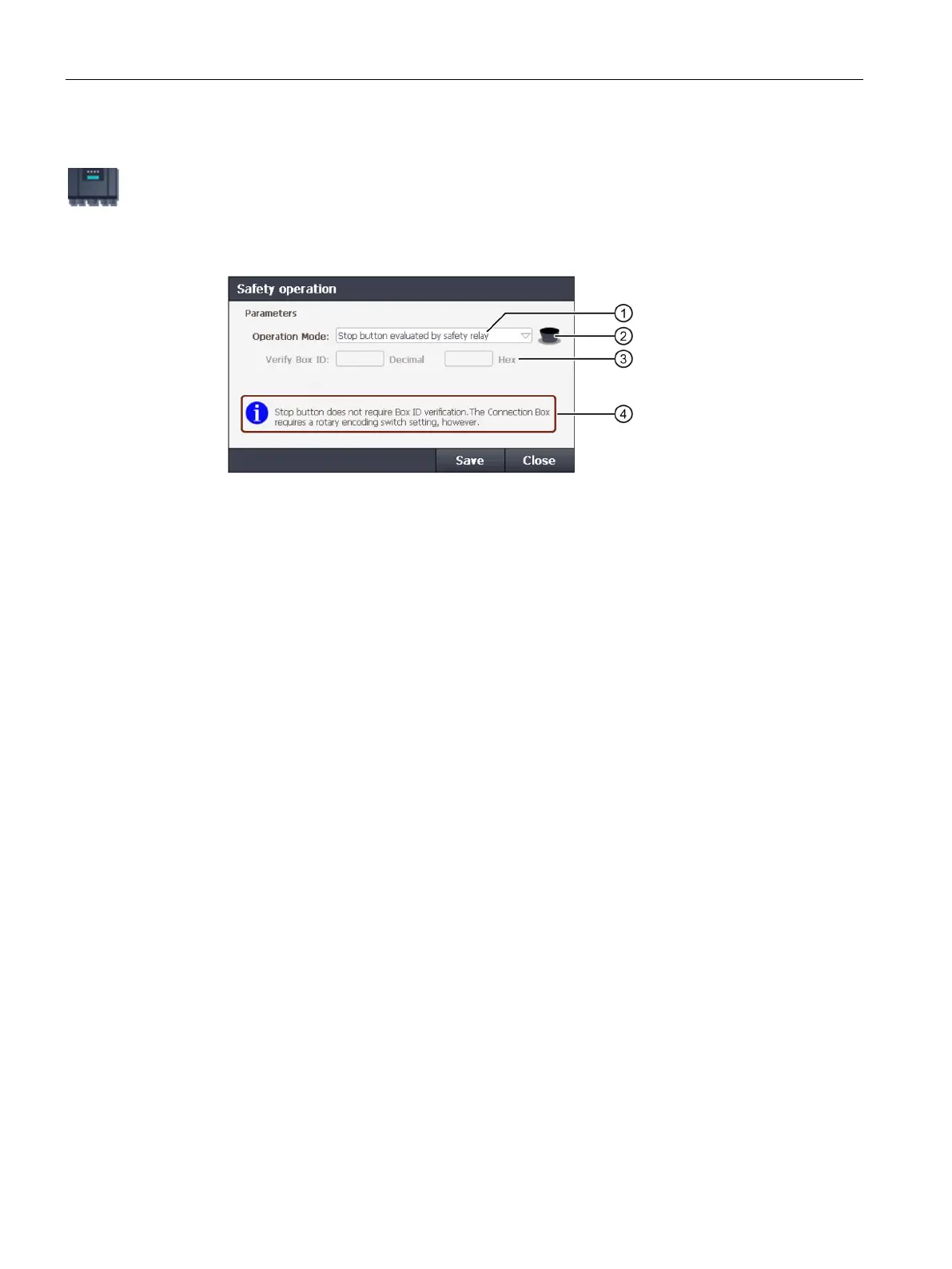

● You have opened the "Safety operation" dialog with the "Safety Operation" icon.
List of available operating modes:
• Stop button evaluated by safety relay: The emergency stop/stop button is
during
operation. If you press the emergency stop / stop button, the plant typically responds
with a
.
• E-stop button evaluated by safety relay: The emergency stop / stop button lights up
during operation when active. When you press the emergency stop / stop button, the
plant responds with an
.
• E-stop button evaluated by PROFIsafe: not supported. RemoteOperate
.
Symbol for the selected operating mode
• Gray: Stop function
• Red/yellow: Emergency stop function
Information on the operating mode selected
If the connection box has not yet been assigned an operating mode, the dialog opens
automatically after connecting and starting the Mobile Panel and the following information
is shown in the "Operation Mode" text box: "Operation Mode: Please select!"
1. Select the required operating mode from the drop-down list
①. The color of the icon ②
changes according to the operating mode selected.
2. For the "E-stop button evaluated by safety relay" operating mode:
Enter the box ID of the connection box in decimal form in the "Verify Box ID" text box. The
permitted value range is 1 to 254. The value must correspond to the rotary coding switch
setting of the connection box.
The corresponding hexadecimal value is displayed in the "Hex" output field.
