Parameterizing the Mobile Panel
5.13 Functions for service and commissioning
TP1000F Mobile RO
Operating Instructions, 08/2017, A5E39831415-AA
129
Using the system memory card without automatically backed up data
1. In the "Service & Commissioning" dialog, "Automatic Backup" tab, check whether the
"Automatic Backup" function is enabled.
– If the function is enabled, close the dialog.
– If the function is not enabled, press the "Enable & Reboot" button.
2. Insert the SIMATIC HMI Memory Card without automatic backup into the slot for the
system memory card.

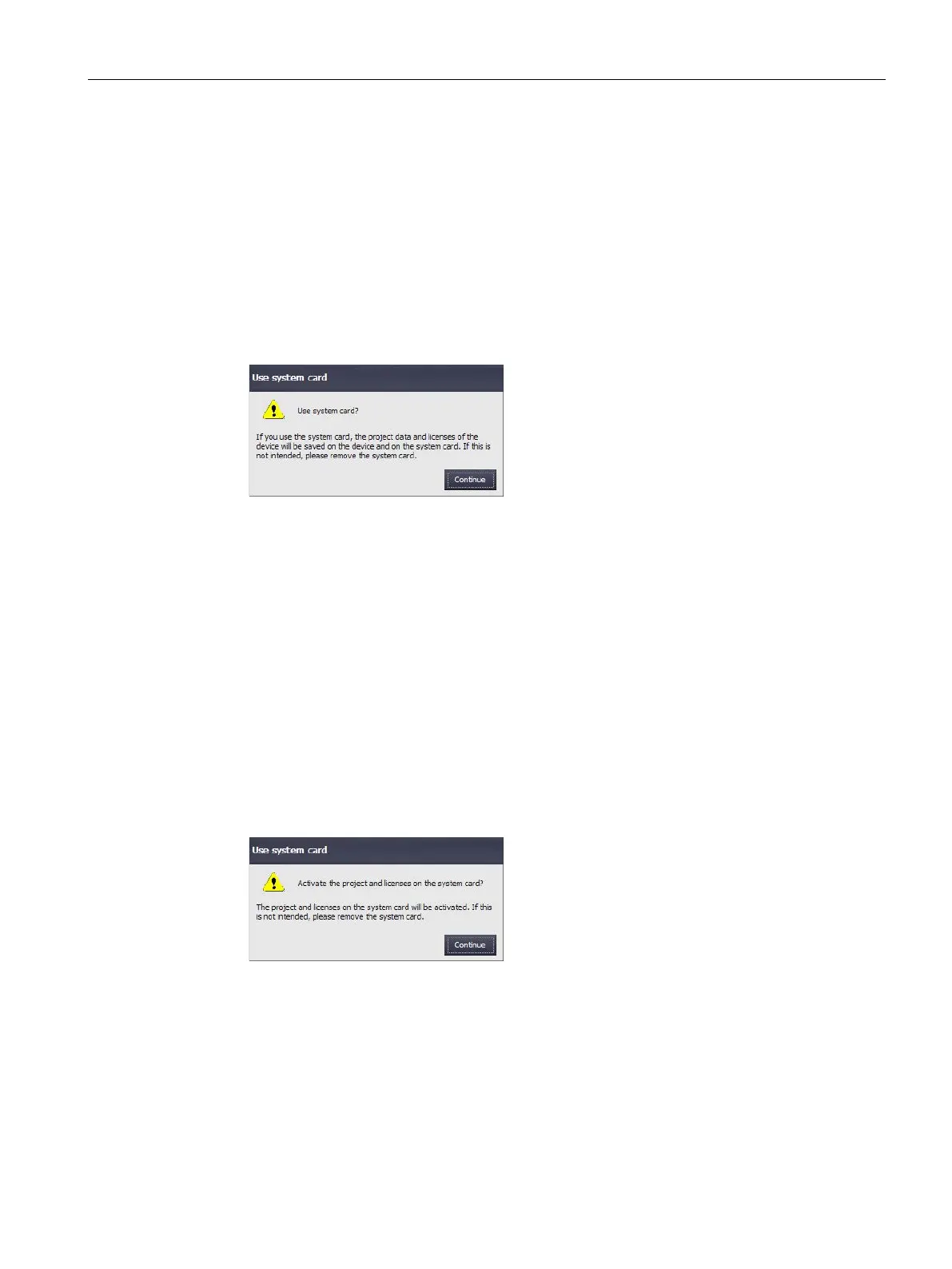

If the system memory card was recognized and read, the "Use system card" dialog is
displayed as follows:
3. Press the "Continue" button. The device copies the data that is required for the
"Automatic Backup" function onto the system memory card.
The "Automatic Backup" function is then available.
Using system memory card with automatically backed up data, no project data on the HMI
device
1. In the "Service & Commissioning" dialog, "Automatic Backup" tab, check whether the
"Automatic Backup" function is enabled.
– If the function is enabled, close the dialog.
– If the function is not enabled, press the "Enable & Reboot" button.
2. Insert the SIMATIC HMI Memory Card without automatic backup into the slot for the
system memory card.
If the system memory card was recognized and read, the "Use system card" dialog is
displayed as follows:
3. Press the "Continue" button.
The data of the system memory card is transferred to the HMI device.
After the data transfer, the state of the HMI device is the same as that of the HMI device
used to generate the automatic backup.
