Installing system components
3.4 Attaching the KTP Mobile wall-mounting bracket
TP1000F Mobile RO
Operating Instructions, 08/2017, A5E39831415-AA
41
Clearance
Consider the space required for the connecting cable used and the height that the HMI
device extends up and over the wall-mounting bracket.

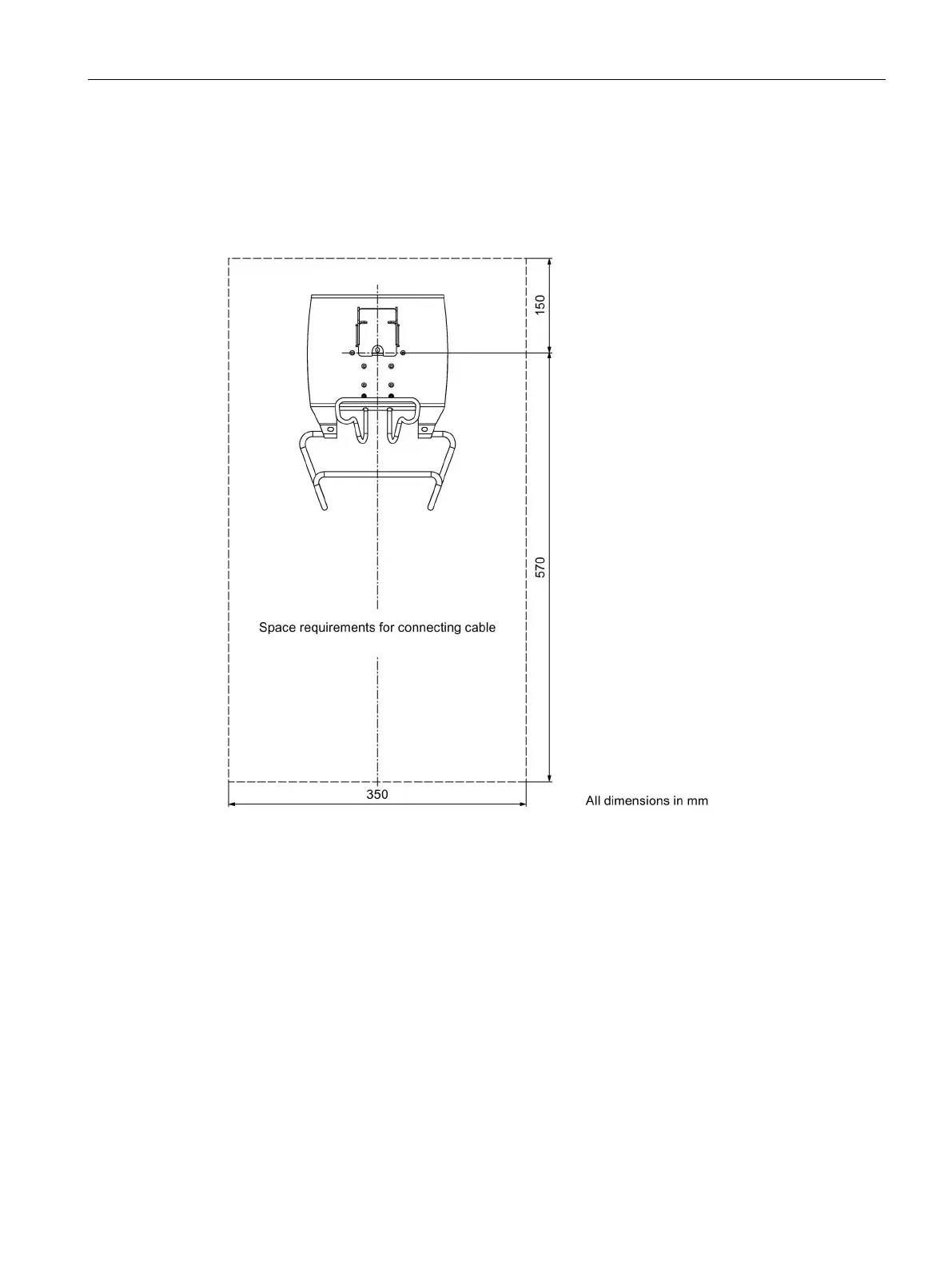

The figure below shows the minimum clearance required around the wall bracket.
