Installing system components
3.5 Connecting the Mobile Panel
TP1000F Mobile RO
44 Operating Instructions, 08/2017, A5E39831415-AA
Note
Use only a SIMATIC HMI Memory Card
Use only a SIMATIC HMI Memory Card with the Mobile Panel.
NOTICE
Unsuitable tools may damage the Mobile Panel
To avoid damaging the motherboard of the Mobile Panel, insert or remove the SD memory
card with an appropriate tool made of plastic.
Requirement
● The Mobile Panel is deenergized.
● The terminal compartment is open.
● The connection cable is not attached.
● You have taken precautions to protect your device, see section "Connection information
(Page 43)".
● A suitable tool made of plastic
Procedure

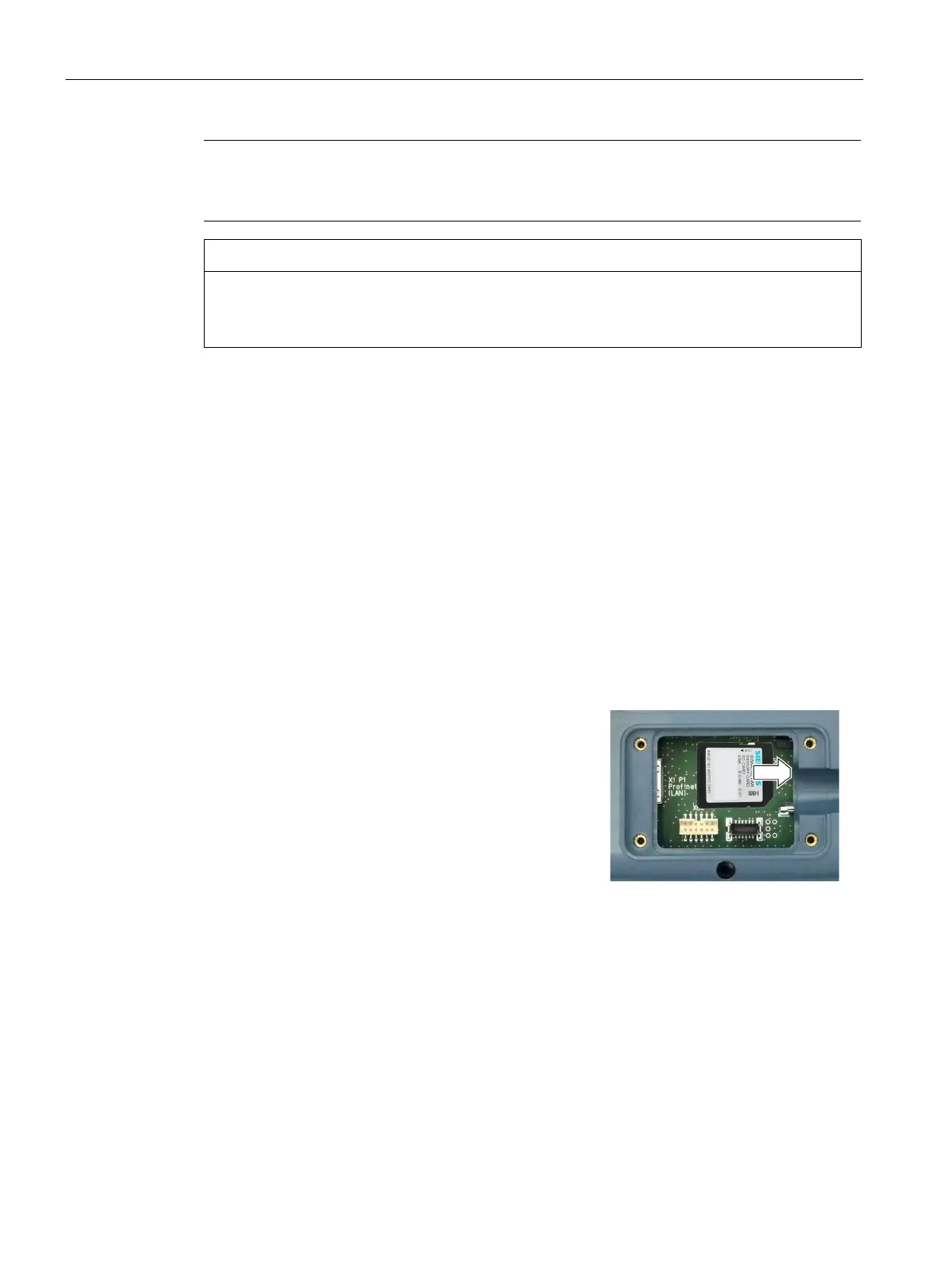

Inserting the SD memory card
1.
Turn the storage medium so that the contacts are
pointing towards the motherboard.
2.
Push the storage medium into the slot with the
suitable tool.
See also
Replacing the Mobile Panel (Page 151)
