6 Assi
nin
Parameters to the Control and the PLC Pro
ram
6
03.96
6.10 Linear motors (1FN1 and 1FN3 motors)
6-167
 Siemens AG 2000 All Rights Reserved
SINUMERIK 840D Installation and Start-Up Guide (IAD) – 04.00 Edition
The signal leads for motor temperature monitoring on 1FN motors are not
installed in the encoder cable, but in the motor power cable. In order to sense
the winding temperature of the drive, the temperature sensor signal leads must
be looped into the encoder cable (temperature sensor coupling lead).
SIMODRIVE
611 D
–X411
U2 V2 W2 PE
Drive A
white
black
yellow
red
brown
+ black
orange
+ red
1FN
Temperature sensor
coupling lead
Pin 13
Pin 25
Linear scale
Power cable
SIMODRIVE
611 D
–X411
U2 V2 W2 PE
Drive A
white
black
yellow
red
brown
+ black
orange
+ red
1FN
Temperature sensor
coupling lead
Pin 13
Pin 25
Linear scale
Power cable
SIMODRIVE
611 D
–X411
U2 V2 W2 PE
Drive A
white
black
yellow
red
1FN
Linear scale
Evaluation
external
Power cable
Case b)
The temperature is monitored via the drive and
an external device.
S Temperature sensor via drive
S External temperature switch on 1FN1
S On 1FN3 with PTC resistors via
control unit
Case a)
The temperature is monitored
via the drive.
Case c)
The temperature is monitored via
an external device only.
Evaluation
external

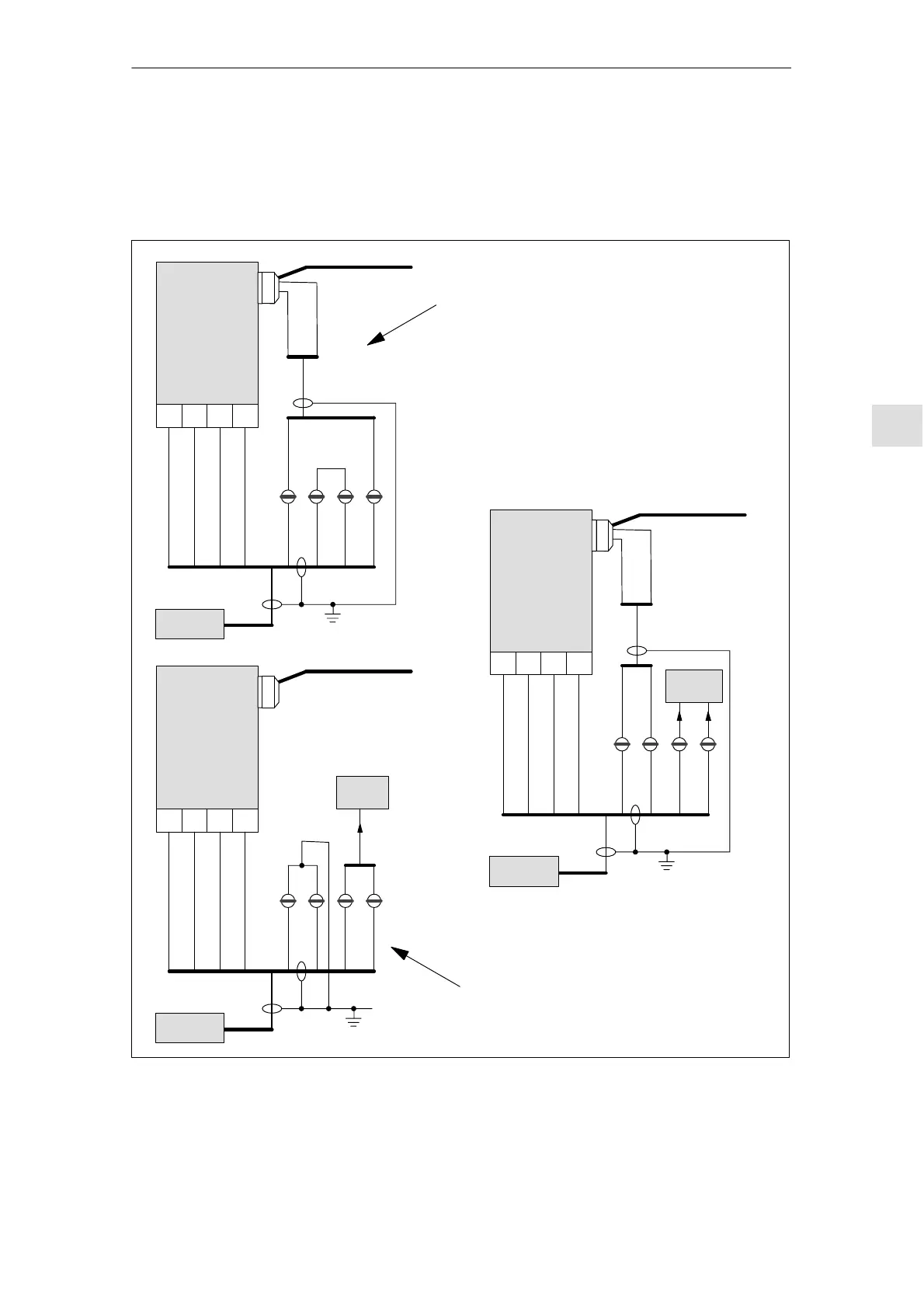

Fig. 6-34 Evaluation of KTY temperature sensor (black/white) and switch or PTC (yellow/red)
(whether temperature switch or PTC resistor depends on motor type, i.e. 1FN1 or 1FN3)
How are the
temperature
sensors
evaluated?
