6.10 Linear motors (1FN1 and 1FN3 motors)
6-171
 Siemens AG 2000 All Rights Reserved
SINUMERIK 840D Installation and Start-Up Guide (IAD) – 04.00 Edition
3. Zeiss measuring systems (e.g. LIE 5)
Note
The positive count direction of the Zeiss linear measuring system must be de-
termined in exactly the same way as that of the RGH22B Renishaw system
(see Fig. 6-37).
This connection variant has proved to extremely interference-immune and
should always be employed.
If an incremental measuring system is used, the drive is roughly synchronized
using the rotor position identification routine.
SIMODRIVE
611 D
–X411
U2 V2 W2 PE
Drive A
Linear scale
6FX2001–2CG00–xxxx (incremental)
6FX2002–2CH00–xxxx (absolute)
Primary part
Temperature sensor coupling lead (dongle)
6FX2002–1AA14–xxxx
Power cable
Encoder lead

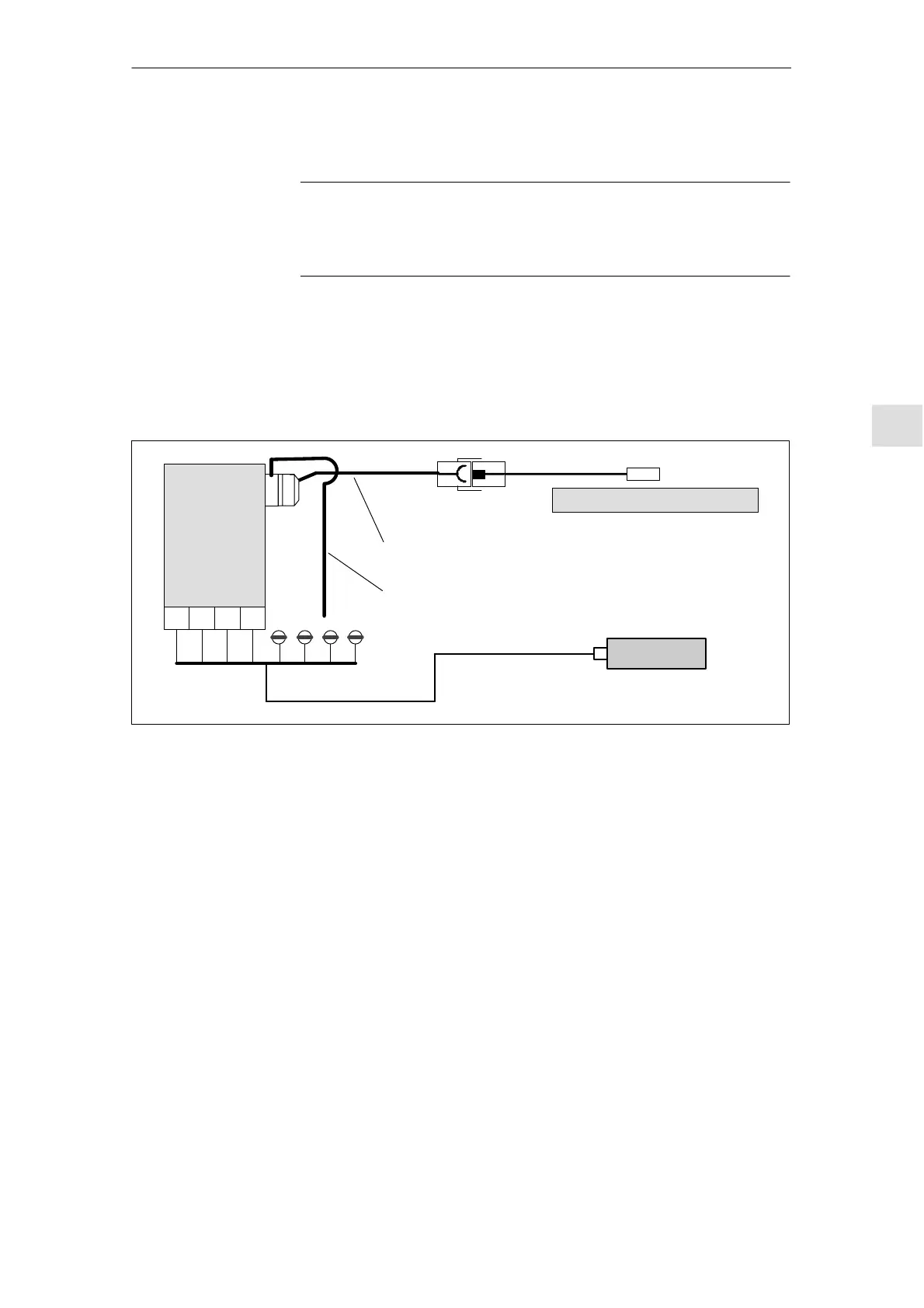

Fig. 6-38 Temperature sensor coupling lead (recommended standard connection)
Temperature
sensor coupling
lead (= dongle)
04.00
