Detailed description
2.11 General conditions and NC-VAR_Selector
Basic logic functions: PLC basic program solution line (P3 sl)
Function Manual, 11/2006, 6FC5397-0BP10-2BA0
89
Basic display/Basic menu
After the NC VAR selector has been selected (started), the basic display with all input
options (upper menu bar) appears on the screen. All other displayed windows are placed
within the general window.

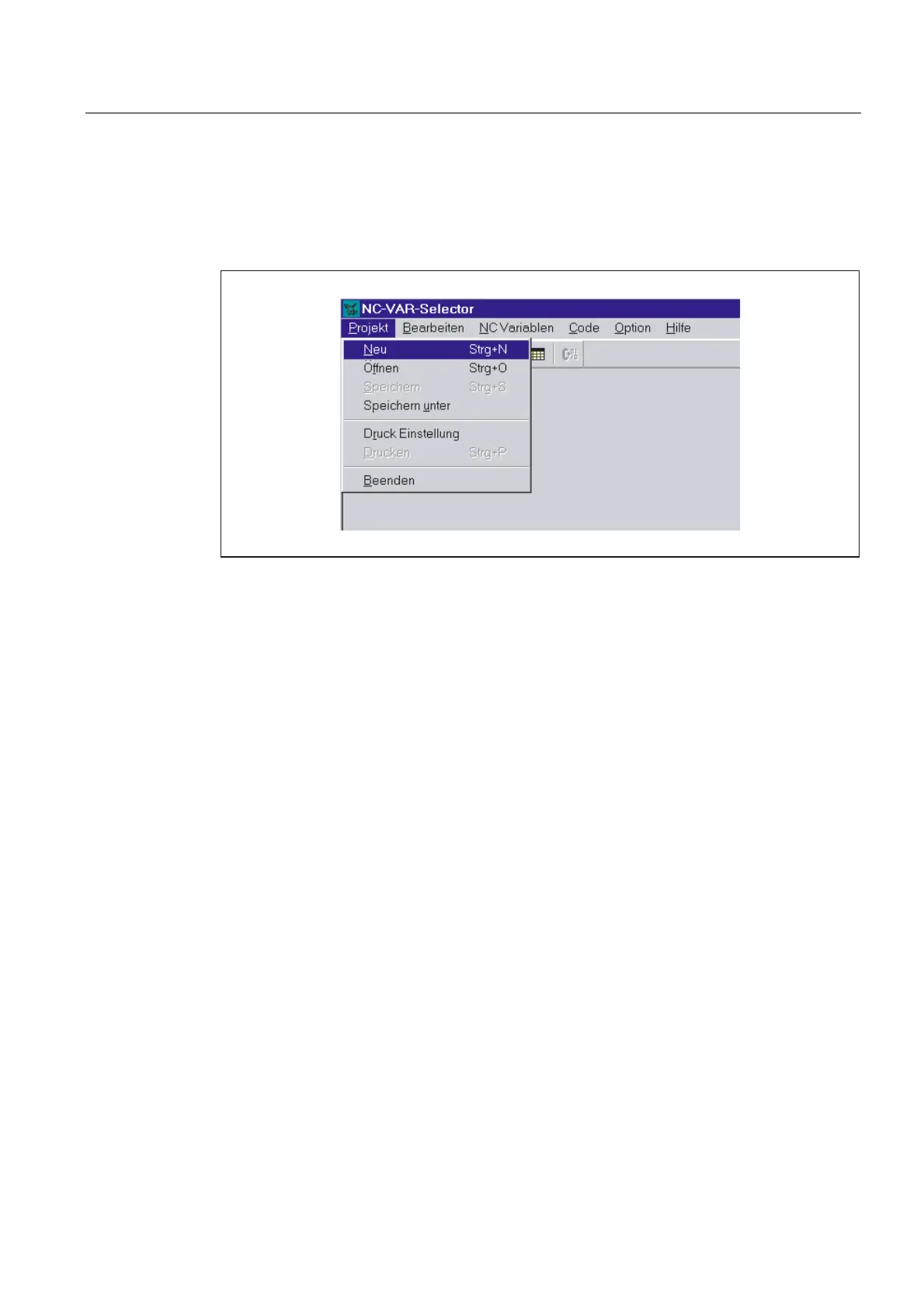

Figure 2-20 Basic display with basic menu
Project menu item
All operator actions associated with the project file (file of selected variables) are performed
under this menu item.
Terminating the application
The application can be terminated by selecting the "End" option under the "Project" menu
item.
