Detailed description
2.11 General conditions and NC-VAR_Selector
Basic logic functions: PLC basic program solution line (P3 sl)
90 Function Manual, 11/2006, 6FC5397-0BP10-2BA0
Creating a new project
A new project (new file for selected variables) can be set up under the "Project" menu item.
A window is displayed for the selected variables when "NEW" is selected. The file selection
for the NC variable list is then displayed after a prompt (applies only if the NC variable list is
not already open).

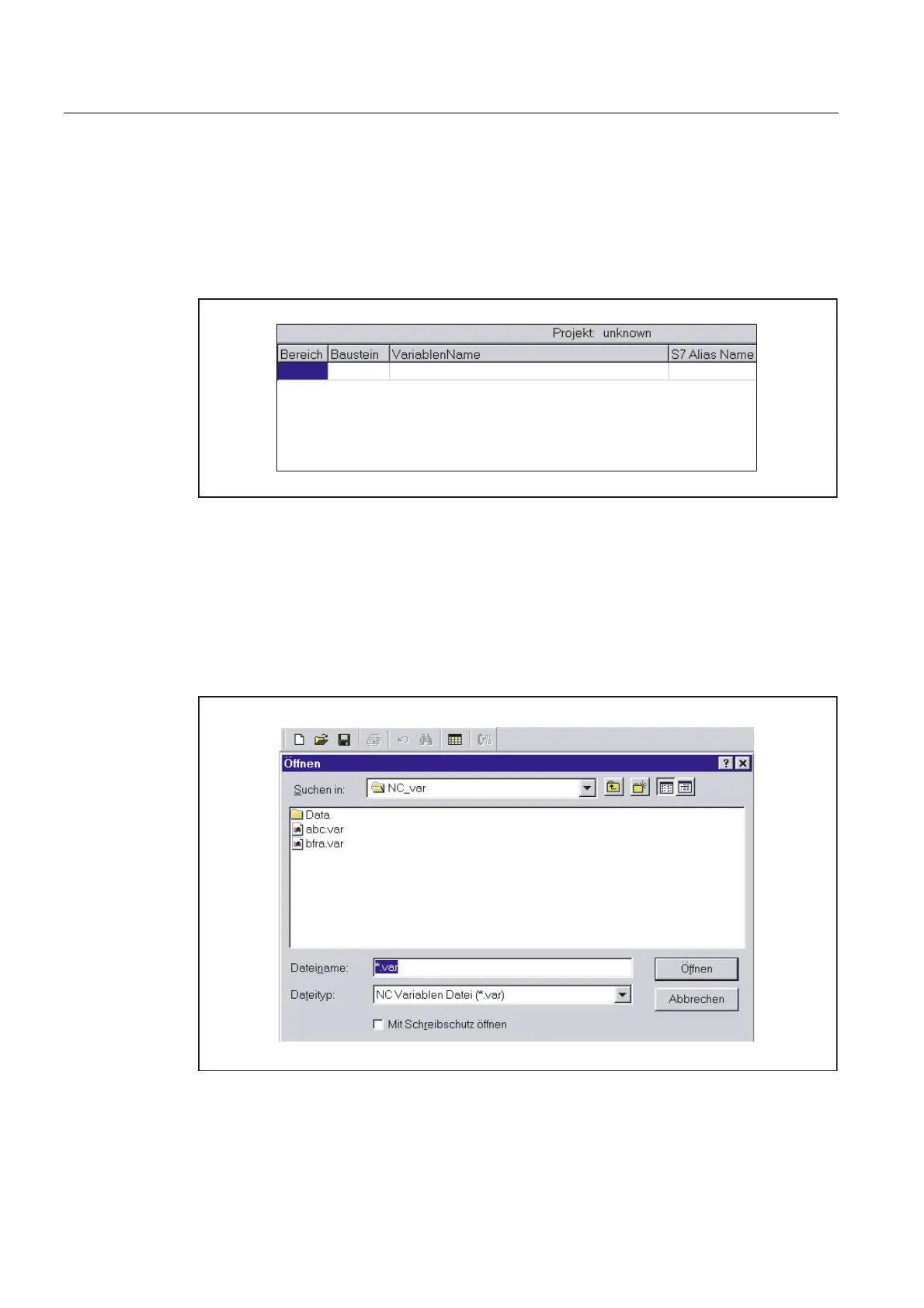

Figure 2-21 Window with selected variables for new project
The selected variables are displayed in a window.
Opening an existing project
Select "Open" under the "Project" menu item to open an existing project (variables already
selected). A file selection window is displayed allowing the appropriate project with extension
var to be selected.
Figure 2-22 Selection window for existing projects
