Detailed description
2.11 General conditions and NC-VAR_Selector
Basic logic functions: PLC basic program solution line (P3 sl)
92 Function Manual, 11/2006, 6FC5397-0BP10-2BA0
Selecting an NC variable list
A list of all the NC variables for an NC version can now be selected and displayed via the
"NC Variable List", "Select" menu item.

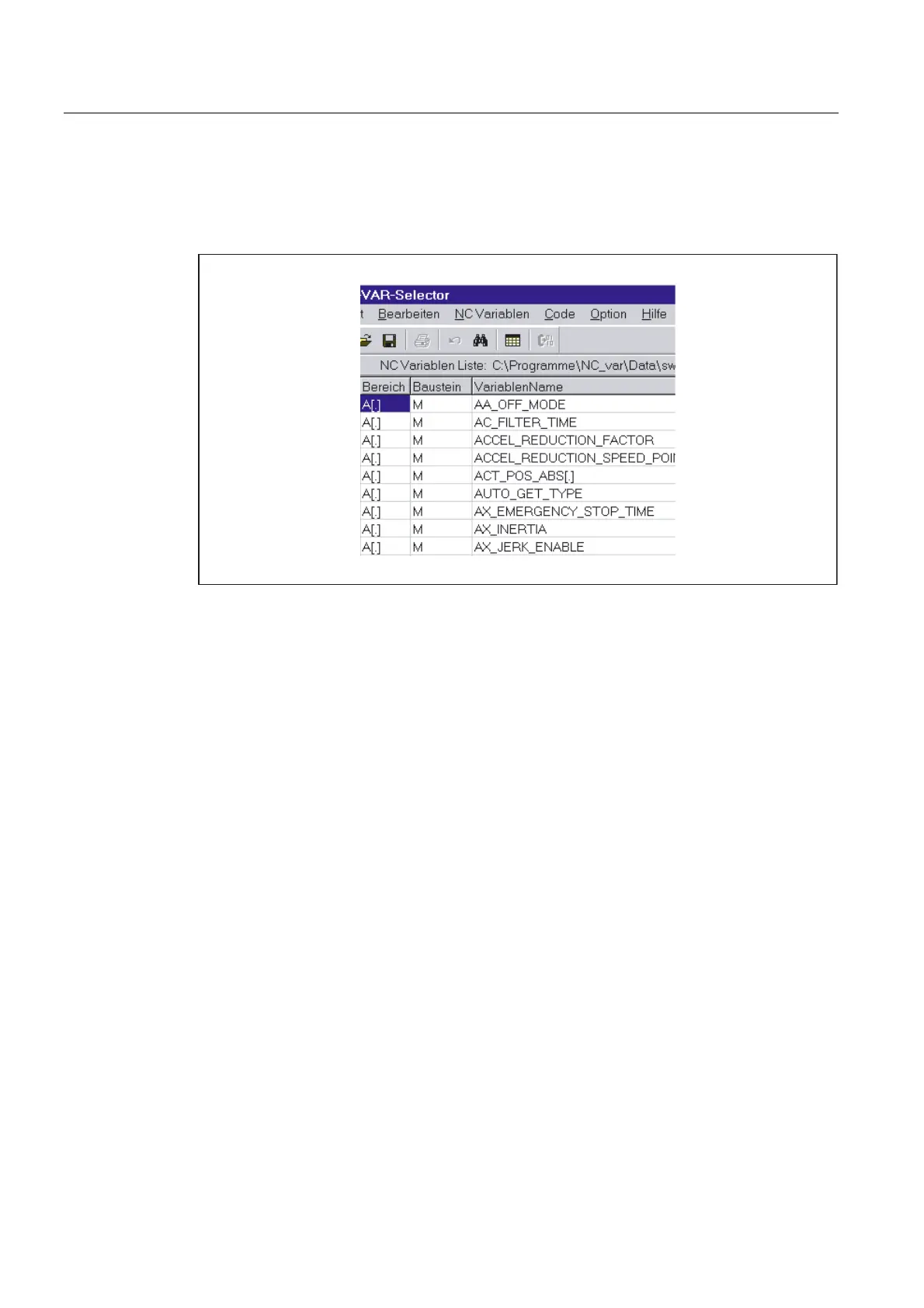

Figure 2-23 Window with selected Complete List
The field variables (e.g. axis area, T area data, etc.) are indicated by means of brackets ([.]).
Additional information must be specified here. When the variables are transferred to the
project list, the additional information required is requested.
