Detailed Description
2.9 Sum offsets and setup offsets
Basic logic functions: Tool Offset (W1)
Function Manual, 11/2006, 6FC5397-0BP10-2BA0
151
Configuration
MD18112 $MN_MM_KIND_OF_SUMCORR, bit 4=0: (Properties of sum offset in the TO
area) default setting:
Only one set of sum offsets exists per DL number.
We refer in general to the sum offset.
This describes the data represented by $TC_SCPx.
'RIIVHW
6XPRIIVHW
6XPRIIVHW
7&B6&3>W@
7&B6&3>W@
7&B6&3>W@
7&B6&3>W@
7&B'3>W@
7&B'3>W@
7&B'3>W@
7&B'3>W@

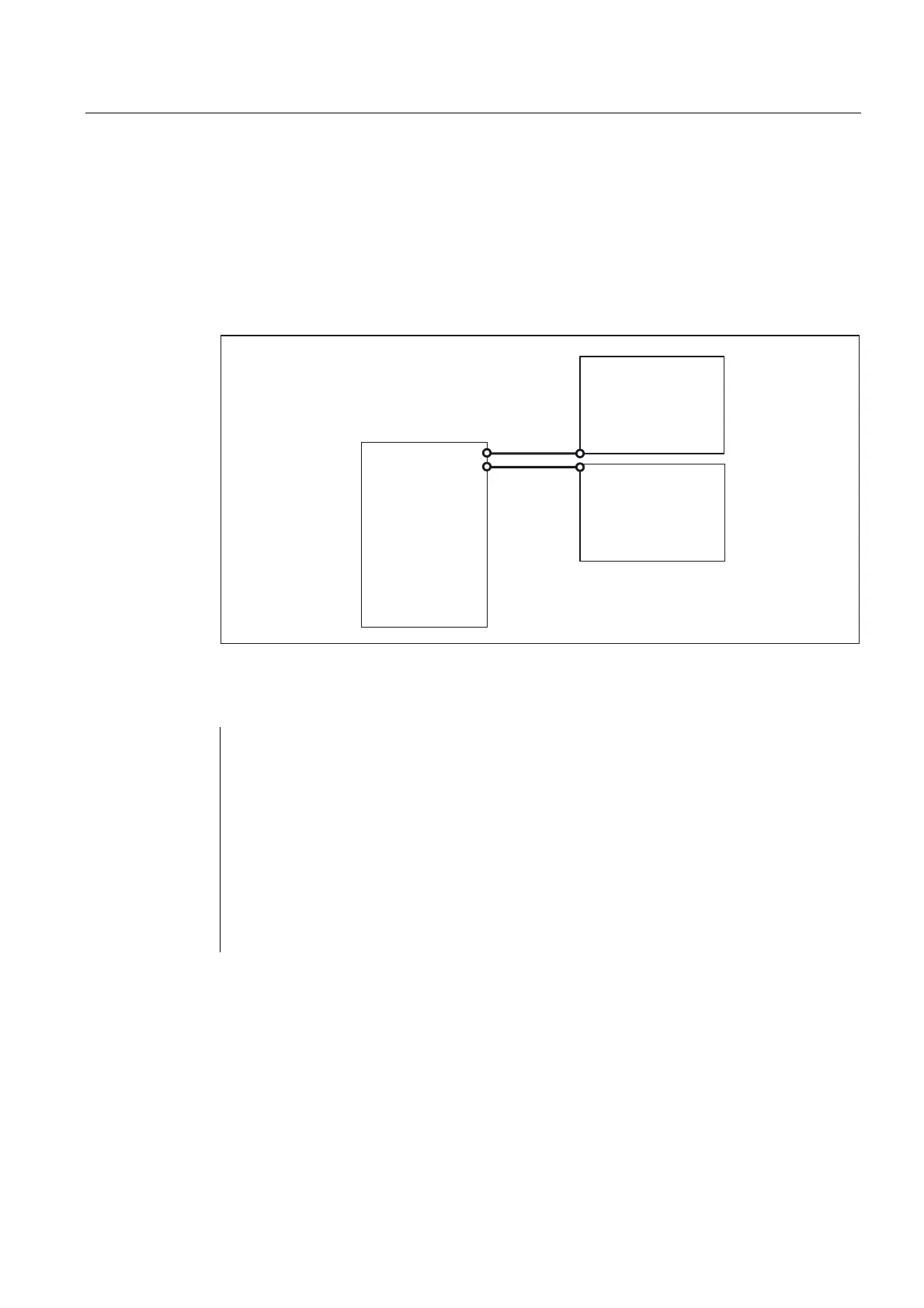

Figure 2-50 MD18112 $MN_MM_KIND_OF_SUMCORR, bit 4 = 0
Tool T = t is active. With the data in the figure, the following is programmed:
D2
; Cutting edge offsets, i.e., $TC_DP3 to $TC_DP11 + wear ($TC_DP12 to
$TC_DP20) + adapter dimension
...
DL=1
; Sum offset 1 is added to the previous D2 compensations, i.e., $TC_SCP13
to $TC_SCP21.
...
DL=2
; Sum offset 2 is added to the D2 compensation instead of sum offset 1, i.e.,
$TC_SCP23 to $TC_SCP31.
...
DL=0
; Deselection of sum offset;
only the data of D2 remain active.
