Siemens SINUMERIK 810D Function Manual

Detailed Description
2.9 Sum offsets and setup offsets
Basic logic functions: Tool Offset (W1)
152 Function Manual, 11/2006, 6FC5397-0BP10-2BA0
MD18112 $MN_MM_KIND_OF_SUMCORR, bit 4=1: Setup offsets are available
The sum offset is now composed of the "sum offset fine" (represented by $TC_SCPx) and
the setup offset (represented by $TC_ECPx). Two data sets therefore exist for one DL
number. The sum offset is calculated by adding the corresponding components ($TC_ECPx
+ $TC_SCPx).
6XPRIIVHW
ILQH
6HWXSRIIVHW
6XPRIIVHW
ILQH
6HWXSRIIVHW
'RIIVHW
7&B'3>W@
7&B'3>W@
7&B(&3>W@
7&B(&3>W@
7&B(&3>W@
7&B(&3>W@
7&B'3>W@
7&B'3>W@
7&B6&3>W@
7&B6&3>W@
7&B6&3>W@
7&B6&3>W@
7&B'3&(>W@

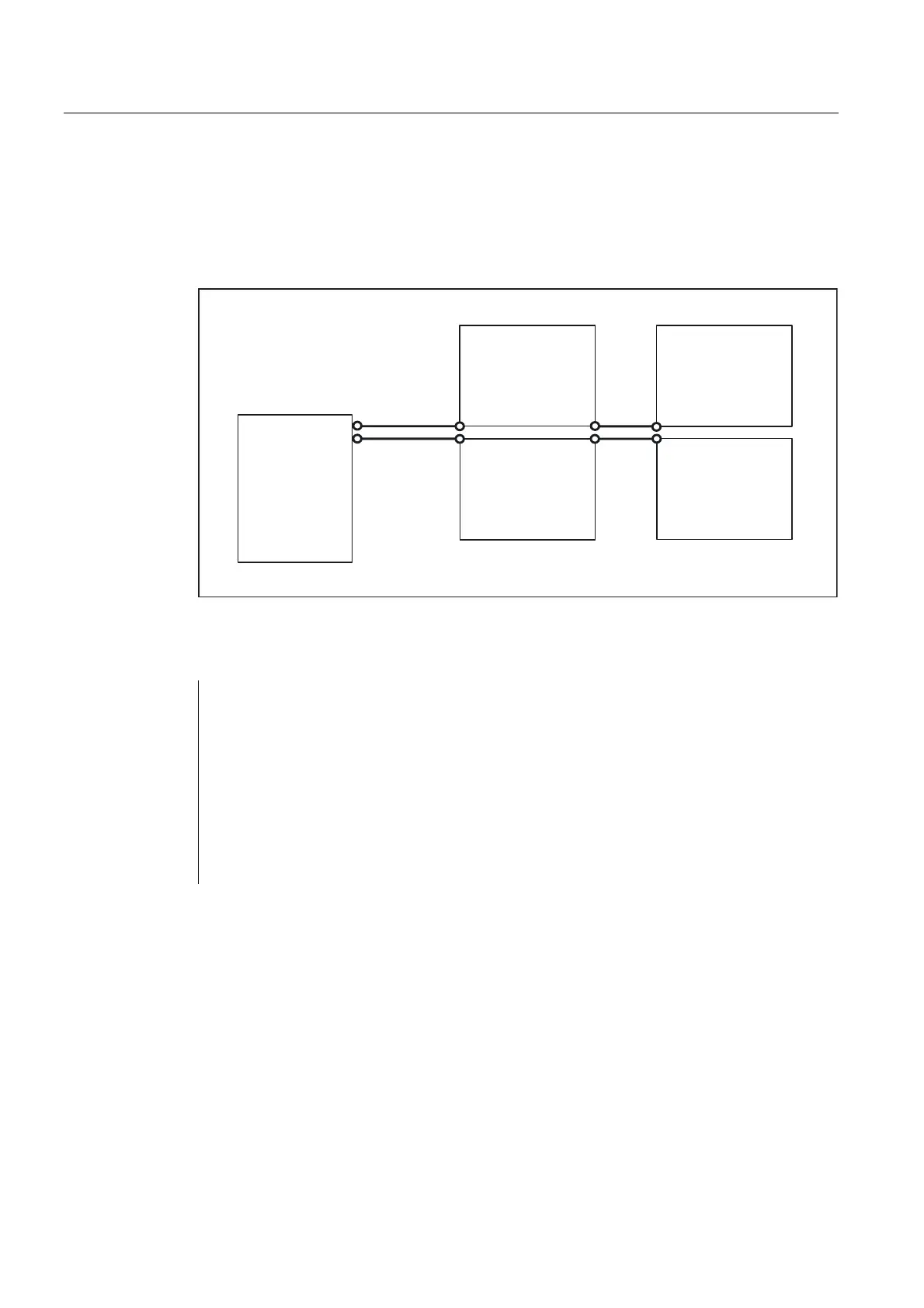

Figure 2-51 MD18112 $MN_MM_KIND_OF_SUMCORR, bit 4 = 1 "setup offsets" + "sum offsets fine"
Tool T = t is active. With the data in the figure, the following is programmed:
D2
; Cutting edge compensations, i.e., $TC_DP3 to $TC_DP11 + wear
($TC_DP12 to $TC_DP20) + adapter dimension
...
DL=1
; Sum offset 1 is added to the previous D2 compensations, i.e., $TC_ECP13
+ $TC_SCP13 to $TC_ECP21 + $TC_SCP21.
...
DL=2
; Sum offset 2 is added to the D2 compensation instead of sum offset 1; i.e.,
$TC_ECP23 + $TC_SCP23,...$TC_ECP31 + $TC_SCP31
...
DL=0
; Deselection of sum offset. Only the data of D2 remain active.
