Connecting
6.3 Connecting the load cells
SIWAREX WP241
Manual, 04/2014, A5E33713528A
29
6.3.2
Connection of any scales or load cells

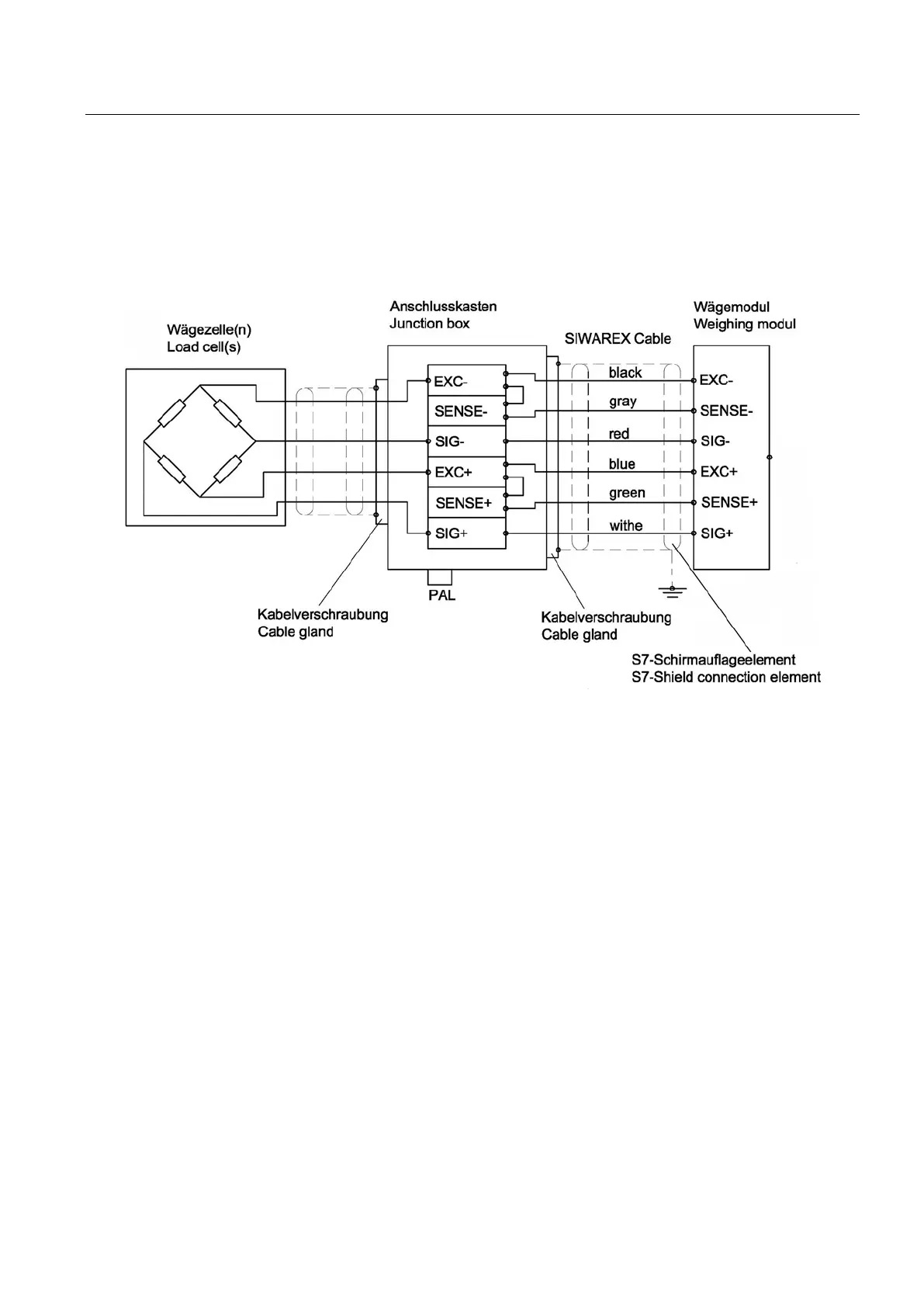

Figure 6-4 Connection of 4-wire load cells to WP241
