Connecting
6.12 Connection of a speed sensor
SIWAREX WP241
Manual, 04/2014, A5E33713528A
37
6.12
Connection of a speed sensor
If a speed sensor is connected to the WP241, this must always be made at digital input DI.0
of the module. This input is factory-configured for operation as a pulse counter. Check this
setting in data record 7 during commissioning.
Connection of the various Siemens speed sensors is shown below. A wide range of pulse
sensors can be used up to a clock frequency of 5 000 Hz. A level of at least +15 V DC is
required for the High signal. The Low signal is reached at a voltage of +5 V DC.
Detailed information on the various sensors can be obtained from the respective manual.
6.12.1
RBSS speed sensor on WP241

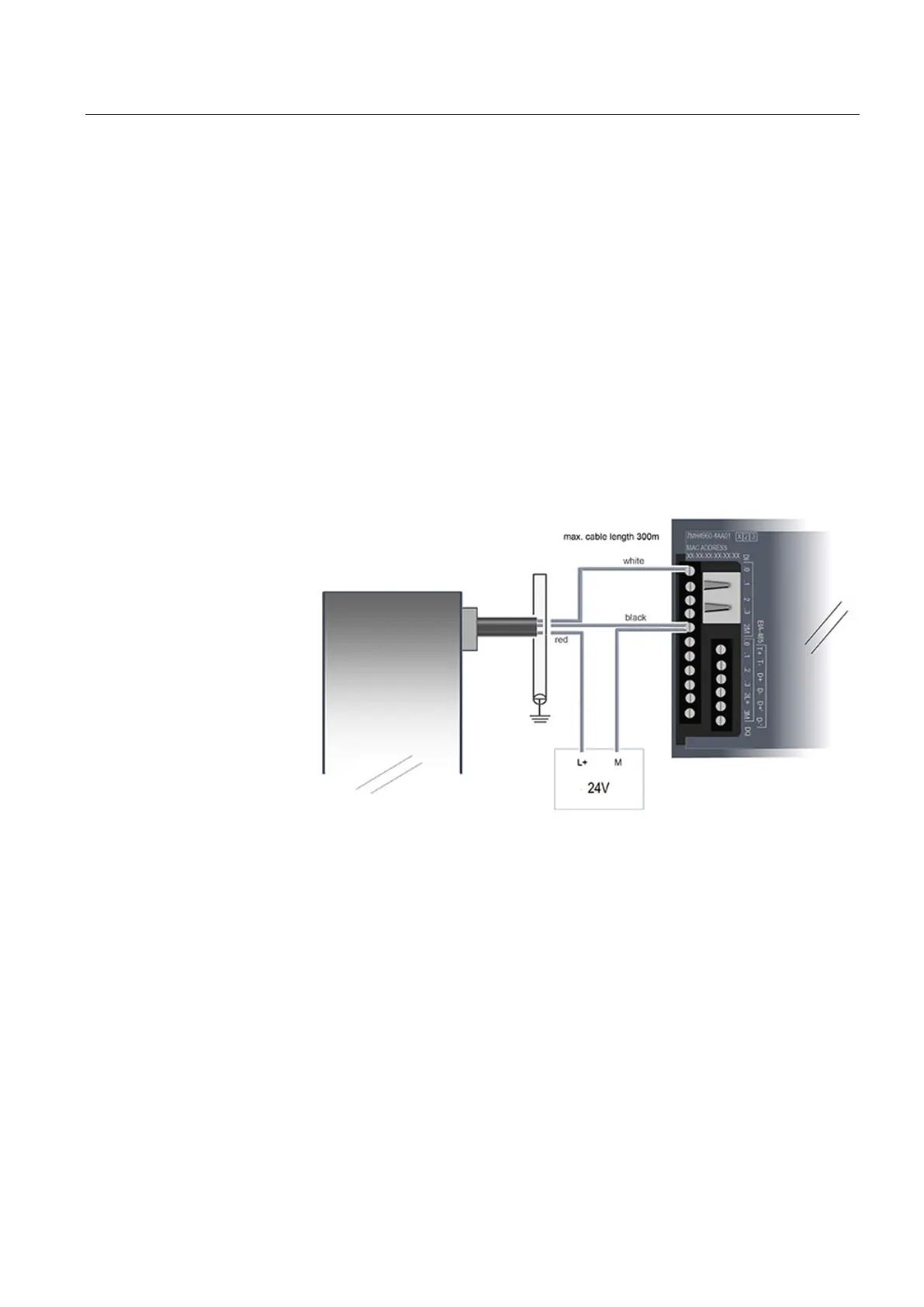

Figure 6-8 RBSS speed sensor on WP241
