6.11 Mounting of the calibration protection plate
SIWAREX WP241
36 Manual, 04/2014, A5E33713528A
Mounting of the calibration protection plate
In order to be able to operate the SIWAREX WP241 with verification capability in the future,
the load cell connections must be protected against manipulation. To achieve this, mount the
calibration protection plate included in the calibration set as shown in the following picture.
Subsequently secure the calibration protection plate using the associated terminals (see ).

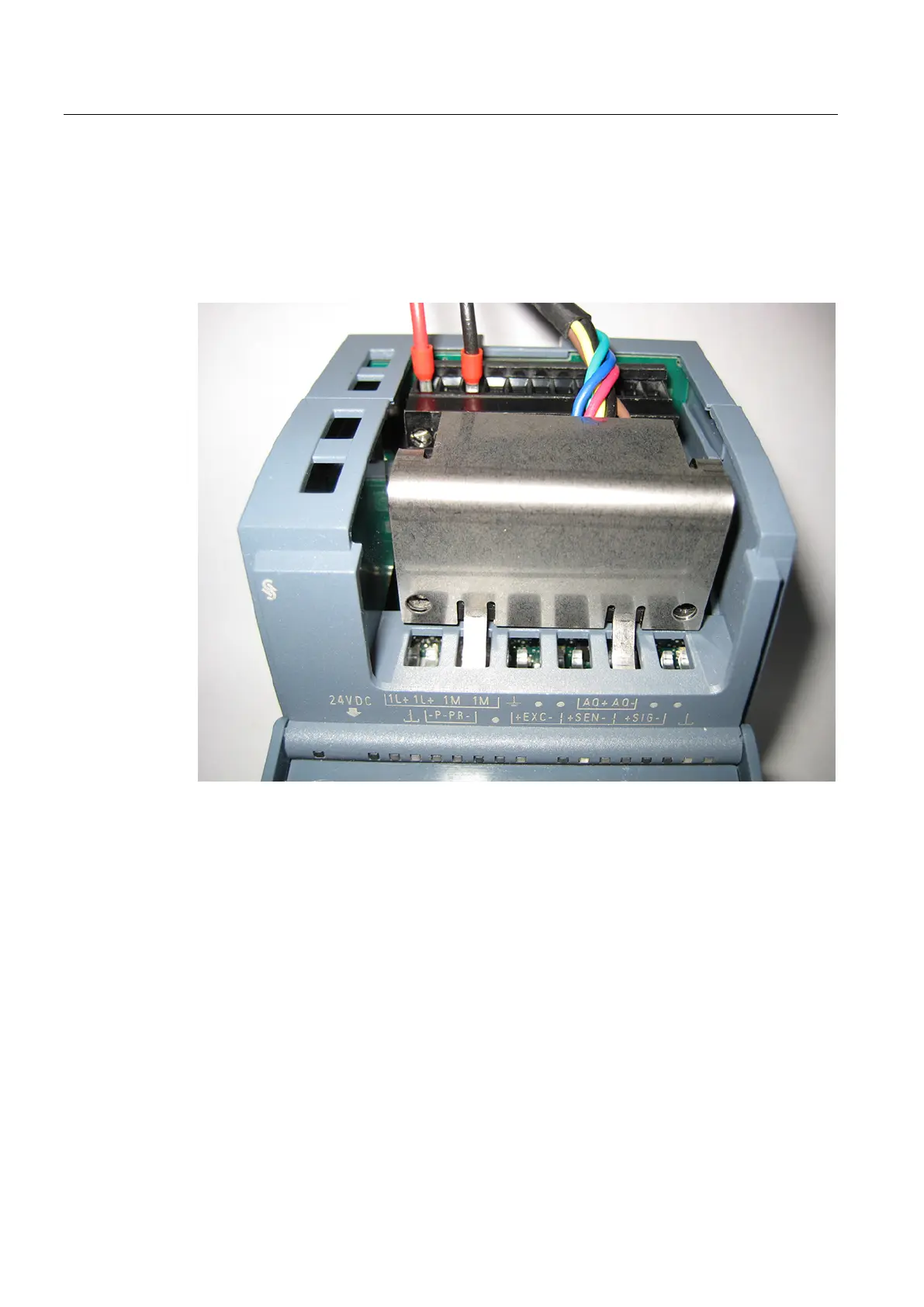

Figure 6-7 Mounting of the calibration protection plate
Overview (Page 25)
