Commissioning
7.5 Start-up with the operator panel and the Ready-for-Use software
SIWAREX WP241
Manual, 04/2014, A5E33713528A
43
Start-up with the operator panel and the Ready-for-Use software
The quick start is shown using the example of an operator panel of type TP700 Comfort
connected directly to the WP241. The panel communicates directly with Modbus TCP/IP or
alternatively via an S7-1200 CPU.
To carry out the start-up, select the item "1.0 Setup" in the main menu. You can conveniently
set the most important parameters here for starting-up the scale. The remaining parameters
are factory-set in such a way that they can be used in most cases without any changes.

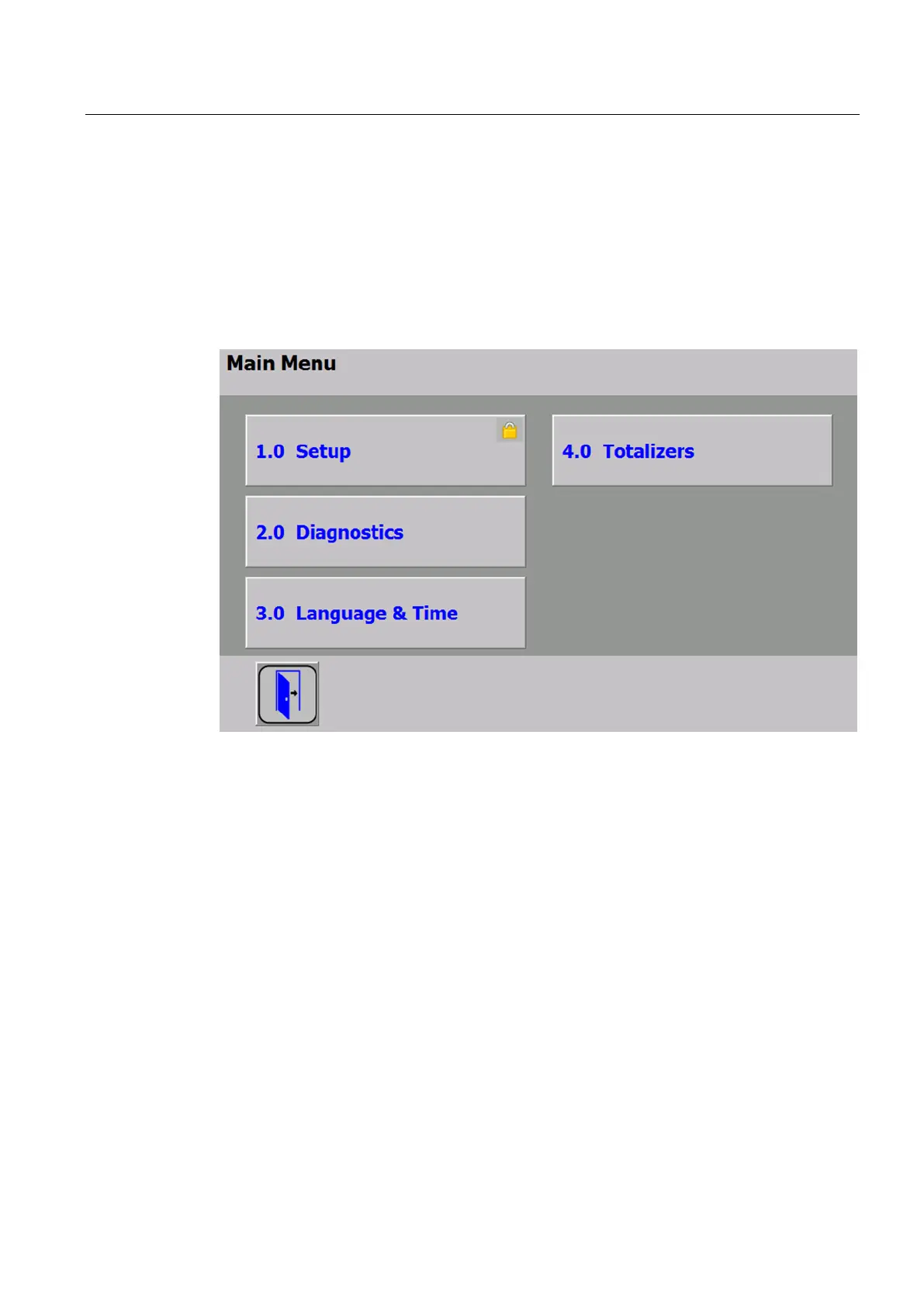

Figure 7-1 Main menu
In the next step, select the item "1.1 Basic parameters" and then press the "Switch on
service mode" button in the screen which subsequently appears. The square in the top right
corner is then colored yellow (= Service mode ON). You can subsequently use the button
with triangle at the bottom right to reach the submenu "1.1.1 Basic parameters 1 of 2".
To Next Page
