Commissioning
7.6 Service with SIWATOOL software
SIWAREX WP241
Manual, 04/2014, A5E33713528A
61
Service with SIWATOOL software
You can use the SIWATOOL program to commission the scale independently of the
SIMATIC automation system.
The program is included in the optional configuration package (7MH4960-4AK01).
Install the SIWATOOL program on your PC for commissioning.
A document for commissioning of the belt scale using SIWATOOL is also available in the
Siemens Customer Support.
Windows and functions of SIWATOOL
Control elements for SIWATOOL and
Offline values of the SIWAREX module
Parameter list of the SIWATOOL module
Online values of the connected SIWAREX

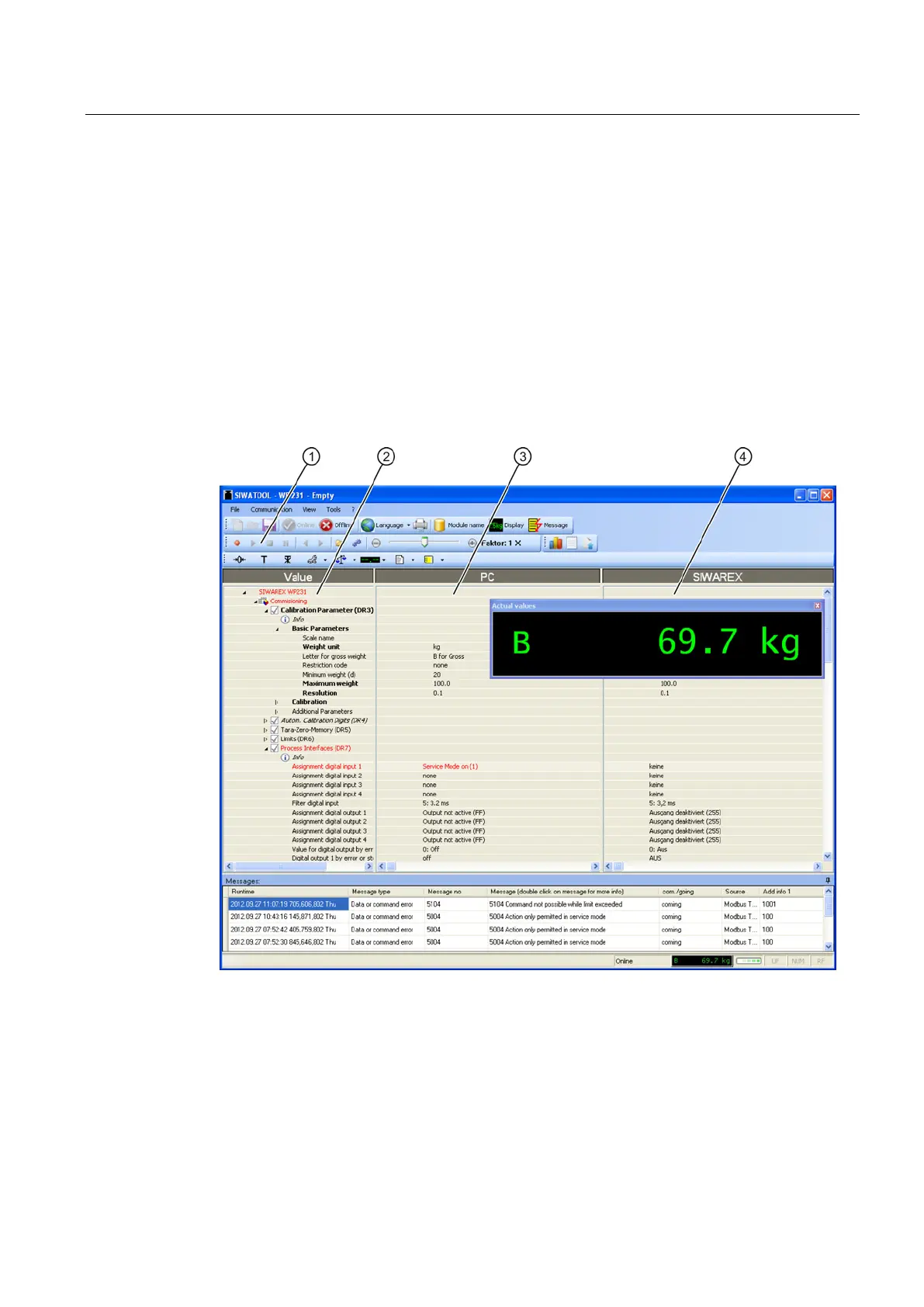

Figure 7-16 Layout of the SIWATOOL user interface
Sending/receiving a data record is always carried out by right-clicking on the data record
name in the "Value" column in the tree structure.
