Sifos Technologies PhyView PVA-3000 User Manual

PVA-3000 Reference Manual
December 2, 2019 Sifos Technologies
Page
106
Expected Result: Total Packets= 524288
4.18.7. Example 7: Measure 1000BaseT Packet Loss in a Switch with Impairments Enabled
Test ports 1,1 and 1,2 need to be connected to a DUT that supports packet forwarding, and supports 1000BaseT
operation with Master timing mode.
Note: Test port 1,1 and 1,2 MAC addressing were configured in previous example to send traffic to each other. Switch
bridging was also established and it is assumed to be in tact for this example.

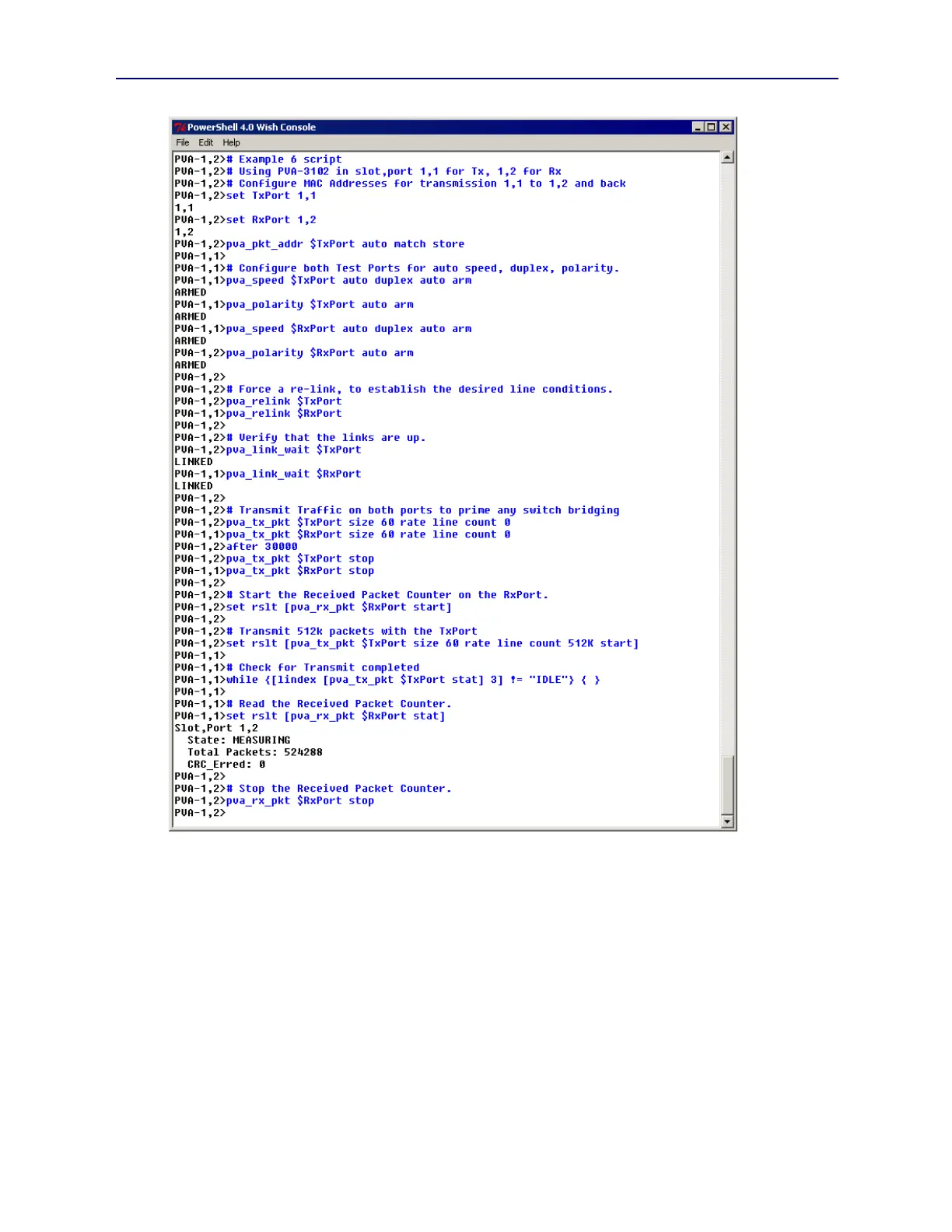

Figure 4.11 Example 6 - Packet Flow Test
