3.9.2. Link Partner Assessment
The Link Partner Assessment meter can be configured to report Link Partner Capability, Link Partner Capability
with Extra Gigabit Parameters, or Auto-Neg and Link-Up Timing metrics.
The default Link Partner Capability mode reports a number of
characteristics of the currently connected port-under-test (see
Figure 3.21). These characteristics are recovered from several
link-up or link-up attempts and include the following
parameters:
 AUTO-NEG: Supports EXTENDED, BASE,
or NO auto-negotiation
 ACKS: Recognizes EXTENDED, BASE, or NO
auto-negotiation
 1000BaseT Support: FULL, HALF, FULL+HALF
(Duplex), or NO
 100BaseTx Support: FULL, HALF, FULL+HALF
(Duplex), or NO
 10BaseT Support: FULL, HALF, FULL+HALF
(Duplex), or NO
 100BaseT4 Support: NO or YES
 PAUSE Support: NO, RESPOND, XMIT, or RESPOND+XMIT
 LINK_OK Indication: YES, FAULT, GIG_ERR, or N/A (not available)
 Rx_OK Indication: NO, YES, or N/A (not available)
 MDI_MDI-X Support: AUTO, MDI_ONLY, or MDI-X_ONLY
MASTER_SLAVE Support: AUTO, MASTER_ONLY, SLAVE_ONLY, or N/A (not applicable)
NLP_LINK Support: LINKED, UNLINKED (link to non-auto- negotiating partner)
Figure 3.21 depicts the outcome of Link Partner Assessment
with a full featured 10/100/1000Base-T port and separately an
older 100Base-Tx, MDI-only Ethernet port.
In Figure 3.22, the Link Partner Assessment is first run with
the Gig Extras option selected. This option produces
additional information specific to 1000Base-T.
 STATUS: Indicates 1000Base-T Auto-Neg is
COMPLETE or NOT_COMPLETE
 DET_FAULT: Indicates if link rate is properly
determined (RATE_RESOLVED) or not (DET_FAULT)
 MASTER_FAULT: Indicate problem (FAULT) with
gigabit auto-neg given local port configured as MASTER
 SLAVE_FAULT: Indicate problem (FAULT) with
gigabit auto-neg given local port configured as SLAVE
 AUTO_MS_FAULT: Indicate problem (FAULT) with gigabit auto-neg given local port configured to auto-
negotiation MASTER/SLAVE
 MASTER_TIME: Time, in seconds, for PVA port to auto-negotiate as MASTER in a gigabit link-up
 SLAVE_TIME: Time, in seconds, for PVA port to auto-negotiate as SLAVE in a gigabit link-up
 TRAIN_TIME: Time, in seconds, for the MASTER/SLAVE timing resolution to complete
In Figure 3.22, the Link Partner Assessment is also run with Auto-Neg/Link-Up Timing option selected. This meter
analyzes the time from a physical (wire) connection until physical layer link-up is completed. The metering offers
approximately 20msec of resolution and assesses a 10Base-T link-up, a 100Base-T link-up, an 1000Base-T link-up, and
a fully auto-negotiated (rate) link-up.
Link-Up timing measurements can be a valuable indicator of the “health” of the complete auto-negotiation process.
Auto-Negotiation is a complex sequence of processing by both link partners and historically has been subject to
interoperability problems. Generally, a reliable 10/100 link should occur consistently in well less than one second and
a reliable 1000Base-T link should occur consistently in less than 2 seconds. For further information regarding
assessment of 10/100/1000 Auto-Negotiation, see Sifos application note Auto-Neg Analysis with the PhyView
Analyzer.

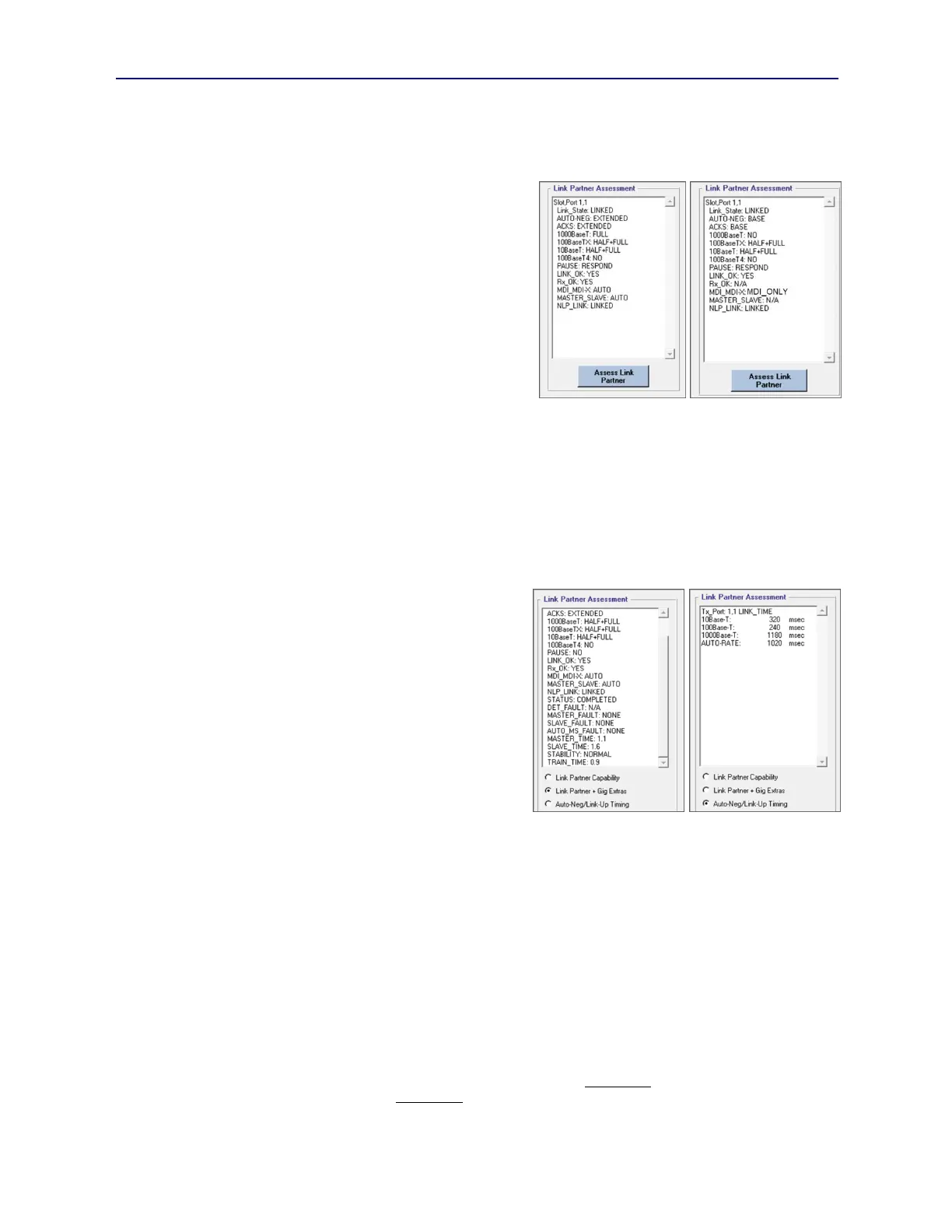

Figure 3.21 Link Partner Assessment
Figure 3.22
Gig Extras Capability & Link-Up Timing
