Echosounder

The Echosounder function provides a view of the water and bottom

beneath your vessel, allowing you to detect fish and examine the

structure of the sea floor.

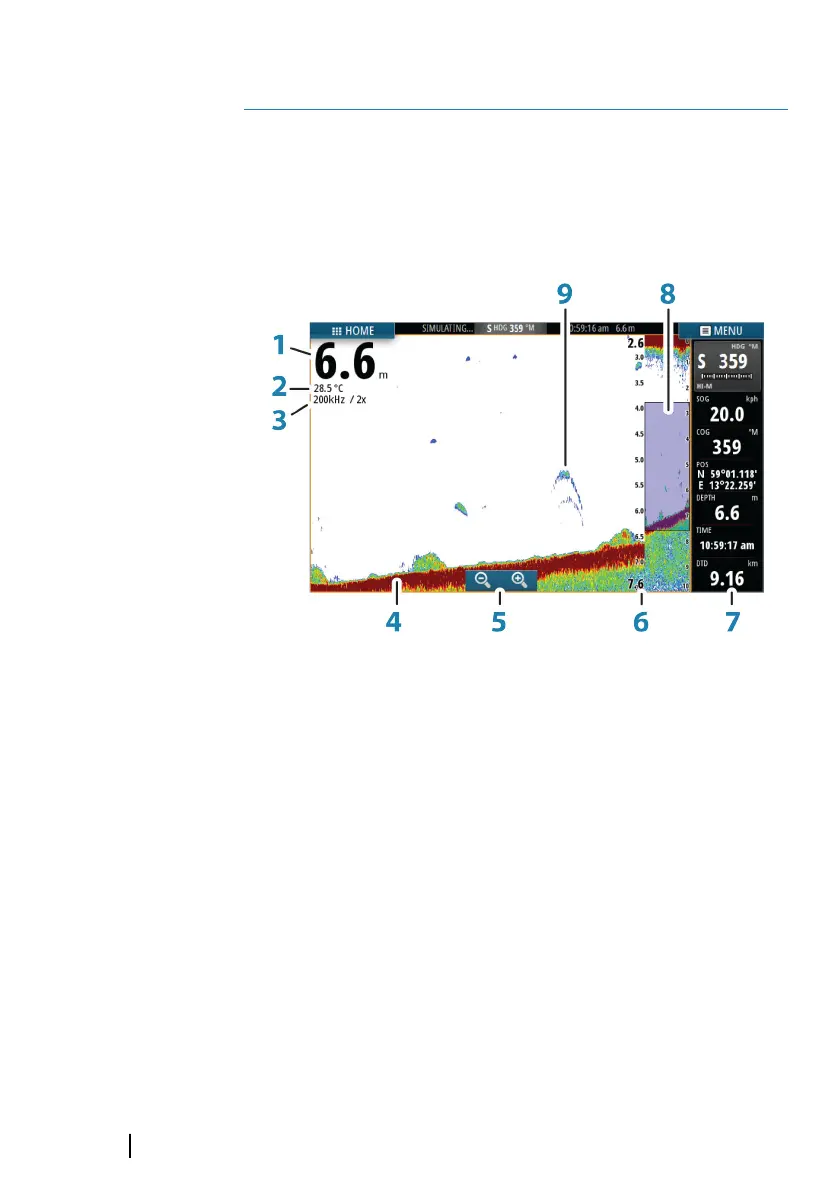

The Echosounder image

1 Depth

2 Temperature

3 Frequency and Zoom scale

4 Bottom

5 Zoom buttons

6 Depth range scale

7 Instrument panel

8 Zoom column

9 Fish arches

114
