Simrad GO XSE User Manual

StructureScan
StructureScan uses high frequencies to provide a high resolution,
picture-like image of the seabed.
Ú
Note: You must have a StructureScan HD or TotalScan
transducer installed to use StructureScan features.
StructureScan provides a wide coverage in high detail with
SideScan, while DownScan provides detailed images of structure
and fish directly below your boat. The StructureScan page is
accessed from the Home page when the transducer is connected.

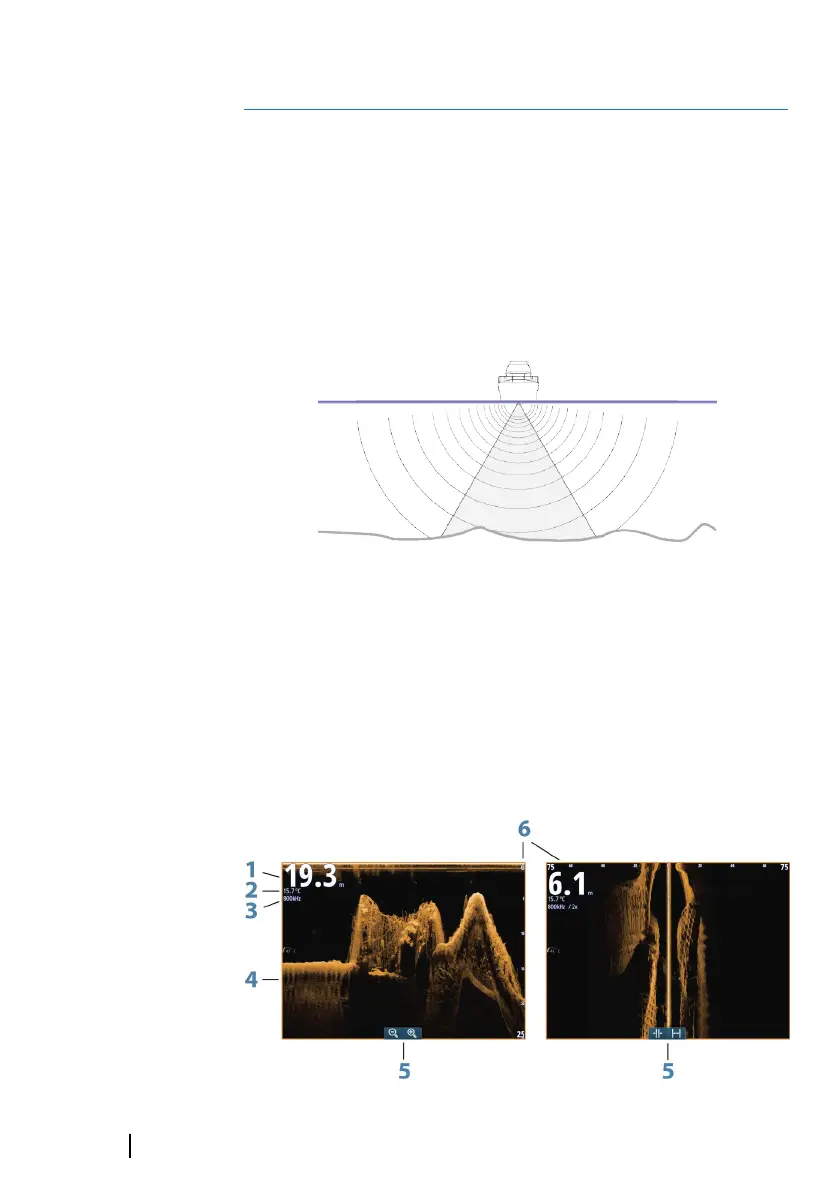

The StructureScan image
The view
The StructureScan panel can be set up as a DownScan image, or
showing left/right side scanning.
The DownScan image can also be added as an overlay to the
traditional Echosounder image.
11
126
StructureScan | GO XSE Operator Manual

Simrad GO XSE Specifications

General

GPS	Yes
Chartplotter	Yes
NMEA 2000	Yes
Wi-Fi	Yes
Bluetooth	Yes
Waterproof Rating	IPX7
Operating Voltage	12V DC
Sonar	Yes (built-in)
Cartography	C-MAP, Navionics
Mounting Type	Bracket or Flush Mount
Screen Size	7-inch, 9-inch
Screen Resolution	800 x 480 pixels
