ForwardScan setup

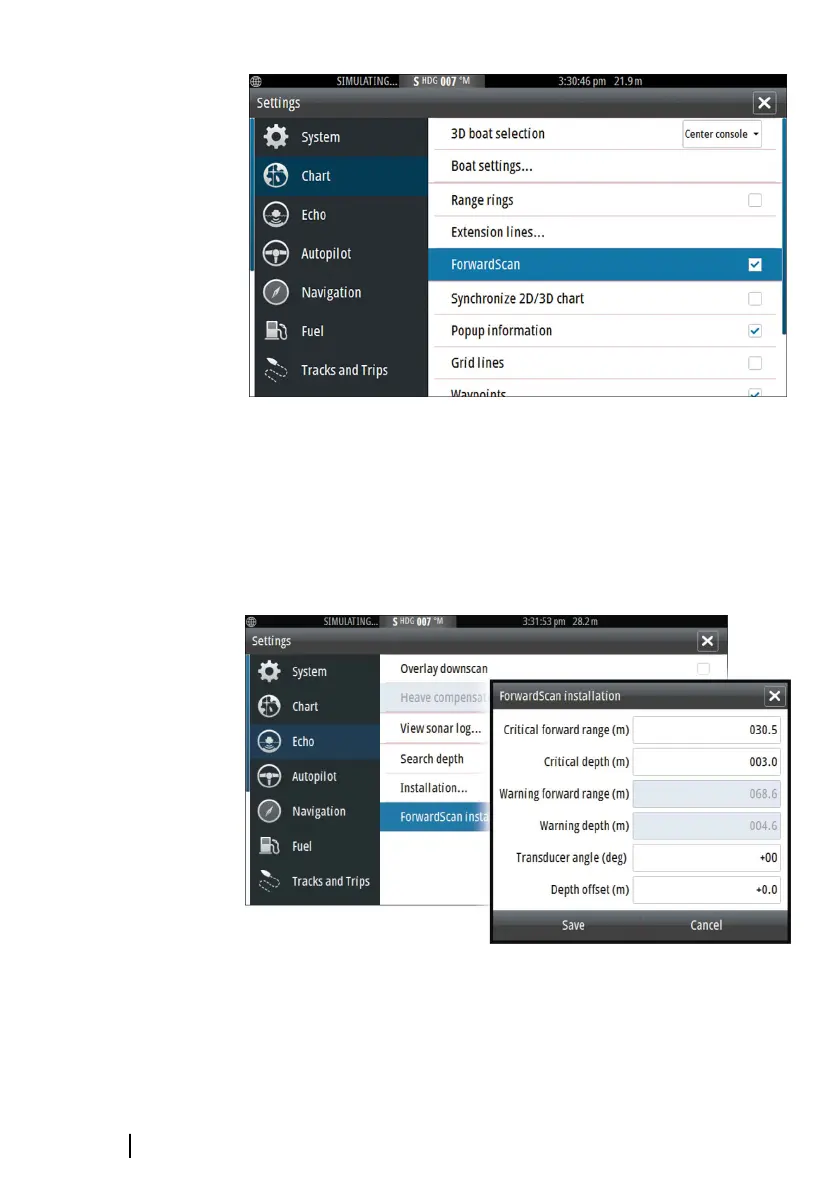

Specify the setup in the ForwardScan installation dialog.

Critical forward range and Critical depth

Critical Forward Range and Critical Depth are user-selected

thresholds that define a critical zone forward of your vessel.

140
