Instrument panels
The Instruments panels consist of multiple gauges - analog, digital
and bar - that can be customized to display selected data. The
Instruments panel displays data on dashboards, and you can define
up to ten dashboards within the Instruments panel.
Ú
Note: To include fuel/engine information, engine and tank
information has to be configured from the Settings panel.
Dashboards
A set of dashboard styles are predefined to display vessel,
navigation, and angler information.
You switch between the panel’s dashboards by selecting the left
and right arrow buttons on the panel. You can also select the
dashboard from the menu.

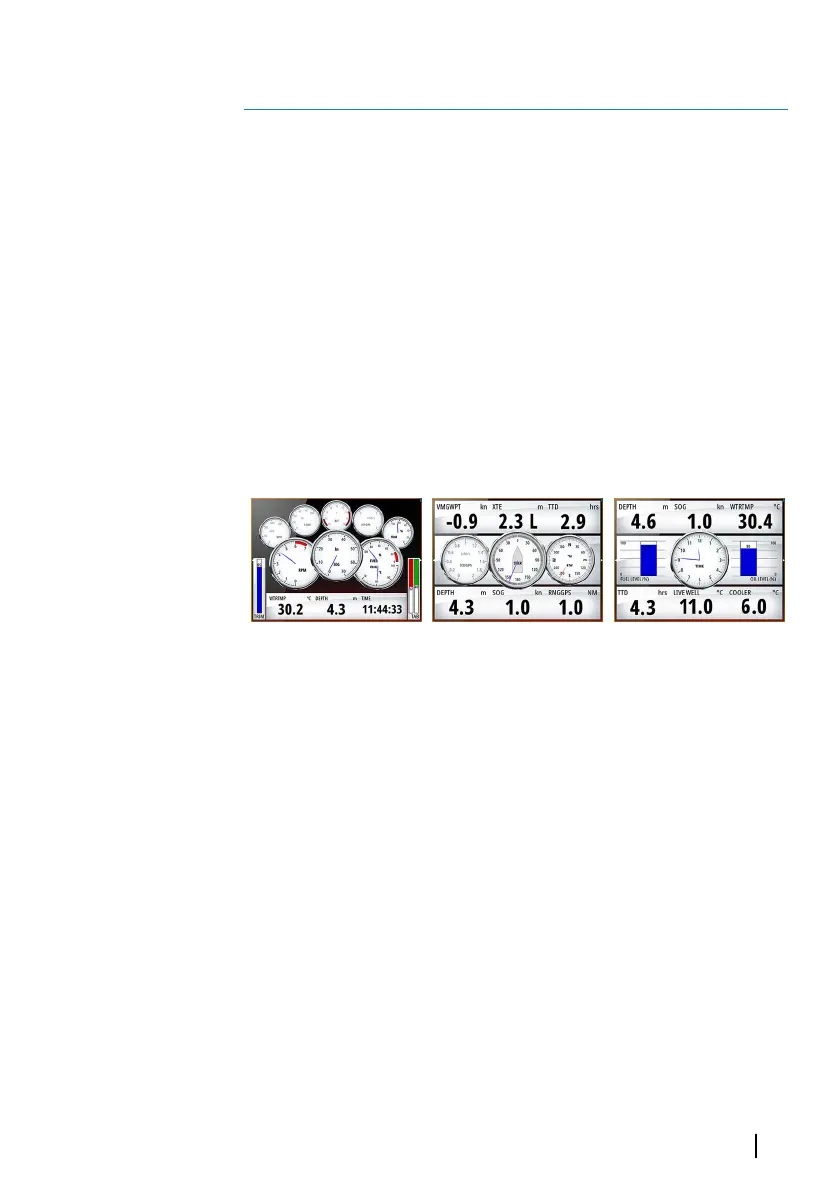

Vessel dashboard Navigation dashboard Angler dashboard
Ú
Note: Additional dashboards can be activated from the menu if
other systems (e.g. CZone) are present on the network.
Customizing the Instruments panel
You can customize the Instruments panel by changing the data for
each of the gauges in the dashboard, by changing the dashboard
layout, and by adding new dashboards. You can also set limits for
analog gauges.
All edit options are available from the Instruments panel menu.
Available editing options depend on which data sources are
connected to your system.
16
Instrument panels | GO XSE Operator Manual
