8 Menu
Panel specific menu.
Display the menu by selecting the MENU panel button.
Control bar
Displays buttons for features that are available on the unit. Select a
Control bar button to open the controller for the feature. Selecting
the same button closes the open controller. Selecting a different
Control bar button closes the open controller and opens the
selected controller.
Split pages
On each page you can have up to 2 panels on 5" units and up to 4
panels on larger units.

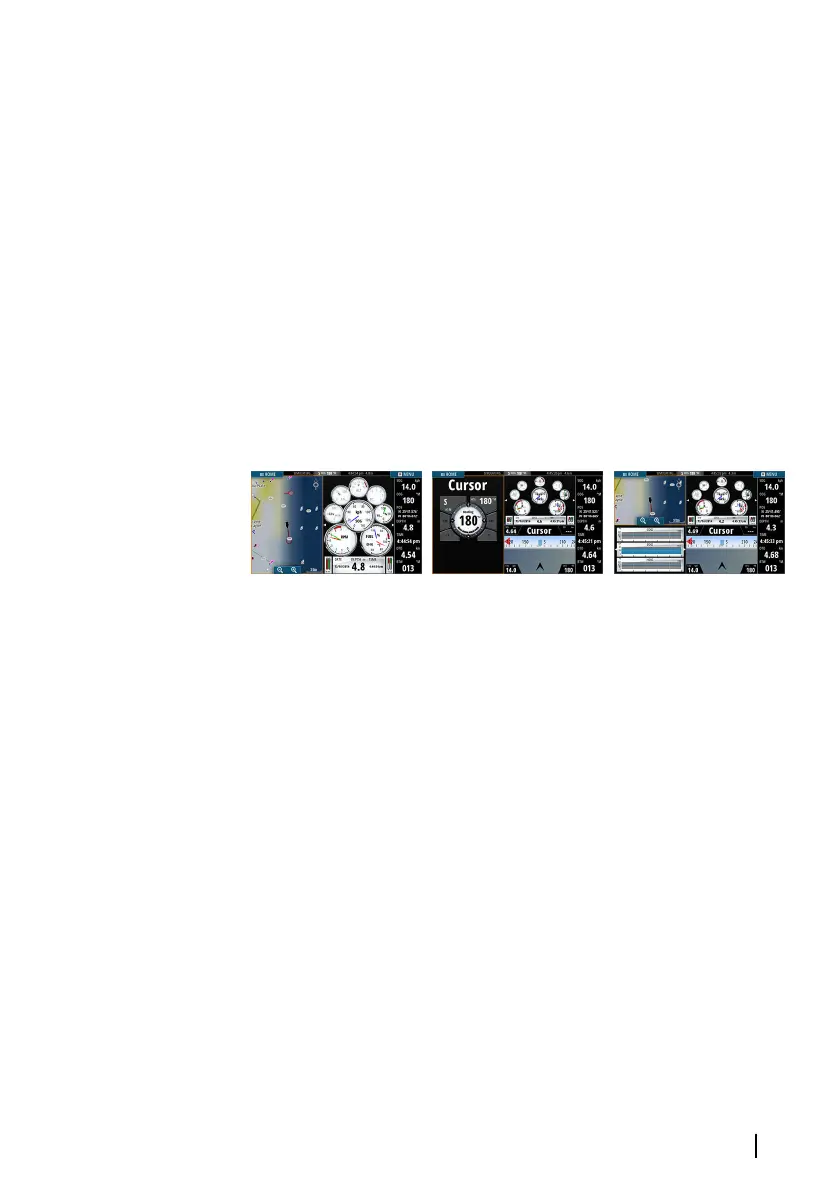

2 panels page 3 panels page 4 panels page
Panel sizes in a split page can be adjusted from the System
Controls dialog.
Using the cursor on a split screen
When using the cursor on the sonar or structure image on a sonar/
structure or sonar/chart split screen, the cursor is shadowed on the
other split screen.
Pre-configured split pages
Each full screen application has several pre-configured split pages,
featuring the selected application combined with each of the other
panels.
Ú
Note: The number of pre-configured split pages cannot be
changed, and the pages cannot be customized or deleted.
Access a pre-configured split page by pressing and holding the
main panel button.
Introduction | GO XSE Operator Manual
17

Simrad GO XSE Specifications

General

GPS	Yes
Chartplotter	Yes
NMEA 2000	Yes
Wi-Fi	Yes
Bluetooth	Yes
Waterproof Rating	IPX7
Operating Voltage	12V DC
Sonar	Yes (built-in)
Cartography	C-MAP, Navionics
Mounting Type	Bracket or Flush Mount
Screen Size	7-inch, 9-inch
Screen Resolution	800 x 480 pixels
