4 Bearing to next routepoint
5 Bearing line with allowed off course limit
When travelling on a route the bearing line shows the
intended course from one waypoint towards the next.
When navigating towards a waypoint (cursor position, MOB
or an entered lat/lon position), the bearing line shows the
intended course from the point at which navigation was
started towards the waypoint.
6 Vessel symbol
Indicates distance and bearing relative to the intended
course.
If the XTE (Cross Track Error) exceeds the defined XTE limit,
this is indicated with a red arrow including the distance
from the track line. Refer to "XTE limit" on page 67.
Position panels
You can switch between displaying the Nav panel or the Position
panel. The Position panel is activated from the menu.
By default, there is one position panel available showing GPS
position.
If Loran is enabled, there are two position panels. This is indicated
with arrow symbols on left and right side of the panel.
You toggle between the panels by selecting the left or right arrow
symbols, or by using the arrow keys.

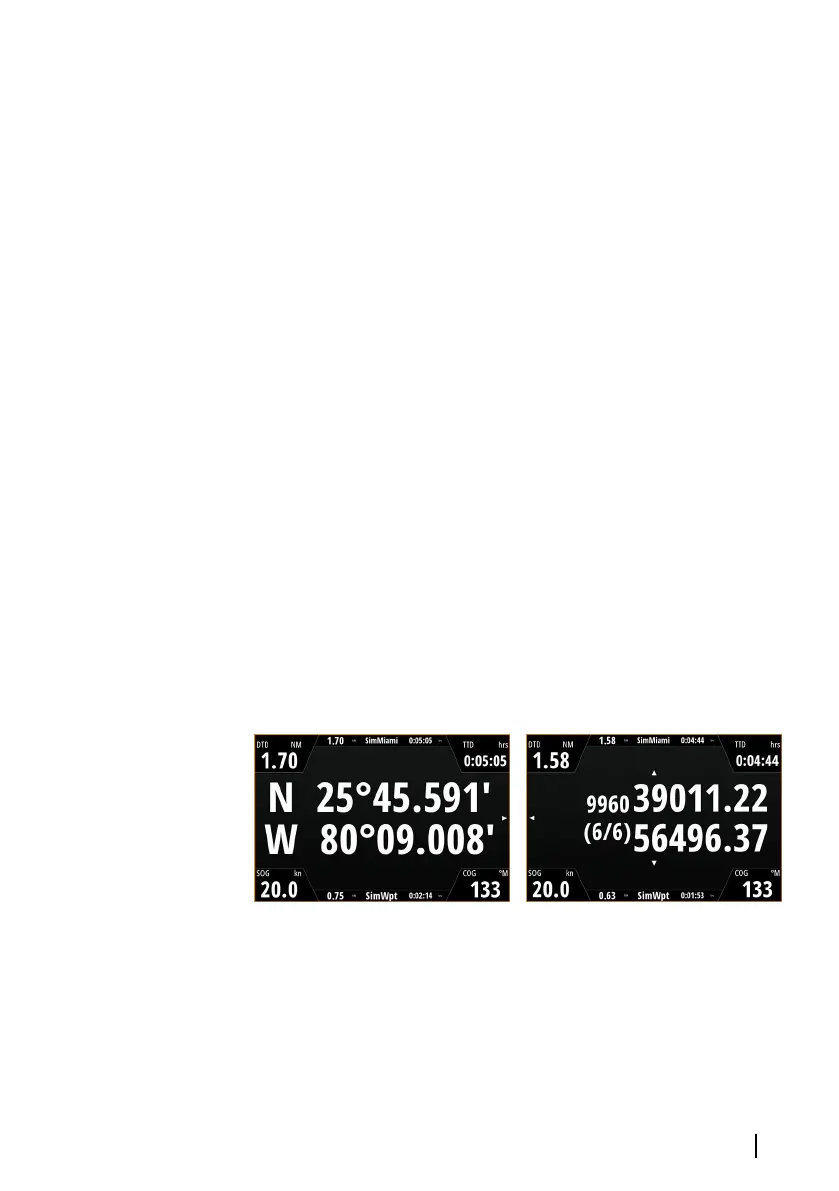

GPS position info Loran position info
Navigating | GO XSE Operator Manual
65
