6.5.8 Mains cable holder
6.5.9 Adapter sleeves for patient lifting pole/infusion stand (optional)
1 Pull the linen holder out from under the mat-
tress base with a slight jerk.
2 A gallery rail is attached to the linen
holder. If necessary, raise the gallery
rail to an upright position. This helps to
hold the bedding in place.
The mains cable holder [1] is attached to the mains cable.

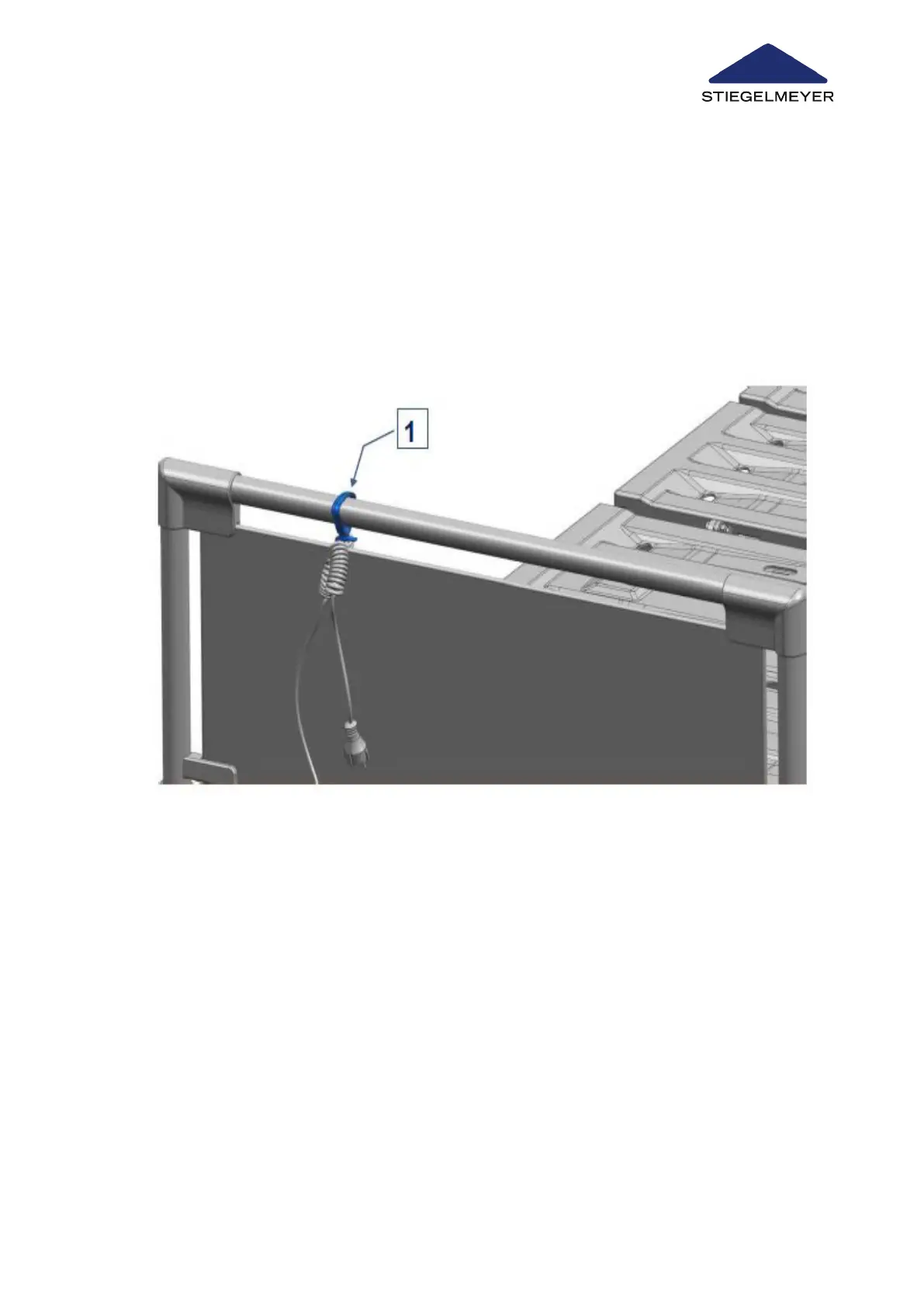

Image8:
Mains cable holder attached to the headboard
Hook the mains cable holder [1] onto the headboard before moving the bed to prevent the
mains cable from being driven over, crushed or torn off.
On the outside and the middle of the head end, adapter sleeves can be attached for a patient
lifting pole [a] and for two infusion stands [b].
Product description
Instruction Manual 36
