Automatic lift cut out (variant)
The automatic lift cut out (variant) means
that the load cannot be lifted above a certain
height. This height is predefined by a sensor
on the lift mast and cannot be changed at a
later date.
NOTE
If a load is lifted very quickly, the fork carriage
and load are moved to a position approxima-
tely 15 cm above the sensor due to inertia.
This deviation is already taken into conside-
ration at the factory when determining the
position of the sensor.
Free lift/main lift cut out

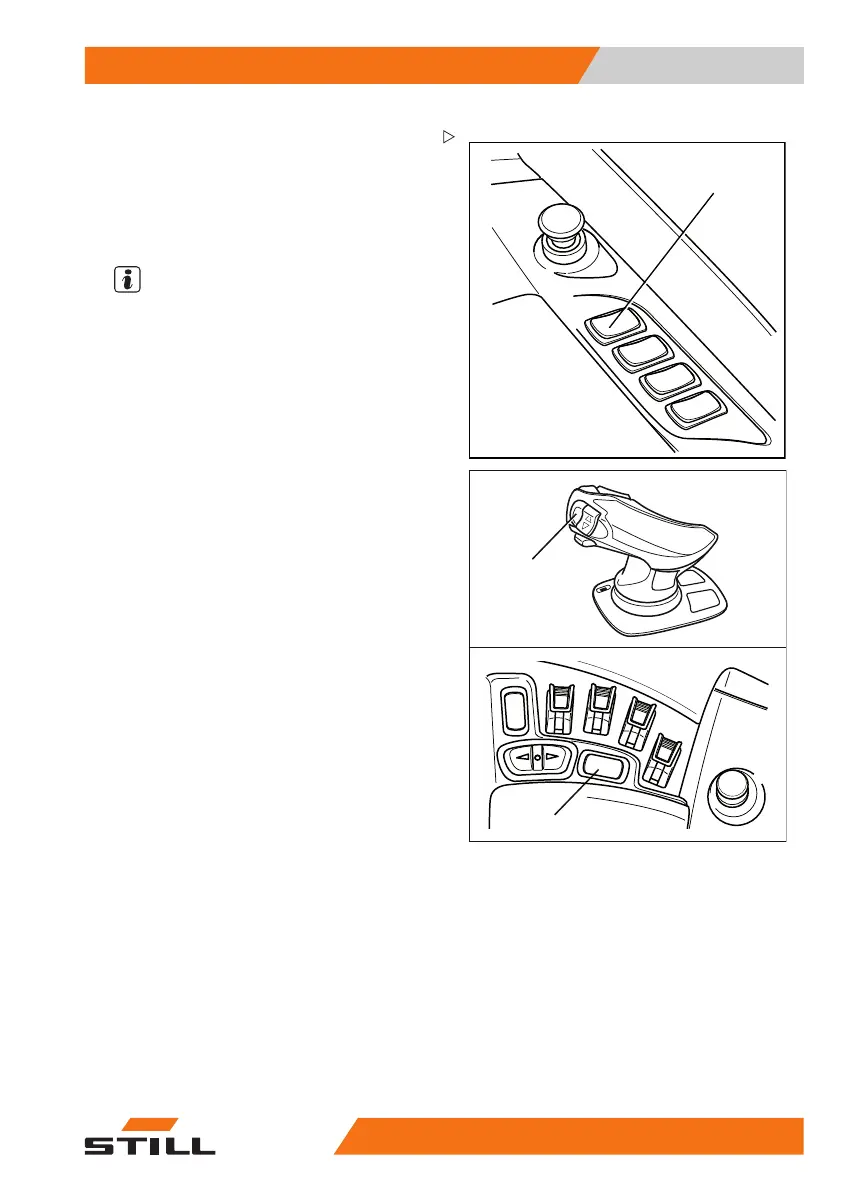

If the truck is frequently used for stacking at
a particular height, working at this height is
simplified by the automatic lift cut out. The
driver can override the lift cut out by pressing
the acknowledge button (1) or by pressing shift
button "F" (2). If the sensor on the lift mast is
passed again, the lift cut out is reactivated.
Overriding the lift cut out by pressing the
acknowledge button:
• Press the acknowledg
e button (1) to over-
ride the cut out.
Overriding the lift
cut out by pressing shift "F":
• Move the joystick or the relevant fingertip
switch to the zero position. Within one
second press shift button "F" (2) and release
it again to override the cut out.
If shift button "F" is not pressed within one
second and then released, the default
function of the shift button is restored
automatically.
Lift cut-out limit stop
If the ceiling of t
he building is lower than
the maximum lift h
eight of the truck, the lift
cut-out limit sto
p prevents the lift mast from
accidentally hit
ting the ceiling. The lift cut-out
limit stop cannot
be overridden by the driver.
