5 Operation
Lifting

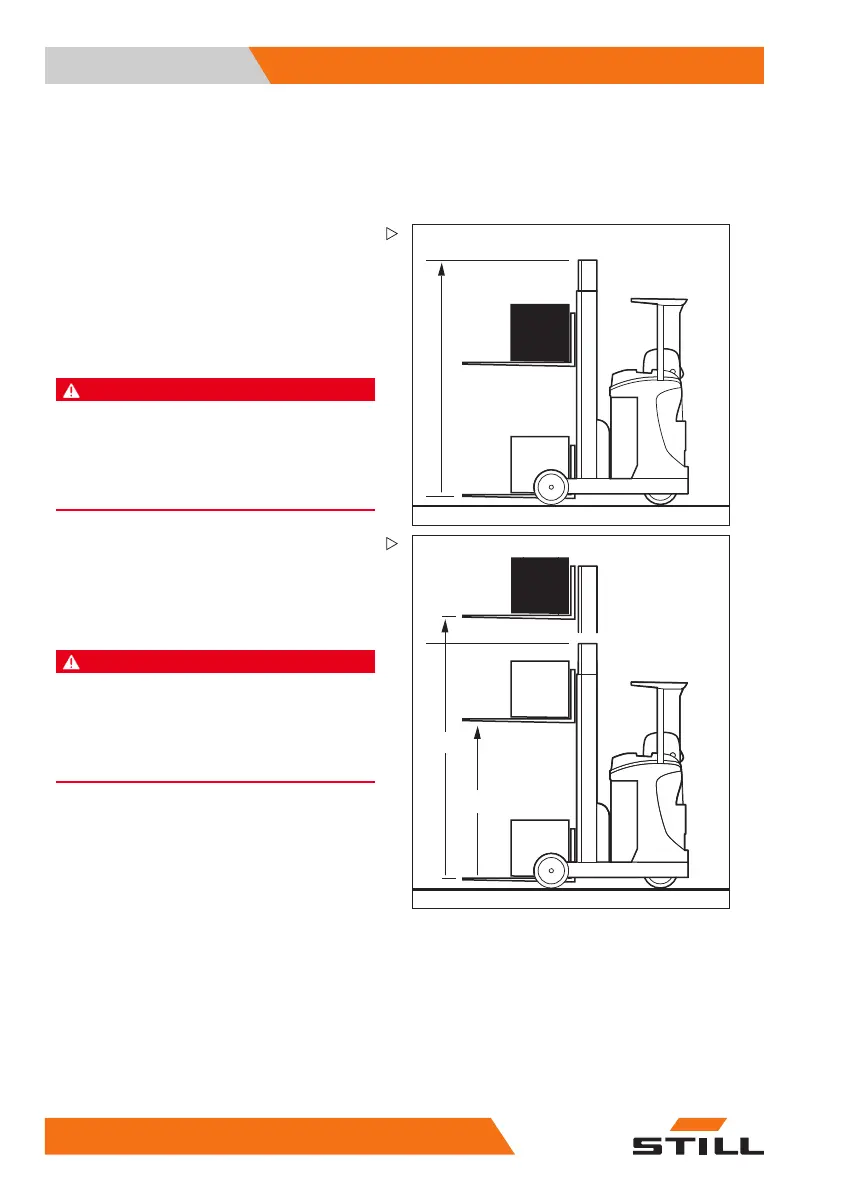

Lift mast versions
One of the following lift masts may be installed
in the truck:
1
Telescopic lift mast
During lifting, the lift mast rises above the outer
lift cylinders, bringing the fork carriage with it
via the chains (fork carriage rises twice as fast
as the inner lift mast). The top edge (1) of the
inner lift mast can therefore be higher than the
fork carriage.
DANGER
Risk of accident due to collision of the lift mast or
load with low ceilings or entrances.
– Note that the inner lift mast or load may be higher
than the fork carriage.
– Note the heights of ceilings and entrances.
3
2
Triplex lift mast (variant)
During lifting, the inner lift cylinder raises the
fork carriage up to the free lift (2) and then
the outer lift cylinders raise the inner lift mast
straight up to the max. height (3).
DANGER
Risk of accident due to collision of the lift mast or
load with low ceilings or entrances.
– Note that the inner lift mast or load may be higher
than the fork carriage.
– Note the heights of ceilings and entrances.
10
6 50988078001 [EN]
