5 Operation
Lifting
1

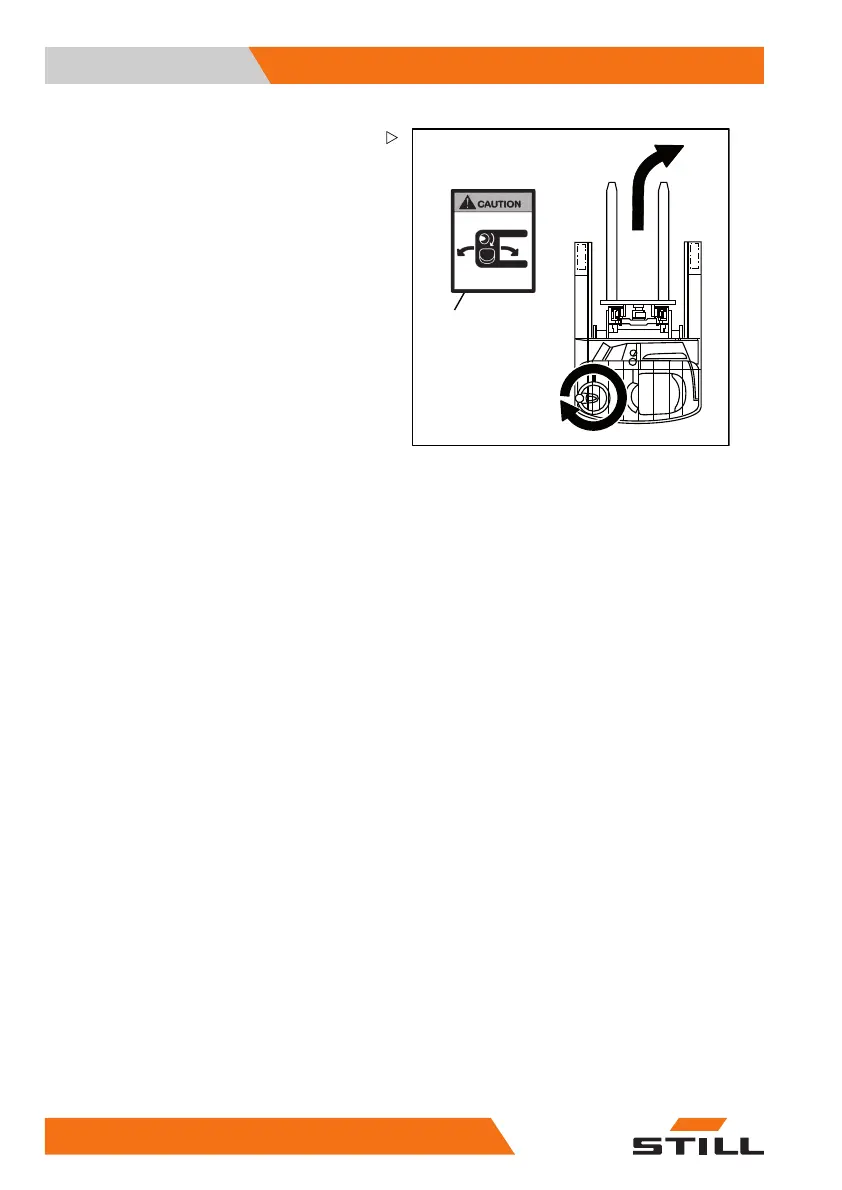

Reverse steering (variant)
If the steering wheel is turned clockwise when
travelling in the load direction, the truck will
move to the right. If the steering wheel is
turned anticlockwise when travelling in the
load direction, the truck will move to the left.
Trucks with reverse steerin
g are marked with
an adhesive label (1) next to
the steering
wheel adjustment mechanism
.
Lifting
Lifting system variants
The movement of the fork carriage and the
lift mast heavily depends on the following
equipment:
• The lift mast fitted on the truck; see the
chapter entitled "Lift mast versions"
• The operating device that is used to control
the hydraulic functions; see the chapter
entitled "Lifting system operating devices"
Regardless of the equipment variants of the
truck, the basic specifications and procedures
must be observed; see the chapter entitled
"Safety regulations for working with loads".
10
2 50988078001 [EN]
