Electrical driver’s compartment
adjustment (variant)
WARNING
Risk of accident, risk of crushing
The pedal plate and seat console move during
adjustment.
– Change settings only when the truck is at a
standstill.
– Keepyour fingers away from moving parts during
adjustment of the driver’s compartment. For
safety, place your right hand on the joystick and
operate the rocker switch with your left hand.
– Make sure that there are no objects in the vicinity
of the moving parts. They could become trapped
and damage the mechanics. Only remove
trapped objects when adjustment of the driver’s
compartment has stopped.
CAUTION
Risk of component damage.
Adjustment of the driver’s compartment must
be carried out in the seated position by persons
weighing a maximum of 150 kg only.
– Observe the total permissible weight during
adjustment of the driver’s compartment.
The electrical driver’s compartment adjust-
ment, together with the seat and steering
column adjustment, is a system that allows the
driver’s compartment to be adapted as effec-
tively as possible. The position of the driver’s
seat and the pedal plate can be adjusted to-
gether electrically to suit the size of the driver.
NOTE

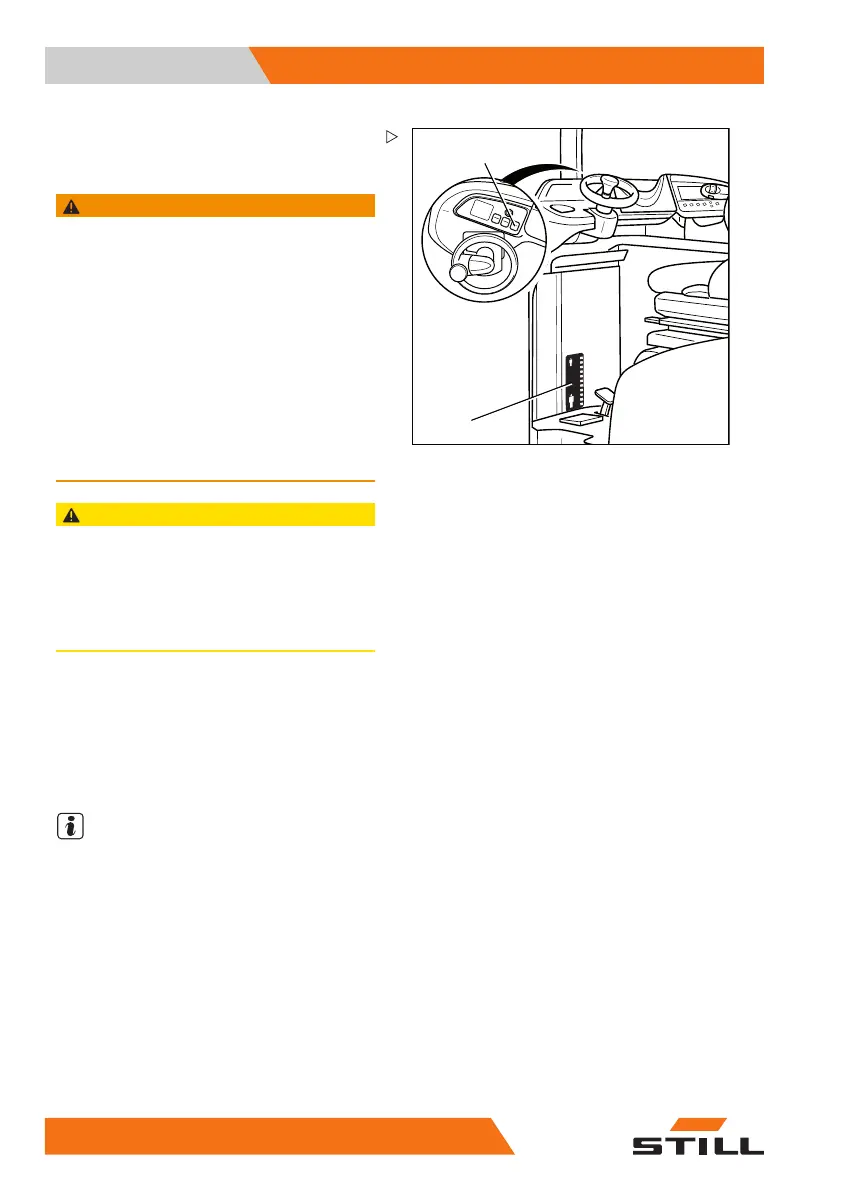

– Press the rocker switch (1) in the operating
panel up or down until the optimum working
position is reached.
A scale (2) in the footwell of the driver’s
compartment gives an indication of the setting
to help you remember it.
