Operation 5

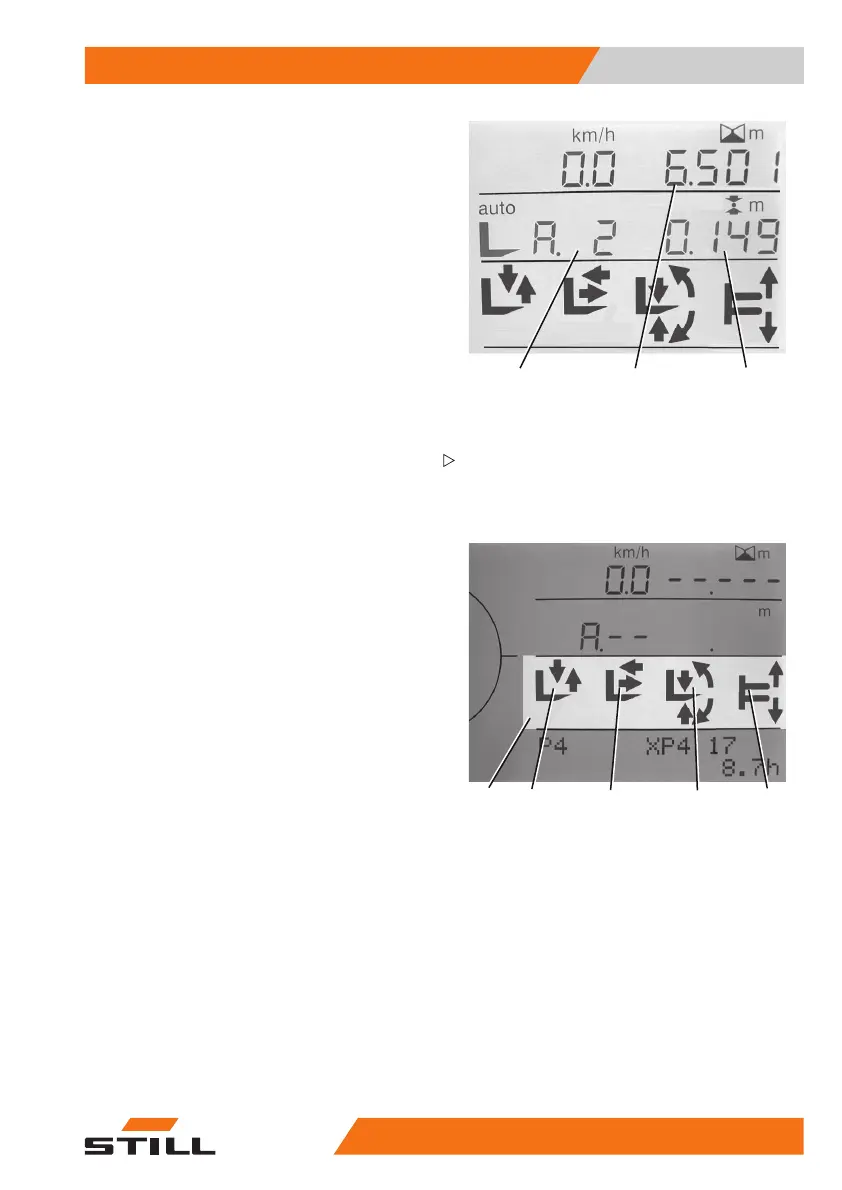

Lift height preselector (variant)
123
1 Level 1-20
2 Area A-H
56 97 8
Definition of terms
Level
One target height can be assigned to each
level. Valid levels can be reached semi-
automatically.
Area
A warehouse can be divided into eight areas
and each area can contain up to 20 levels.
Placing into stock
Placing into stock (3) is the insertion of a pallet
into the rack.
Removing from stock
Removing from stock (4) is the removal of a
pallet from the rack.
Assistant
The display includes an assistant (5) that
shows the possible movements via symbols
and corresponding direction arrows. During
automatic operation, the display shows only
the direction arrows for function symbols that
are currently allowed.
The individual symbols mean:
• Main lift lowering/lifting (6)
• Shift to drive side/load side (7)
• Tilt to drive side/load side (8)
• Transition shift left/right (9)
50
988078001 [EN] 157
