5 Operation
Handling the battery
1

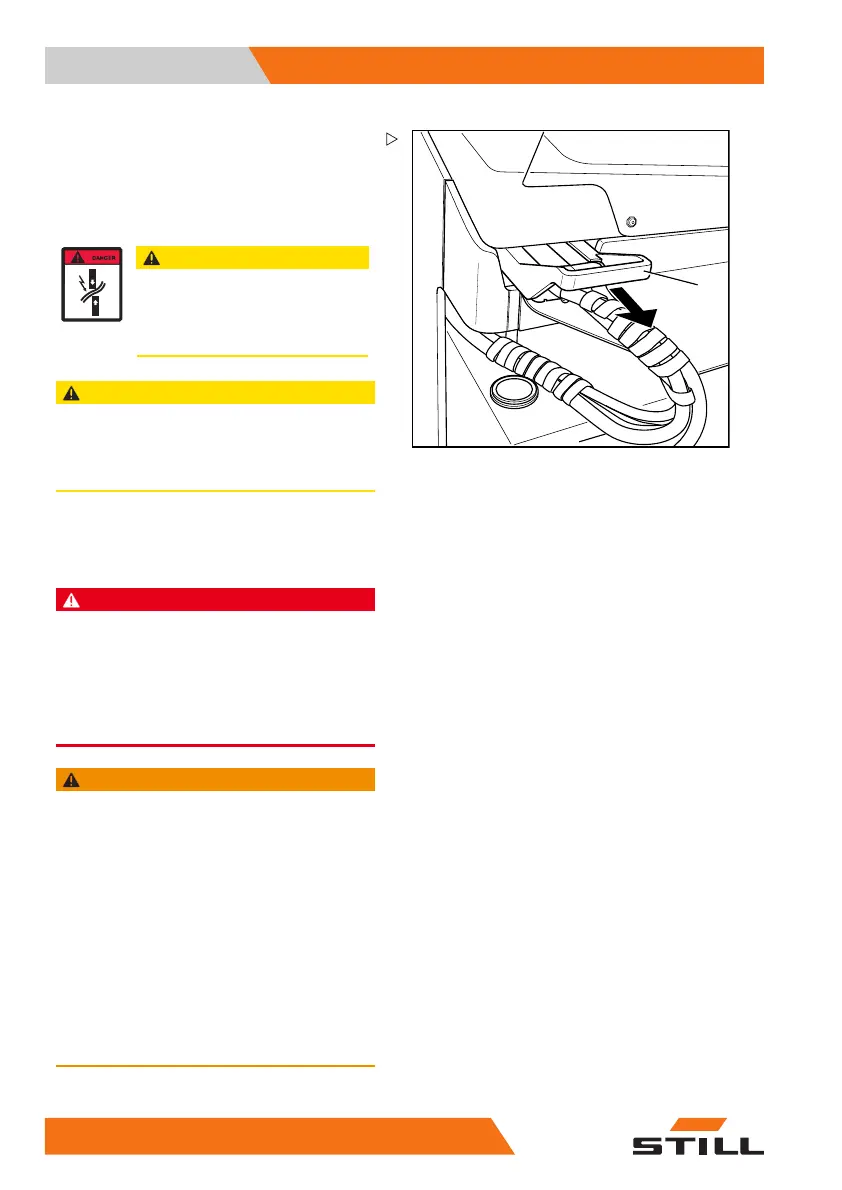

– Disconnect the battery male connector (1)
from the plug connection by pulling in the
direction of the arrow.
– Place the battery male connector on the
battery.
CAUTION
There is a risk of short circuit if the
cables are damaged.
– Check the connection cables for
damage.
CAUTION
Risk of damage!
– Position the battery cable on the battery in such
a way that it cannot be crushed when removing
or inserting the battery.
Battery replacement using a crane
DANGER
The battery weight and its dimensions affect the
stability of the truck.
When replacing the battery, the weight ratios
must not be changed. The battery weight must
remain within the weight range specified on the
nameplate. The location of ballast weights must not
be changed.
WARNING
Risk of crushing if the battery falls out.
Releasing the battery lock, as described below,
may only be carried out on horizontal, level ground
using suitable devices.
Suitable devices include:
– A crane and suitable harnesses
– A stationary or mobile battery change frame.
You should also refer to the operating instructi-
ons for the battery change frame
– A suitable forklift truck with sufficient load
capacity
The battery lock lever may be actuated only when
the truck is stationary and the reach carriage is fully
retracted.
20
0 50988078001 [EN]
