Operation 5
Handling loads

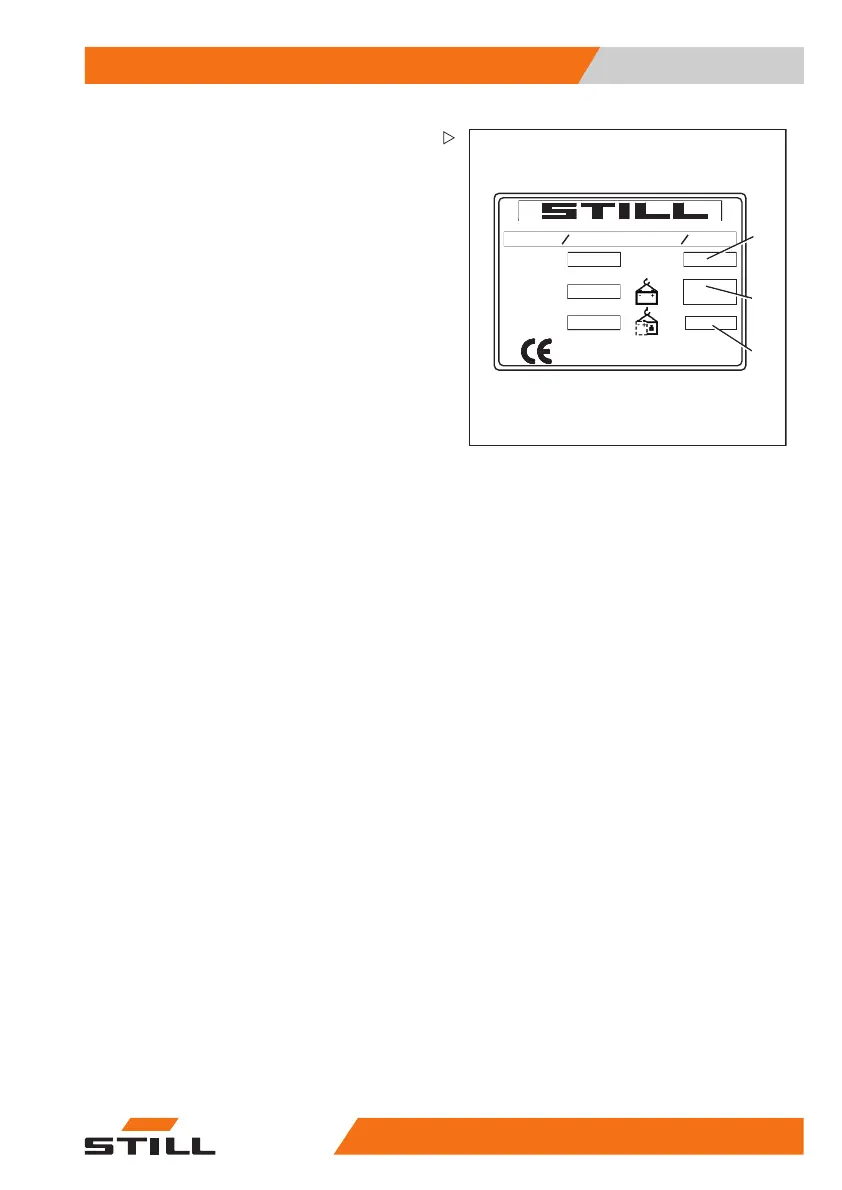

Type-Modèle-Typ / Serial no.-No. de série-Serien-Nr. / year-année-Baujahr
Rated capacity
Capacité nominale
Nenn-Tragfähigkeit
Battery voltage
Tension batterie
Batteriespannung
Rated drive power
Puissance motr.nom.
Nenn-Antriebsleist.
Unladen mass
Masse à vide
Leergewicht
max
min.*
* see Operating instructions
voir Mode d'emploi
siehe Betriebsanleitung
kg
kg
kg
kg
kg
kW
V
*
1
3
2
6210_001-016_V2
Determining the total actual weight
– Park the truck securely.
– Determine the unit weights by r
eading the
truck nameplate and, if necess
ary, the
attachment (variant) namepla
te and, if
necessary, by weighing the loa
dtobelifted.
– Add the determined unit weights to obtain
the total actual weight of the truck:
Tare weight (1)
+
Max. permissible battery we
ight (2)
+
Ballast weight (variant) (3)
+
Attachment net weight (variant)
+
Weight of the load to be lifted
+
100 kg allowance for driver
=
Total actual weight
– Drive the truck with the forks forwards into
the lift without touching the shaft walls.
– Park the truck securely in the lift to prevent
uncontrolled movements of the load or the
truck.
